Product Details

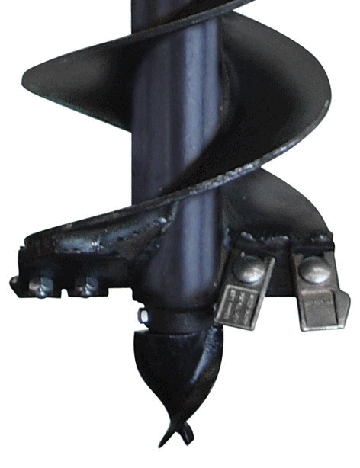

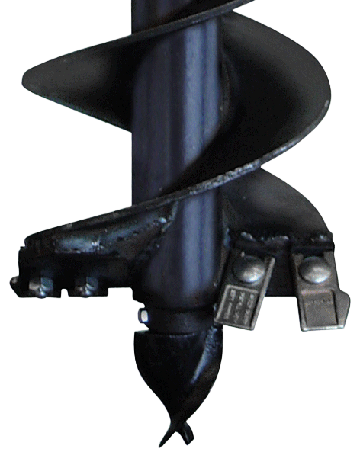

Download BrochureHeavy Duty Bits
- Moderate ground conditions
- Fabricated boring head
- Hardened bolt on teeth
- Hardened fishtail point
- 4′ standard length
- Heavy Duty double flighting

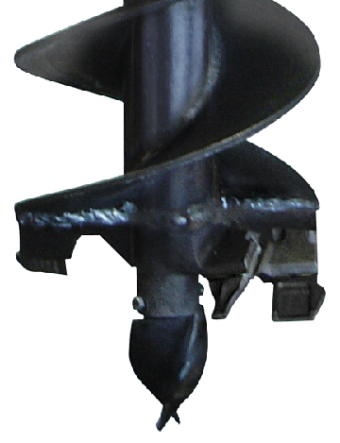

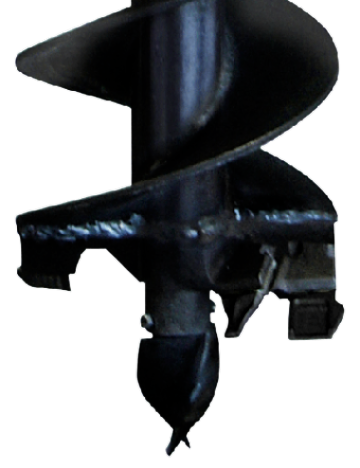

Heavy Duty Bits with Cast Head
- Difficult ground conditions, heavy clay, frozen ground, fracturable rock, asphalt and compacted soils
- Cast steel boring head
- Hardened drive-in teeth
- Hardened fishtail point
- 4′ standard length
- Heavy Duty double flighting
- Carbide teeth available

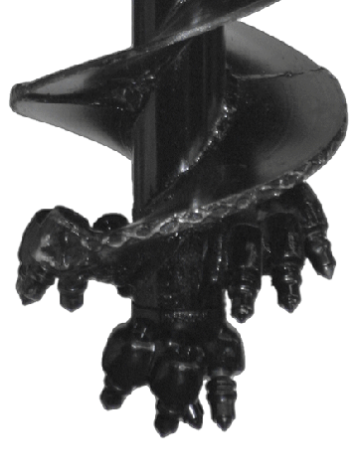

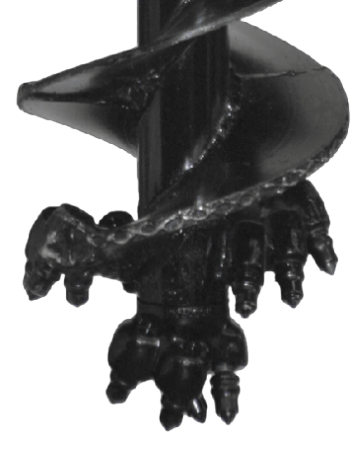

Rock Bits
REQUIRES MINIMUM DOWN PRESSURE OF 3000 LBS TO WORK WELL
- Solid rock and concrete
- Cast tooth pockets
- Drive-in carbide bullet teeth
- ¾” thick boring head
- 4’ standard length
- Will not work for dirt

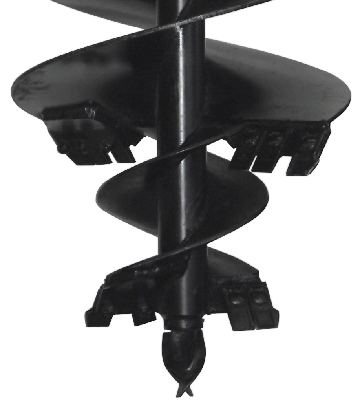

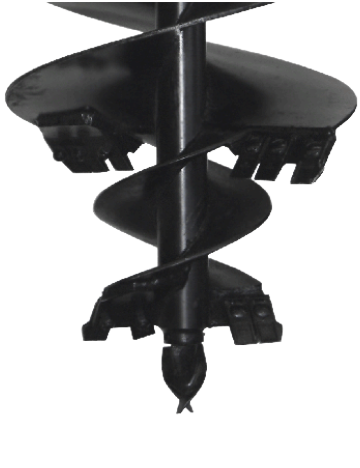

Tree Bits
- Tapered version of Heavy Duty bit
* OUR STANDARD COLLAR IS 2” HEX WITH 2” ROUND AND 2 9/16” ROUND BEING AVAILABLE UPON REQUEST. ADAPTERS ARE ALSO AVAILABLE TO MOUNT OUR BITS TO OTHER DRIVE UNITS.
EXTENSIONS ARE AVAILABLE IN 2′, 4′ AND 6′ LENGTHS. THE VARIABLE OPTION HAS A HOLE EVERY 12″ FOR USE IN MULTIPLE POSITIONS (WORKS ON 10″ AND BIGGER BITS ONLY) AND THE FIXED IS A SOLID SHAFT. THE FIXED STYLE IS RECOMMENDED IF THE APPLICATION IS VERY STRENUOUS OR WHEN USING HIGH PRESSURE DRIVE UNITS.
| Part Number | Model | Weight |
|---|---|---|
| Part NumberHEAVY DUTY BITS | Model- | Weight- |
| Part Number105105 | Model4" Diameter, Heavy Duty, W/2" Hex | Weight37 lbs |
| Part Number105110 | Model6" Diameter, Heavy Duty, W/2" Hex | Weight45 lbs |
| Part Number105115 | Model8" Diameter, Heavy Duty, W/2" Hex | Weight76 lbs |
| Part Number105120 | Model9" Diameter, Heavy Duty, W/2" Hex | Weight85 lbs |
| Part Number105125 | Model10" Diameter, Heavy Duty, W/2" Hex | Weight100 lbs |
| Part Number105130 | Model12" Diameter, Heavy Duty, W/2" Hex | Weight113 lbs |
| Part Number105135 | Model15" Diameter, Heavy Duty, W/2" Hex | Weight132 lbs |
| Part Number105140 | Model16" Diameter, Heavy Duty, W/2" Hex | Weight136 lbs |
| Part Number105145 | Model18" Diameter, Heavy Duty, W/2" Hex | Weight166 lbs |
| Part Number105147 | Model20" Diameter, Heavy Duty, W/2" Hex | Weight182 lbs |
| Part Number105150 | Model24" Diameter, Heavy Duty, W/2" Hex | Weight210 lbs |
| Part Number105155 | Model30" Diameter, Heavy Duty, W/2" Hex | Weight278 lbs |
| Part Number105160 | Model36" Diameter, Heavy Duty, W/2" Hex | Weight372 lbs |
| Part NumberHEAVY DUTY WITH CAST HEAD BITS | Model- | Weight- |
| Part Number105205 | Model6" Diameter, Heavy Duty, W/2" Hex | Weight45 lbs |
| Part Number105208 | Model8" Diameter, Cast Head, W/2" Hex | Weight90 lbs |
| Part Number105210 | Model9" Diameter, Cast Head, W/2" Hex | Weight98 lbs |
| Part Number105215 | Model10" Diameter, Cast Head, W/2" Hex | Weight113 lbs |
| Part Number105220 | Model12" Diameter, Cast Head, W/2" Hex | Weight128 lbs |
| Part Number105225 | Model15" Diameter, Cast Head, W/2" Hex | Weight139 lbs |
| Part Number105230 | Model16" Diameter, Cast Head, W/2" Hex | Weight167 lbs |
| Part Number105235 | Model18" Diameter, Cast Head, W/2" Hex | Weight204 lbs |
| Part Number105237 | Model20" Diameter, Cast Head, W/2" Hex | Weight231 lbs |
| Part Number105239 | Model24" Diameter, Cast Head, W/2" Hex | Weight272 lbs |
| Part Number105241 | Model30" Diameter, Cast Head, W/2" Hex | Weight312 lbs |
| Part Number105243 | Model36" Diameter, Cast Head, W/2" Hex | Weight430 lbs |
| Part Number105245 | Model42" Diameter, Cast Head, W/2" Hex | Weight460 lbs |
| Part Number105250 | Model48" Diameter, Cast Head, W/2" Hex | Weight550 lbs |
| Part NumberROCK BITS | Model- | Weight- |
| Part Number105305 | Model4" Diameter, Heavy Duty, W/2" Hex | Weight70 lbs |
| Part Number105310 | Model6" Diameter, Heavy Duty, W/2" Hex | Weight66 lbs |
| Part Number105320 | Model9" Diameter, Rock, W/2" Hex | Weight102 lbs |
| Part Number105330 | Model12" Diameter, Rock, W/2" Hex | Weight134 lbs |
| Part Number105340 | Model16" Diameter, Rock, W/2" Hex | Weight203 lbs |
| Part Number105345 | Model18" Diameter, Rock, W/2" Hex | Weight201 lbs |
| Part Number105350 | Model24" Diameter, Rock, W/2" Hex | Weight291 lbs |
| Part Number105355 | Model30" Diameter, Rock, W/2" Hex | Weight340 lbs |
| Part Number105360 | Model36" Diameter, Rock, W/2" Hex | Weight395 lbs |
| Part NumberTREE BITS | Model- | Weight- |
| Part Number105405 | Model18-9" Diameter, Tree, W/2" Hex | Weight120 lbs |
| Part Number105410 | Model24-12" Diameter, Tree, W/2" Hex | Weight198 lbs |
| Part Number105415 | Model30-15" Diameter, Tree, W/2" Hex | Weight264 lbs |
| Part Number105420 | Model36-18" Diameter, Tree, W/2" Hex | Weight302 lbs |
| Part Number105425 | Model42-18" Diameter, Tree, W/2" Hex | Weight432 lbs |
| Part Number105430 | Model48-24" Diameter, Tree, W/2" Hex | Weight449 lbs |
