FIND THE RIGHT GRAPPLE BUCKET FOR YOUR SKID STEER

A skid steer grapple bucket combines the material capacity of a traditional bucket with hydraulic clamps that help secure bulky, uneven and irregular loads. It gives operators greater control when moving brush, logs, rocks, storm debris and construction material that can be difficult to handle with a standard bucket alone.

Choosing the right grapple bucket depends on more than width. Machine horsepower, rated operating capacity, attachment weight, grapple opening, construction and intended application should all be considered. Blue Diamond offers three distinct duty levels so operators can match the attachment to the machine and the work being performed.

WHICH BLUE DIAMOND GRAPPLE BUCKET IS RIGHT FOR YOU?

The lineup provides a clear progression. Heavy Duty offers strong grapple performance while keeping attachment weight manageable for smaller machines. HDX steps up machine capacity and hydraulic protection for more demanding work. Severe Duty provides the heavier construction, larger sizes and increased material capacity needed for professional demolition, recycling and industrial applications.

SCOOP. GRAB. CONTROL THE LOAD.

Loose and irregular material can shift or roll out of a standard bucket during transport. Blue Diamond grapple buckets add hydraulic clamping force to help hold material securely against the bucket.

Dual independent grapple clamps can conform to uneven loads, helping maintain control when handling brush piles, logs, rocks and mixed debris. A solid bucket floor also retains smaller material that would otherwise fall through an open grapple or rake.

The result is one versatile attachment that can scoop loose material, grab bulky debris and carry mixed loads around the jobsite.

BUILT AROUND THE WORK YOU DO

Grapple Bucket – Heavy Duty

The Blue Diamond® Heavy Duty Grapple Bucket delivers versatile gripping power for everyday material handling without adding unnecessary attachment weight. Available in 60- and 66-inch widths, it is designed for skid steers and compact loaders up to 65 HP or 2,500 lb lift capacity.

Dual independent clamps help secure uneven loads, while 1/2-inch steel top tines provide strength where the grapple contacts the material. Reinforced cylinder protection, greaseable pivot pins and a punched cutting edge help make it a durable choice for everyday use.

Best for: Landscaping, property maintenance, light construction, storm cleanup, brush and debris handling.

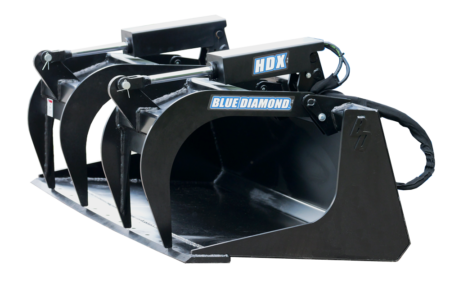

Grapple Bucket – HDX

The Blue Diamond® HDX Grapple Bucket is the next step for operators running larger skid steers and compact track loaders. Its 72-inch width is designed for machines up to 75 HP or 3,000 lb lift capacity, providing additional machine compatibility while maintaining a manageable attachment weight.

Fully welded hydraulic cylinders and upgraded cylinder and hose protection help shield critical components during demanding land-clearing and cleanup work. Dual 1/2-inch clamps and a 32-inch grapple opening provide controlled handling of logs, brush, rocks and bulky debris.

Best for: Land clearing, storm cleanup, logs, brush, agriculture and higher-demand material handling.

Grapple Bucket – Severe Duty

The Blue Diamond® Severe Duty Grapple Bucket is built for high-demand applications including demolition, recycling and industrial material handling. Available in 72-, 78- and 84-inch widths, it combines a 34-inch grapple opening with heavy 3/4-inch steel top tines and dual independent clamps.

Removable bolt-on sides provide additional flexibility when handling long or oversized material, while reinforced cylinder covers and protected hose routing help reduce exposure to jobsite damage. With capacities up to approximately 14 cubic feet, this is the grapple bucket for operators who need strength, capacity and durability for sustained professional use.

Best for: Demolition, recycling, transfer stations, tree work, wood processing and industrial cleanup.

CHOOSE THE RIGHT DUTY LEVEL

Heavy Duty

Best balance of strength and attachment weight

Choose Heavy Duty when you need a versatile grapple bucket for everyday cleanup and material handling on smaller and mid-size skid steers.

HDX

More machine capacity and hydraulic protection

Step up to HDX when you're running a larger skid steer or compact track loader and need additional protection for demanding land-clearing and debris-handling applications.

Severe Duty

Maximum strength for demanding applications

Choose Severe Duty for demolition, recycling, industrial cleanup and applications where heavier materials and repeated high-load cycles require a more robust attachment.

MATCH ATTACHMENT WEIGHT TO YOUR MACHINE

Choosing the heaviest grapple available is not always the best solution. Attachment weight uses part of the skid steer's available lifting capacity, reducing the amount of material the machine can carry.

The Heavy Duty models weigh approximately 675–700 lb, while the 72-inch HDX weighs approximately 700 lb. Severe Duty models increase to approximately 1,179–1,227 lb as construction, width and capacity increase.

Matching the grapple bucket to the carrier's horsepower, rated operating capacity and intended load helps maintain useful lifting performance while providing the durability the job requires.

ONE ATTACHMENT. A LOT OF WORK.

Blue Diamond skid steer grapple buckets are suited for a wide range of applications, including:

• Land clearing — move brush, limbs, logs and vegetation.
• Storm cleanup — control bulky and irregular storm debris.
• Construction cleanup — scoop and secure wood, rocks and jobsite debris.
• Landscaping — move mulch, rocks, brush and general material.
• Tree and wood handling — grab logs, limbs and bulky material.
• Agriculture and property maintenance — clean fence rows, brush piles and farm debris.
• Demolition and recycling — Severe Duty models provide heavier construction for demanding material handling.
