Skid Steer Attachments

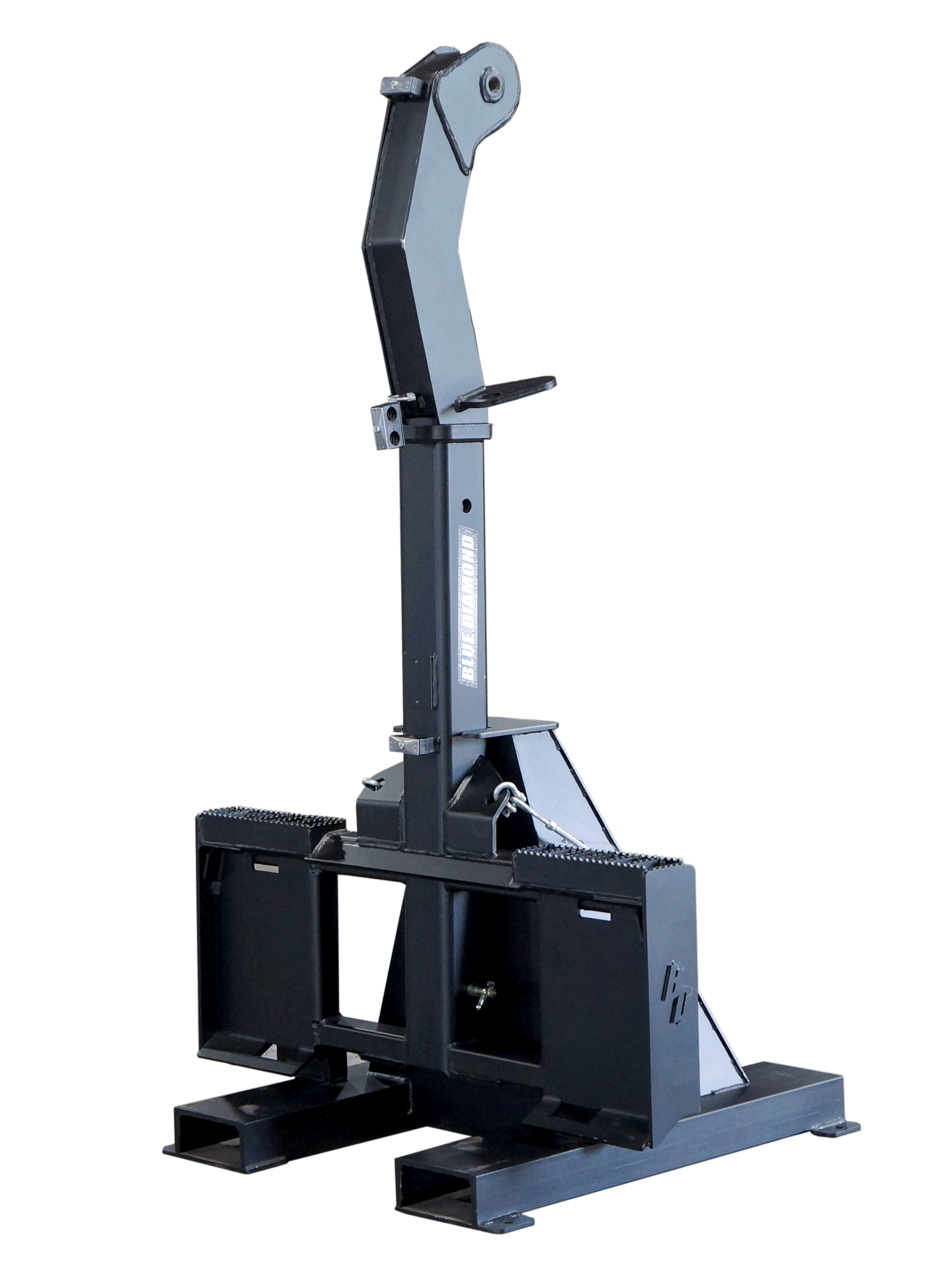

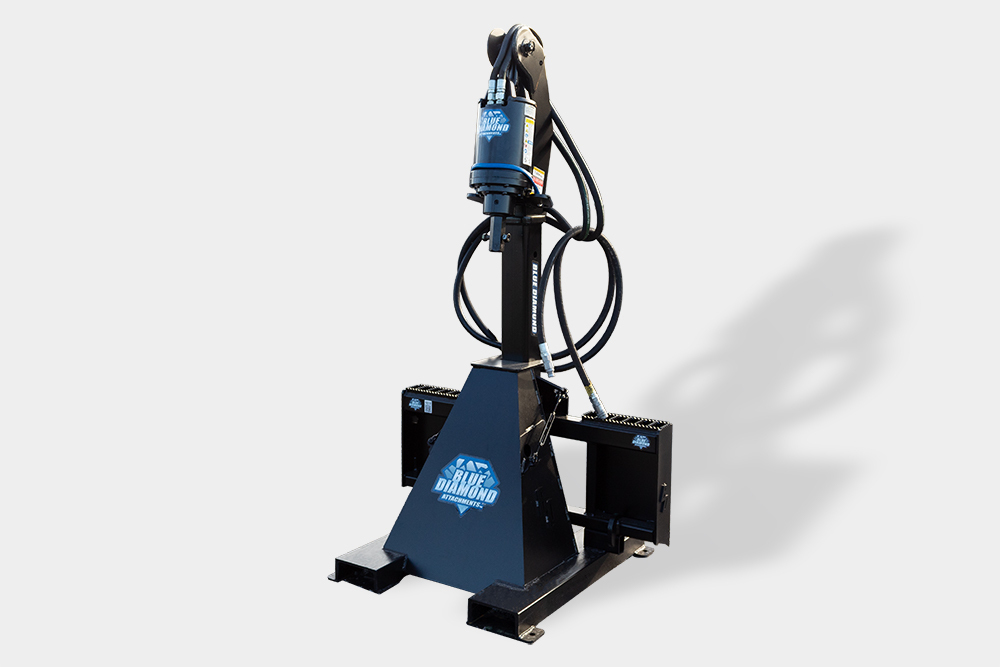

AUGER MOUNT - TELESCOPIC

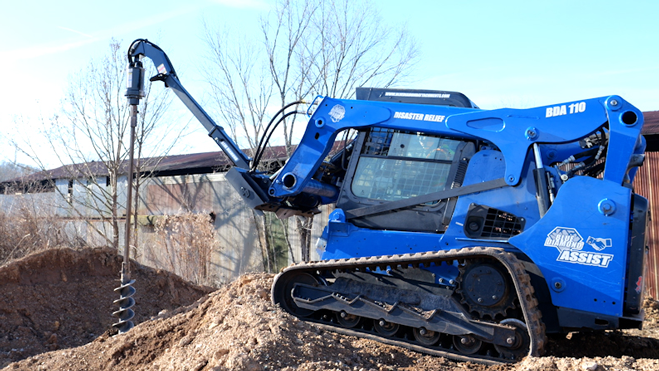

The Blue Diamond® Attachments telescopic auger mount for skid steers offers increased reach for added drilling depth or helical pile installation. These extension mounts use only the highest quality steel and strict quality control. These telescopic extension mounts have a retracted length of 78” and are extendable by 36”. Specifically designed for the Extreme Duty Series 2 auger drive for skid steers and compact track loaders.
Product Details
Download Brochure- 78” retracted length
- Extendable by 36”
- Minimum Skid Steer rated operating capacity 1800 lbs
- Maximum auger drive torque 7000 ft/lbs
- Maximum auger bit weight 220 lbs

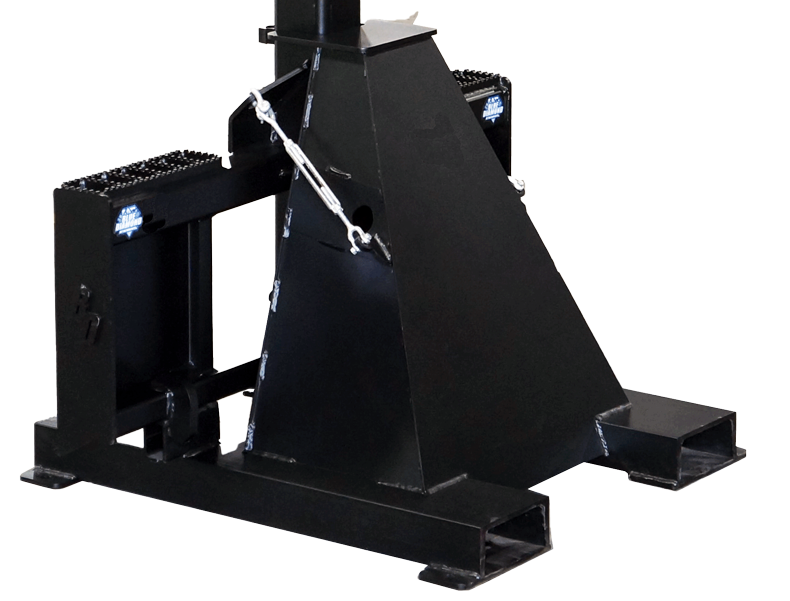

- Optional Transport Stand
- Hose sets have pressure gauge option
- Auger drive, hoses, and stand are not included with mount
Part Number | Model | Weight |
---|---|---|
Part Number105780 | ModelMount | Weight359 lbs |
Part Number105781 | ModelOptional Transport Stand | Weight255 lbs |
Part Number205788 | Model14’ Hose Set 1/2” Couplers | Weight20 lbs |
Part Number205789 | Model14’ Hose Set 3/4” Couplers | Weight20 lbs |
Part Number205790 | Model14’ Hose Set 1/2” Couplers w/ Pressure Gauges | Weight20 lbs |
Part Number205791 | Model14’ Hose Set 3/4” Couplers w/ Pressure Gauges | Weight20 lbs |
