SKID STEER ATTACHMENTS
BRUSH CUTTER – 84″ DUAL MOTOR
The Blue Diamond® 84" Dual Motor Brush Cutter is engineered for contractors, municipalities, farmers, and land managers who demand maximum productivity and professional cutting results. Featuring a floating deck design, dual-spindle blade system, and dual high-torque hydraulic motors, this cutter effortlessly follows uneven terrain while delivering exceptional cutting performance in grass, weeds, and brush up to 3 inches in diameter.
The dual-spindle design utilizes two independent spindle assemblies, each driving two free-swinging forged blades. This proven configuration allows the blades to absorb impact shock when striking rocks, stumps, or other stationary objects, helping protect the drivetrain and extending component life.
Available with two motor configurations, the 84" Dual Motor Brush Cutter can be matched to a wide range of skid steer hydraulic systems while providing reliable performance in demanding operating conditions.
Product Details
Download Brochure- 84" cutting width
- 3" maximum cutting capacity
- Floating deck design for uneven ground
- Dual-spindle cutting system
- Four heat-treated forged swing blades - Replacement Blade Kit (2030284-KIT)

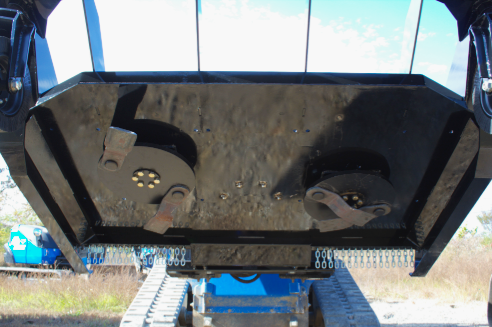

- Two solid 1" thick blade carriers
- Dual high-torque hydraulic motors
- 80CC Motor - Recommended Flow: 15-22 GPM
- 125 CC Motor - Recommended Flow: 23-30 GPM
- Bi-directional cutting (clockwise and counter-clockwise)
- Adjustable front caster wheels
- Integrated heavy-duty push bar
- Four-link rear chain curtains
- Fully enclosed motor covers
- Wire protection on lower motor grease seals
- Greaseable direct-drive system
- Grease fittings on all pivot points
- Case drain required
- Universal skid steer mount
| Part Number | Model | Required Flow | Weight |
|---|---|---|---|
| Part Number103920 | Model84" Dual 80 CC Motor | Required Flow15-22 GPM | Weight1,911 lbs |
| Part Number103930 | Model84" Dual 125 CC Motor | Required Flow23-30 GPM | Weight1,911 lbs |
| Part Number2030284-KIT | ModelReplacement Blade Kit (4 w/ Hardware) | Required Flow | Weight |
| Part Number | Model | Required Flow | Weight |
Ideal Applications
- Pasture maintenance
- Large acreage mowing
- Farm and ranch vegetation management
- Right-of-way maintenance
- Municipal groundskeeping
- Park maintenance
- Commercial property maintenance
- Trail creation and maintenance
- Brush and sapling control
- Land clearing and reclamation
Built to Cover More Ground
The Blue Diamond® 84" Dual Motor Brush Cutter combines wide-cut productivity with commercial-grade durability. Its floating deck, dual-spindle blade system, and bi-directional cutting capability deliver a clean finish in grass while maintaining the power needed to tackle heavy brush and overgrowth.
Whether you're maintaining large properties or managing demanding vegetation control projects, this cutter is designed to maximize efficiency, minimize downtime, and deliver professional results season after season.
Safety Notice
A properly installed case drain is required for operation. Always follow equipment safety guidelines and use appropriate operator protection when operating brush-cutting attachments.
