SKID STEER ATTACHMENTS

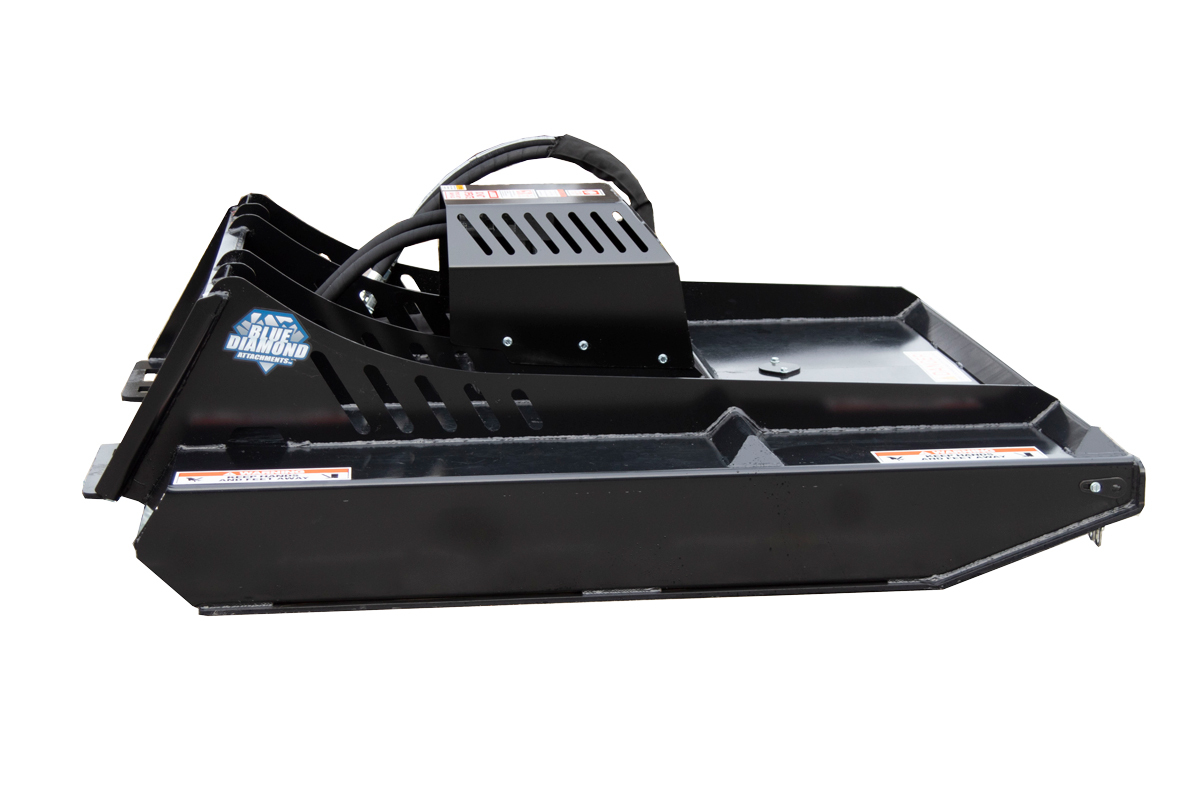

BRUSH CUTTER – HEAVY DUTY CLOSED FRONT

The Blue Diamond® Skid Steer Heavy Duty Closed Front Brush Cutter is a high-performance cutter that is priced right for the customer who is not an everyday heavy commercial user. It mows excellent in grass and cuts up to 3” diameter brush with ease!

Find a Dealer
Blue Diamond Skid Steer Attachments Skid Steer Brush Cutter Heavy Duty SS Brush Cutter HD ac1 web 103007 BRUSH CUTTER HD side st3 web 103007 CROPPED small web

Product Details

Download Brochure
  • Available in 60” and 72” cutting widths
  • Closed front design
  • 3" diameter cutting capacity

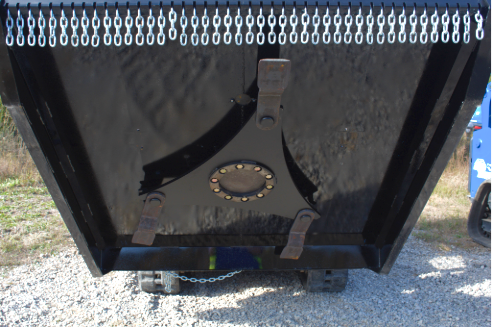

  • 3 double-sided drop-down blades on steel blade carrier
  • 11-26 GPM recommended flow
  • Four link rear chain curtain minimizes discharge
  • Perimeter wire/vine guard on blade carrier
  • 1/4" reinforced steel deck
  • Dual external crossover relief valves
  • Fully enclosed motor cover
  • 3 High torque geroler motor options 80CC, 100CC and 160CC
  • Dual-direction cutting
  • No case drain required
  • Safety windshield required for operator protection
  • 1-year warranty
  • 60" Heavy Duty - Replacement Blade Kit (203028-KIT)
  • 72" Heavy Duty - Replacement Blade Kit (203027H-KIT)
Part Number Model Required Flow Weight
Part Number103004 Model60” HD CF Brush Cutter, 80 CC Required Flow11-16 GPM Weight940 lbs
Part Number103007 Model60” HD CF Brush Cutter, 100 CC Required Flow16-20 GPM Weight1,069 lbs
Part Number103012 Model72” HD CF Brush Cutter, 160 CC Required Flow19-26 GPM Weight1,333 lbs
Part Number203028-KIT Model60" Blade Kit (3 blades w Hardware) Required Flow Weight31 lbs
Part Number203027-KIT Model72" Blade Kit (3 blades w Hardware) Required Flow Weight38 lbs
