SKID STEER ATTACHMENTS

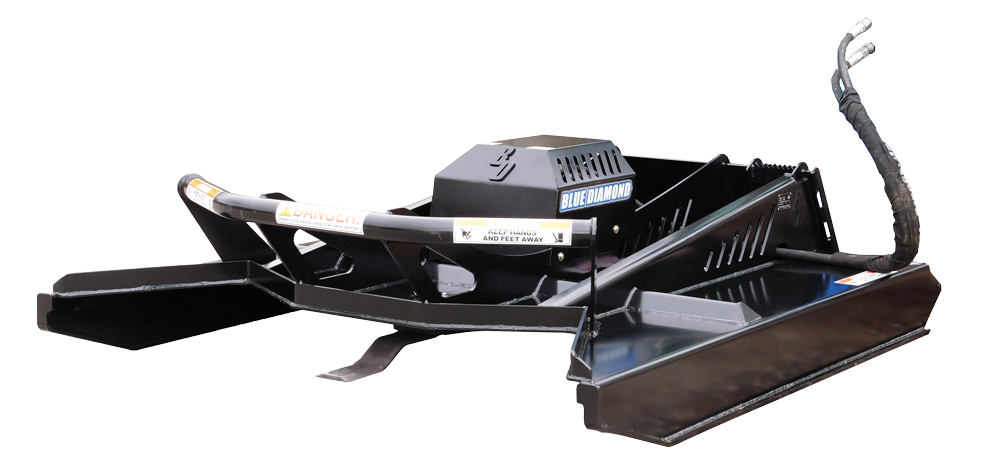

BRUSH CUTTER – HEAVY DUTY OPEN FRONT
The Blue Diamond® Heavy Duty Open Front Brush Cutters deliver powerful, reliable cutting performance at an exceptional value. Built to cut grass, heavy brush, and trees up to 5 inches in diameter, they feature a reinforced ¼" steel deck, oil-filled direct drive system, and three swing-away blades. The open front design with heavy push bar increases productivity by feeding material directly into the blades. Three standard-flow hydraulic motor options cover 11 to 22 GPM, providing an ideal match for skid steers up to 75 HP.
Product Details
Download Brochure- 60 and 72-inch cutting widths
- Cuts up to 5” material and handles thick brush and small trees with confidence
- Recommended for host machines with up to 75 HP

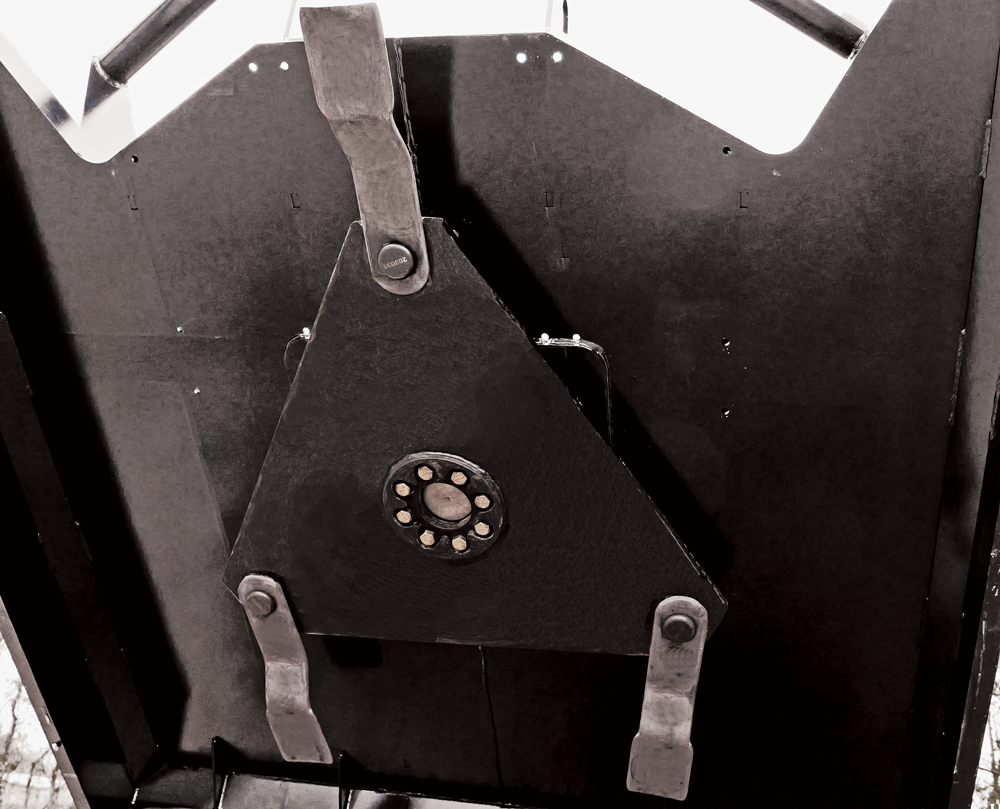

- Three 1/2” double-sided, drop-down blades rotate on a 3/4” steel blade carrier
- 80 CC, 100 CC, and 130 CC Eaton geroler hydraulic motor options
- Oil-filled direct drive system engineered to prevent lower bearing seal failure.

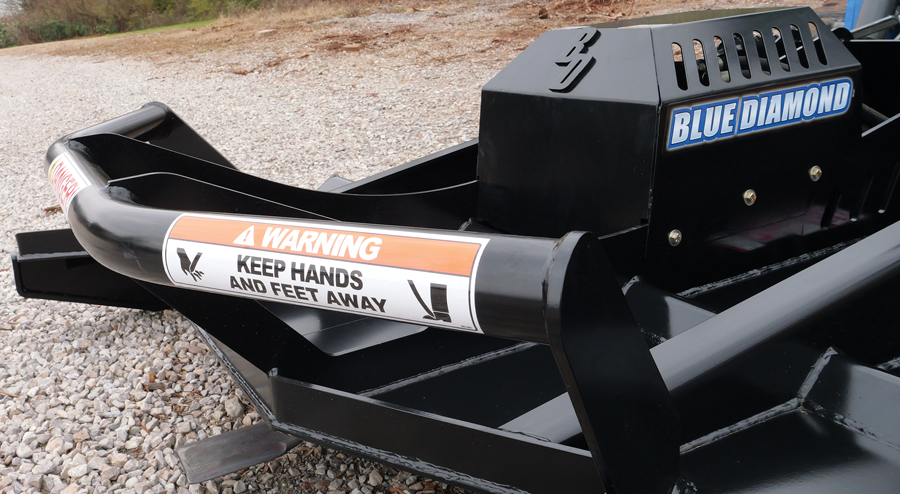

- Heavy-duty push bar for operator safety
- ¼" steel deck with structural cross-bracing provides strength and rigidity
- Rear chain curtain minimizes discharge
- Bi-directional cutting control from the cab without hose swaps
- Fully enclosed motor compartment keeps out the debris and reduces overheating
- Maximum operating pressure of 4,000 PSI
- Replacement Blade Kit (3 Blades and Hardware) - 203027H-KIT
- Safety windshield required for operator protection
| Part Number | Model | Required Flow | Weight |
|---|---|---|---|
| Part Number103002 | Model60” HD Open Front Brush Cutter, 80 CC | Required Flow11-16 GPM | Weight1,200 lbs |
| Part Number103003 | Model60” HD Open Front Brush Cutter, 100 CC | Required Flow16-20 GPM | Weight1,200 lbs |
| Part Number103011 | Model72” HD Open Front Brush Cutter, 130 CC | Required Flow15-22 GPM | Weight1,370 lbs |
| Part Number203027H-KIT | Model72" HD Blade Kit (3 blades w hardware) | Required Flow | Weight38 lbs |
