SKID STEER ATTACHMENTS
FRONT DUMP BUCKET

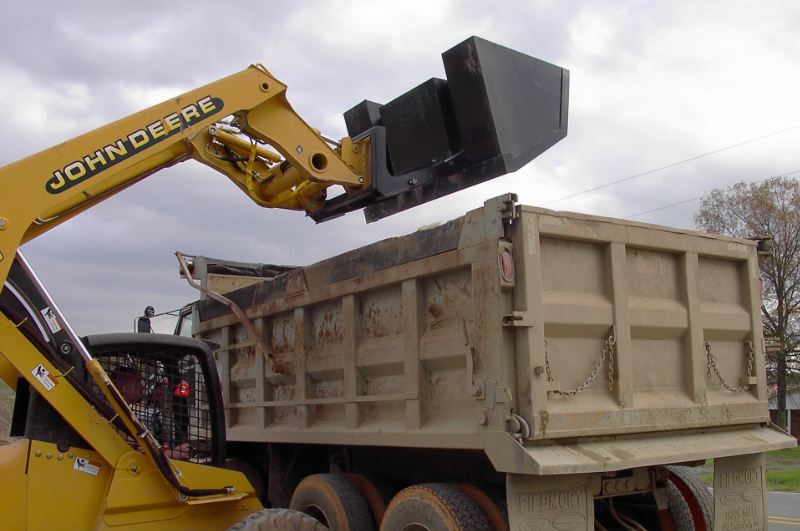

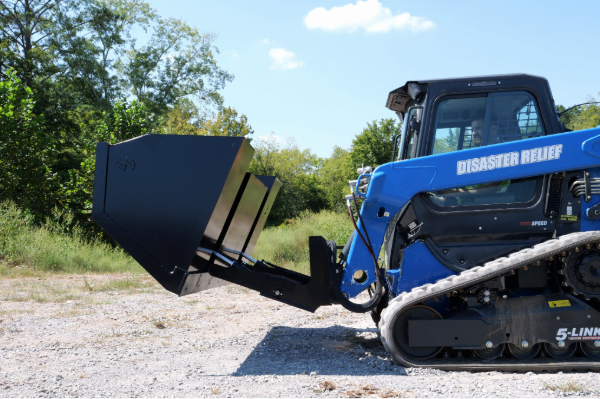

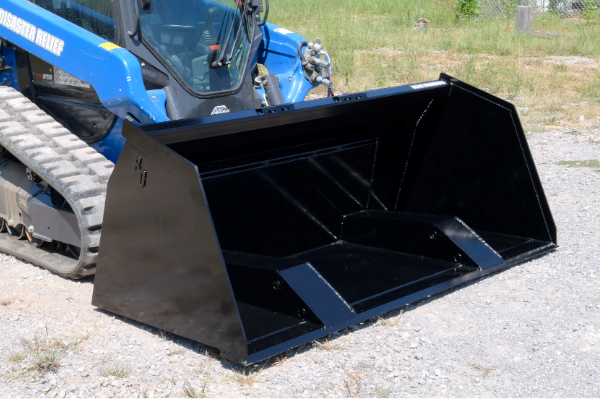

The Blue Diamond® Front Dump Bucket is designed for jobs that require additional dumping height, reach, and control. This attachment significantly increases vertical lift and horizontal reach over standard buckets, making it ideal for loading taller dump trucks, feed mixers, and other high-sided containers.
By gaining up to 5 feet of additional height and 3 feet of extra reach, the Front Dump Bucket allows operators to place material exactly where it’s needed while reducing spillage and repositioning. With the ability to rotate into a full 90-degree dump, this bucket delivers precise, controlled unloading and improved job site efficiency.
Built for demanding applications, our Dump Buckets features heavy-duty construction, greaseable pivot points, oversized pins, and high-quality hydraulic components. Whether loading trucks, feed mixers, or handling material that requires extra clearance, this attachment is a major time saver on the job site.
Product Details
Download Brochure- Available widths: 72", 84", and 96"

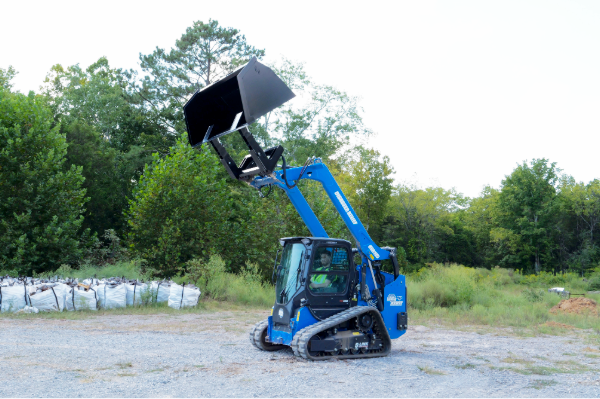

- Increases vertical lift up to 43" and horizontal reach up to 13"

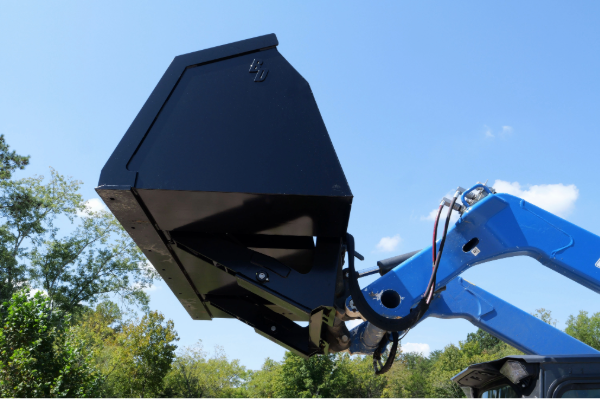

- Rotates into a full 90-degree dump for controlled material placement

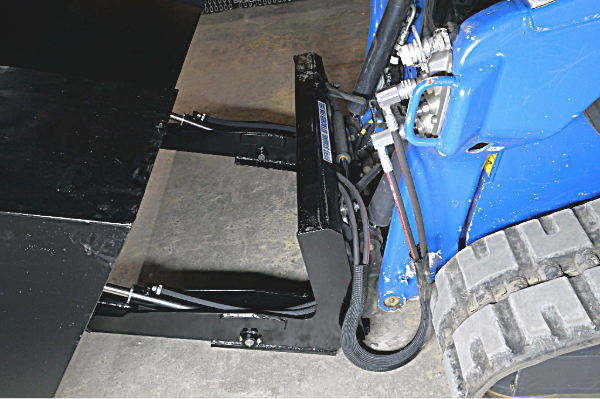

- Two 2" x 10" hydraulic cylinders
- Oversized, greaseable 1-1/4" pins
- Optional bolt-on front cutting edge
- Greaseable pivot points for long service life
- Treaded step for safer operator access
| Part Number | Model | Struck Capacity | Weight |
|---|---|---|---|
| Part Number108801 | Model72" Front Dump Bucket | Struck Capacity25.1 CU FT | Weight935 lbs |
| Part Number108805 | Model84" Front Dump Bucket | Struck Capacity29.1 CU FT | Weight1,009 lbs |
| Part Number108815 | Model96" Front Dump Bucket | Struck Capacity48.1 CU FT | Weight1,100 lbs |
