Skid Steer Drum Mulchers
|
Skid Steer Drum Mulcher - Severe Duty
SKID STEER ATTACHMENTS

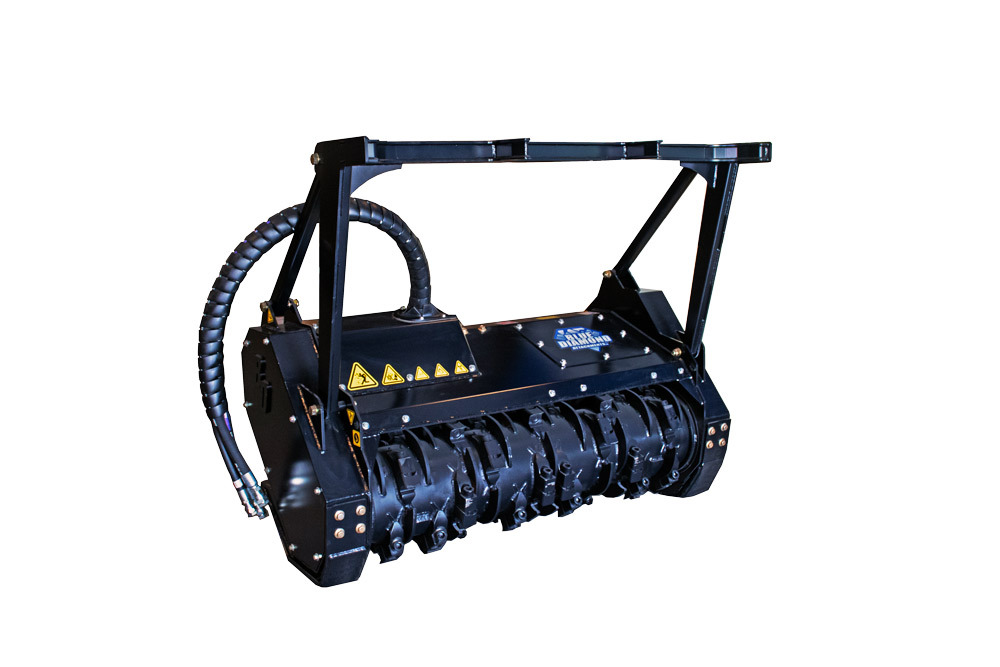

DRUM MULCHER - severe duty

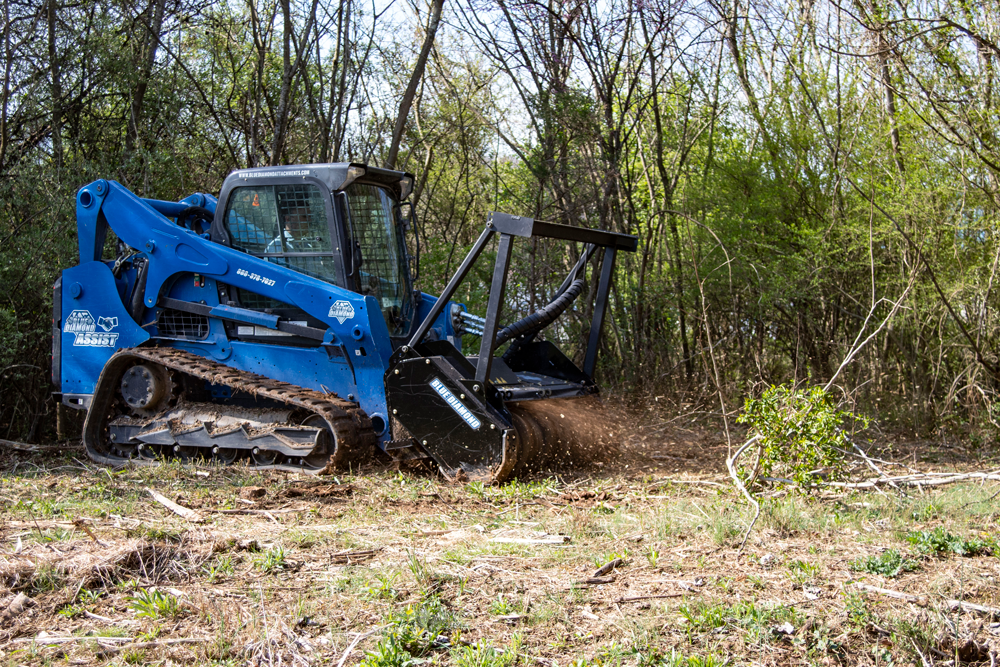

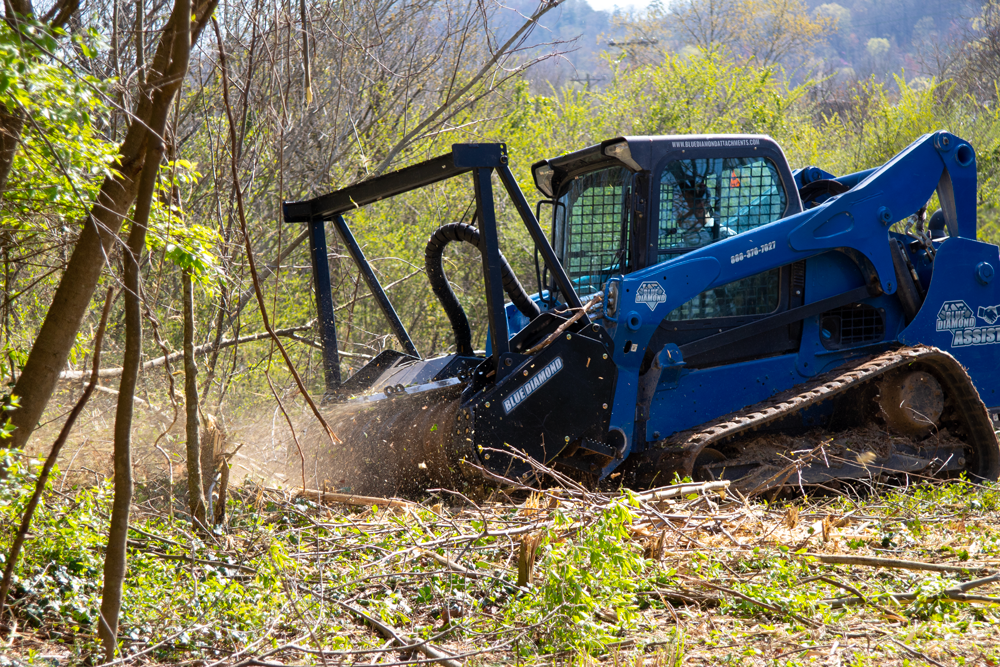

The Blue Diamond® Severe Duty Drum Mulcher is designed for clearing brush and heavy mulching with skid steers and compact track loaders. Our mulchers feature 60” or 70” bite control cutting drums,
allowing the operator to control the depth of cut and keep the rotor
working efficiently.
The 2-speed motor provides smooth, efficient performance and can be configured for a closed or open loop hydraulic system. From clearing acres of dense trees to site prep, no job is too big or small for your skid steer with this attachment.
Requires: 35-52 GPM high flow and case drain.
Product Details
Download Brochure- 60” or 70" bite control drum rotor
- Low-profile tooth anvil with secondary edge guard and single bolt tooth fastening

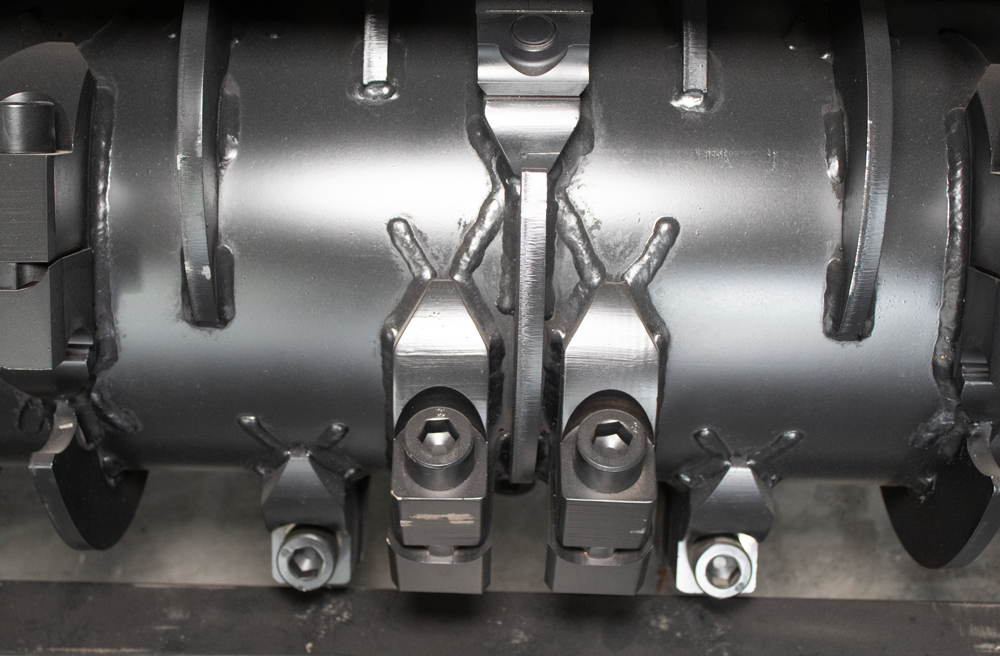

- 4-sided high-speed chipping or single-sided carbide tooth options
- Danfoss 2-speed hydraulic motor
- Hydraulic motor case overpressure protection (COP)
- Requires: 35-52 GPM high flow
- Synchronous drive belt with heavy duty drum bearings
- Closed or open loop hydraulic configuration

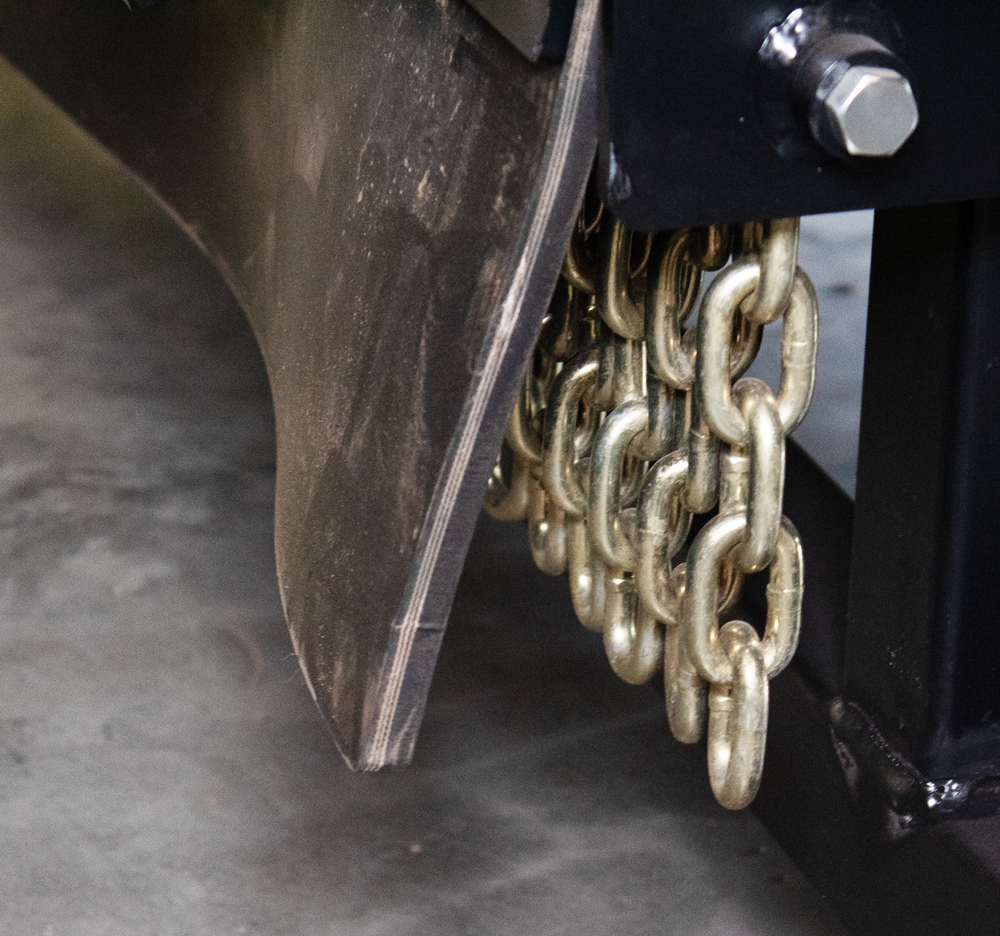

- Adjustable push bar and rear chain guard provide operator protection
- Mulcher body constructed of 3/8” STRENX™ performance steel
- Replaceable skid shoes
- Manual or hydraulic gate options available
- Case drain required
- Hydraulic door requires universal wiring harness kit
- Universal skid steer mount
- Chipping Tooth Kit - 60" SD - (290103-KIT)
- Carbide Tooth Kit - 60" SD - (290109-KIT)
| Part Number | Model | Teeth | Required Flow | Weight |
|---|---|---|---|---|
| Part Number190120 | Model60” SD Drum Mulcher | TeethChipping | Required Flow35-52 GPM | Weight2,560 lbs. |
| Part Number390120 | Model60” SD Drum Mulcher | TeethCarbide | Required Flow35-52 GPM | Weight2,604 lbs. |
| Part Number190122 | Model70” SD Drum Mulcher | TeethChipping | Required Flow35-52 GPM | Weight2,750 lbs. |
