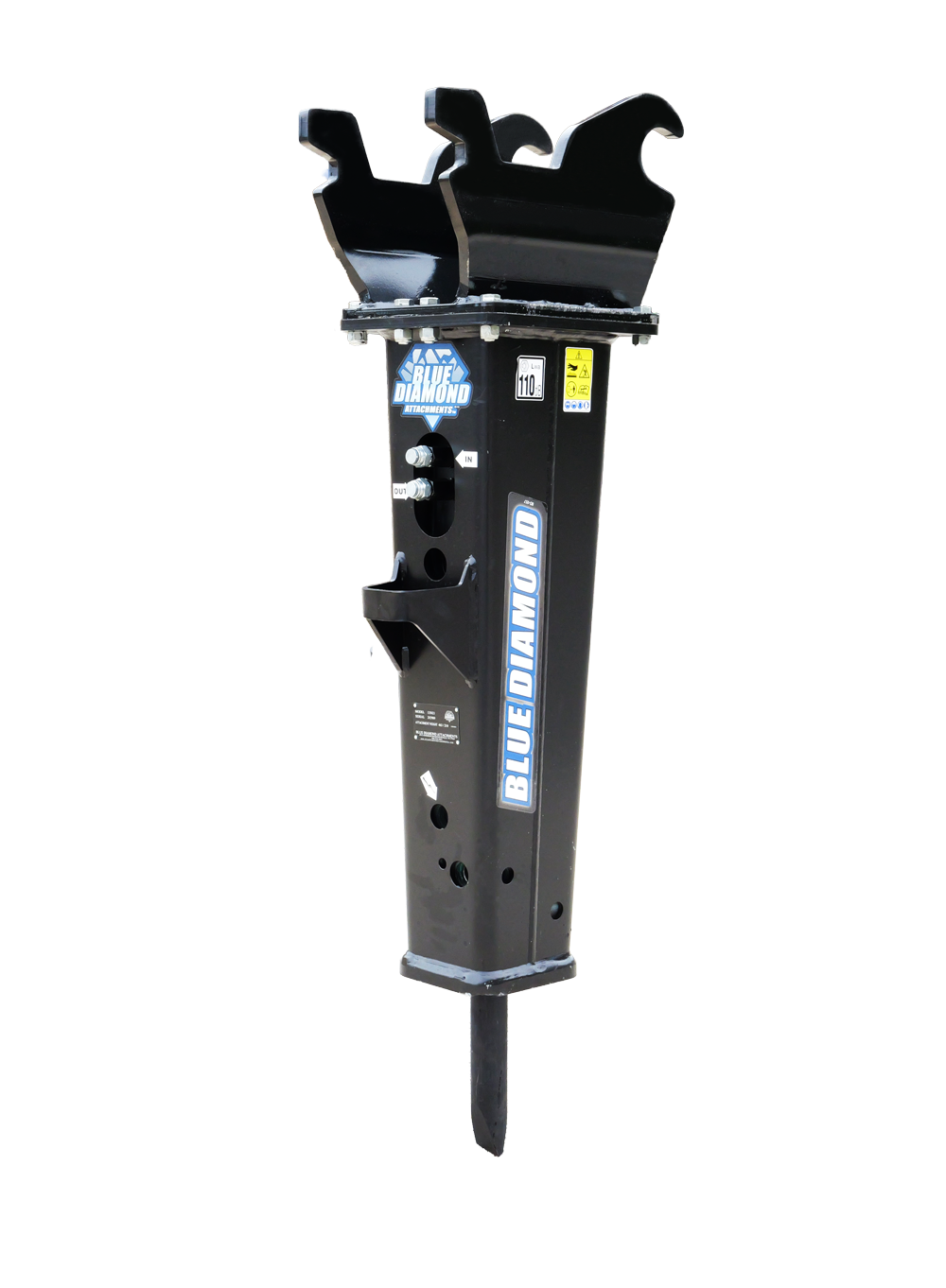

Download Brochure- Twelve breaker models available for mini and full-size excavators
- Fits carrier weights from 1,500 to 110,000 lbs
- Heavy-duty solid mono-block housing eliminates tie rods for increased durability
- Only two internal moving parts reduce maintenance and simplify service
- No nitrogen re-gassing required
- Anti-blank firing system protects internal components during operation
- Energy recovery system increases impact force while reducing hydraulic demand
- Polyurethane vibration-dampening shell protects both the excavator and operator
- Quiet, self-regulating hydraulic operation
- Two-speed control with variable stroke
- Body bushings surrounding the piston extend service life
- Hoses and couplers included
- Mounts available for most mini and full-size excavator models
- Backed by an industry-leading 3-year warranty
- Chisel, moil, and blunt tools available
| Part Number | Model | Working Pressure | Max Oil Flow | Frequency (BPM) | Operating Weight | Tool Diameter | Energy Class | Carrier Weight | (PSI) Back Pressure |
|---|---|---|---|---|---|---|---|---|---|
| Part Number335005-EX | ModelHB50 | Working Pressure1,750 | Max Oil Flow7 | Frequency (BPM)1,200 | Operating Weight132 LBS | Tool Diameter1.5 | Energy Class200 | Carrier Weight1,500-2,650 LBS | (PSI) Back Pressure290-360 |
| Part Number335009-EX | ModelHB95 | Working Pressure1,750 | Max Oil Flow11 | Frequency (BPM)1,200 | Operating Weight220 LBS | Tool Diameter1.8 | Energy Class300 | Carrier Weight2,650-4,000 LBS | (PSI) Back Pressure290-360 |
| Part Number335016-EX | ModelHB165 | Working Pressure1,750 | Max Oil Flow13 | Frequency (BPM)1,200 | Operating Weight370 LBS | Tool Diameter2.2 | Energy Class500 | Carrier Weight4,000-6,600 LBS | (PSI) Back Pressure290-360 |
| Part Number335021-EX | ModelHB210 | Working Pressure1,750 | Max Oil Flow16 | Frequency (BPM)1,100 | Operating Weight463 LBS | Tool Diameter2.5 | Energy Class900 | Carrier Weight6,100-9,900 LBS | (PSI) Back Pressure290-360 |
| Part Number335030-EX | ModelHB300 | Working Pressure1,750 | Max Oil Flow21.2 | Frequency (BPM)1,100 | Operating Weight661 LBS | Tool Diameter2.9 | Energy Class1,200 | Carrier Weight8,800-15,500 LBS | (PSI) Back Pressure290-360 |

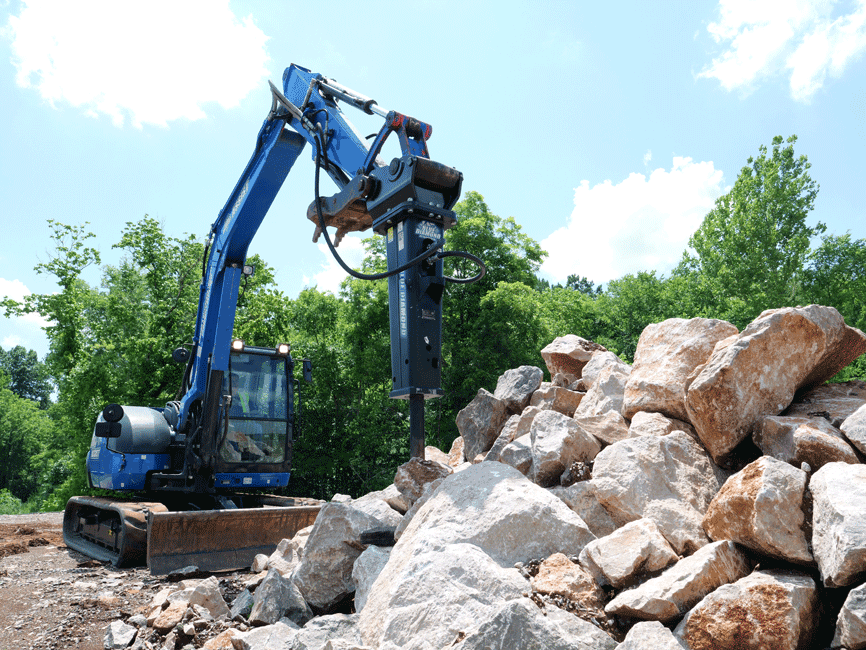

| Part Number335040-EX | ModelHB400 | Working Pressure1,750 | Max Oil Flow29.2 | Frequency (BPM)900 | Operating Weight882 LBS | Tool Diameter3.1 | Energy Class1,500 | Carrier Weight13,500-20,900 LBS | (PSI) Back Pressure363 |
| Part Number335053-EX | ModelHB530 | Working Pressure1,750 | Max Oil Flow32 | Frequency (BPM)900 | Operating Weight1,169 LBS | Tool Diameter3.3 | Energy Class1,800 | Carrier Weight17,650-25,350 LBS | (PSI) Back Pressure363 |
| Part Number335095-EX | ModelHB950 | Working Pressure1,950 | Max Oil Flow34 | Frequency (BPM)900 | Operating Weight2,161 LBS | Tool Diameter4 | Energy Class2,200 | Carrier Weight22,000-33,000 LBS | (PSI) Back Pressure363 |
| Part Number335098-EX | ModelHB1400 | Working Pressure2,050 | Max Oil Flow37 | Frequency (BPM)600-800 | Operating Weight2,976 LBS | Tool Diameter4.6 | Energy Class5,000 | Carrier Weight30,000-50,000 LBS | (PSI) Back Pressure145 |
| Part Number335100-EX | ModelHB1800 | Working Pressure2,050 | Max Oil Flow53 | Frequency (BPM)490-630 | Operating Weight3,968 LBS | Tool Diameter5.4 | Energy Class6,000 | Carrier Weight48,000-70,000 LBS | (PSI) Back Pressure145 |
| Part Number335105-EX | ModelHB2500 | Working Pressure2,200 | Max Oil Flow61 | Frequency (BPM)460-630 | Operating Weight5,291 LBS | Tool Diameter6 | Energy Class8,000 | Carrier Weight60,000-80,000 LBS | (PSI) Back Pressure145 |
| Part Number335110-EX | ModelHB3000 | Working Pressure2,350 | Max Oil Flow75 | Frequency (BPM)380-500 | Operating Weight6,614 LBS | Tool Diameter6.5 | Energy Class11,000 | Carrier Weight70,000-110,000 LBS | (PSI) Back Pressure145 |
Why Choose Blue Diamond Excavator Breakers?
Built for Excavator Productivity
Excavators provide superior reach, positioning, and control when breaking rock, concrete, and reinforced structures. Blue Diamond breakers are engineered to maximize those advantages with fast cycle times and efficient energy transfer.
Heavy-Duty Mono-Block Construction
Precision-machined from a single piece of steel, the mono-block housing eliminates tie rods and reduces maintenance while increasing structural strength.
Advanced Hydraulic Efficiency
An integrated energy recovery system recycles hydraulic pressure to increase impact force while reducing stress on the excavator's hydraulic system.
Designed for Maximum Uptime
With only two internal moving parts, no nitrogen charging, anti-blank firing protection, and vibration isolation, Blue Diamond breakers help contractors spend more time working and less time servicing equipment.
Ideal Applications
- Rock excavation
- Foundation demolition
- Bridge demolition
- Concrete breaking
- Utility trenching
- Pipeline installation
- Quarry operations
- Mining support
- Road and highway construction
- Site preparation
- Marine construction
- Industrial demolition
Built for the Toughest Demolition Projects
Whether you're breaking concrete in tight urban spaces with a mini excavator or performing large-scale quarry and infrastructure work with a full-size excavator, Blue Diamond® Hydraulic Breakers deliver the power, precision, and durability professionals demand. With twelve models covering virtually every excavator class and mounts available for most major manufacturers, Blue Diamond offers a breaker solution for nearly every application.
