Download Brochure- Removes Taproots — Helps prevent unwanted trees and brush from growing back.
- Blunt V-Wedge Design — Grabs and lifts roots instead of cutting through them.
- AR400 Cutting Edge — Built for durability in tough ground conditions.
- 5" Serrated Edges on Side Plates — Adds aggressive gripping and digging action.
- Excellent Visibility — Open-frame design makes it easy to position at the base of the tree.
- Heavy-Duty Construction — Built from 3/4" or 1" thick structural steel.
- Side Cutter Ready — Predrilled for optional side cutters.
- Two Excavator Sizes — Fits carriers from 6,000 to 40,000 lbs.
| Part Number | Model | Carrier Size | Mounting Plate | Weight W/O Mount |
|---|---|---|---|---|
| Part Number102110 | ModelExcavator Tree Grubber - Mini | Carrier Size6 - 20 K | Mounting Plate18" x 19" | Weight W/O Mount 285 lbs |
| Part Number102150 | ModelExcavator Tree Grubber - Small | Carrier Size20 - 40 K | Mounting Plate24" x 24" | Weight W/O Mount 342 lbs |
BUILT TO REMOVE THE ROOT — NOT JUST THE TREE

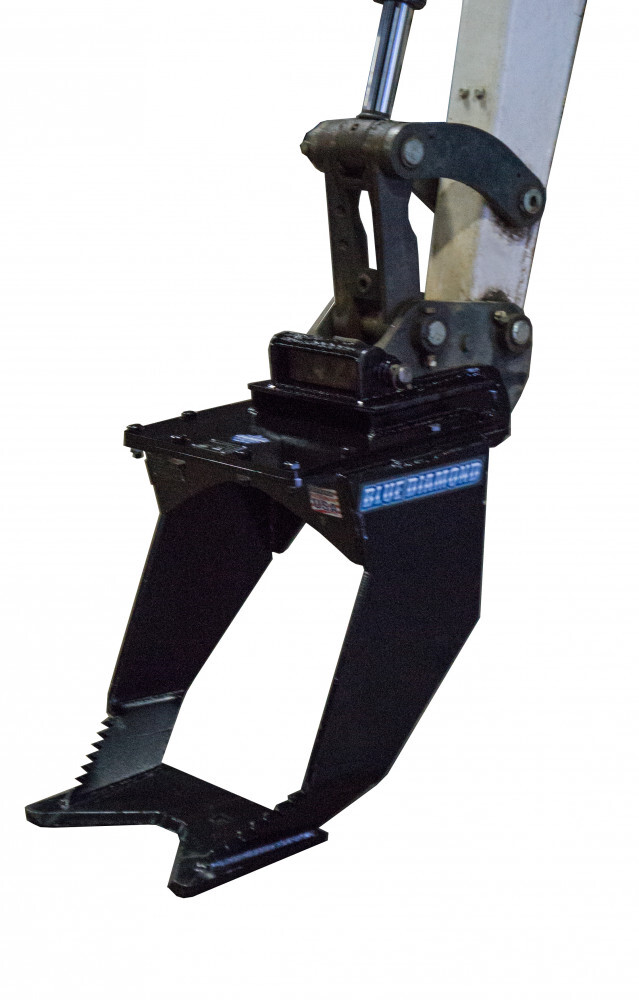

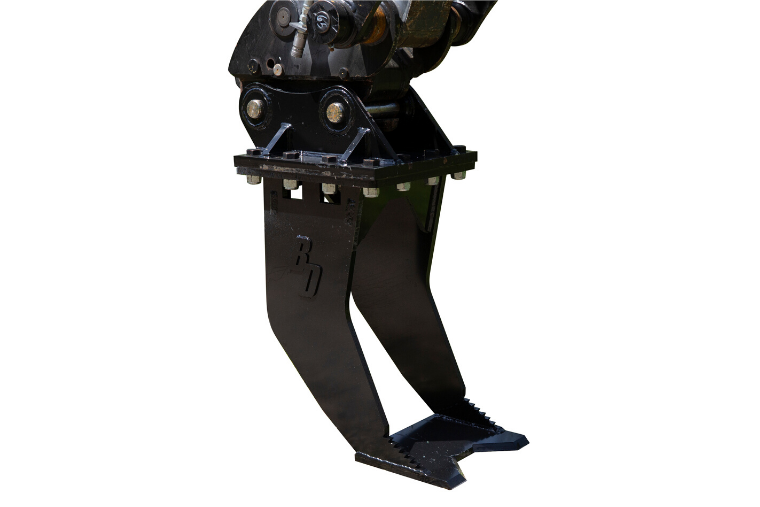

Cutting unwanted brush and small trees at ground level can leave the root system behind, allowing vegetation to return. The Blue Diamond Excavator Tree Grubber is designed to attack the problem below the surface.

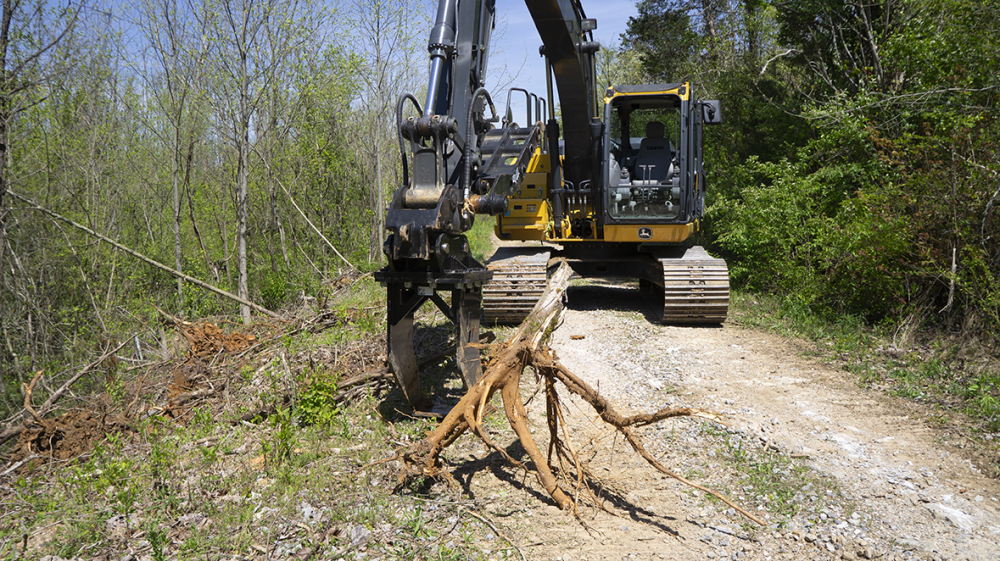

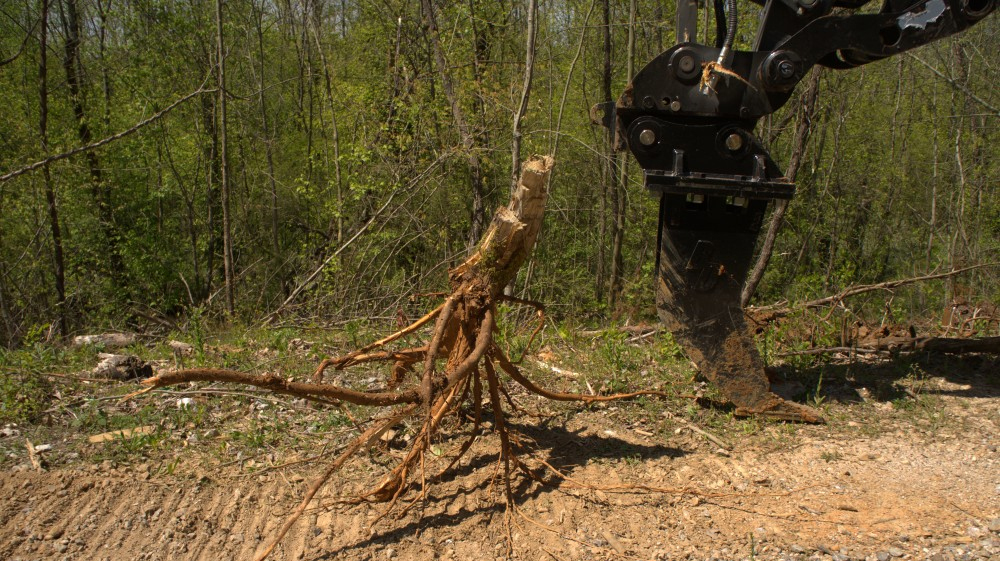

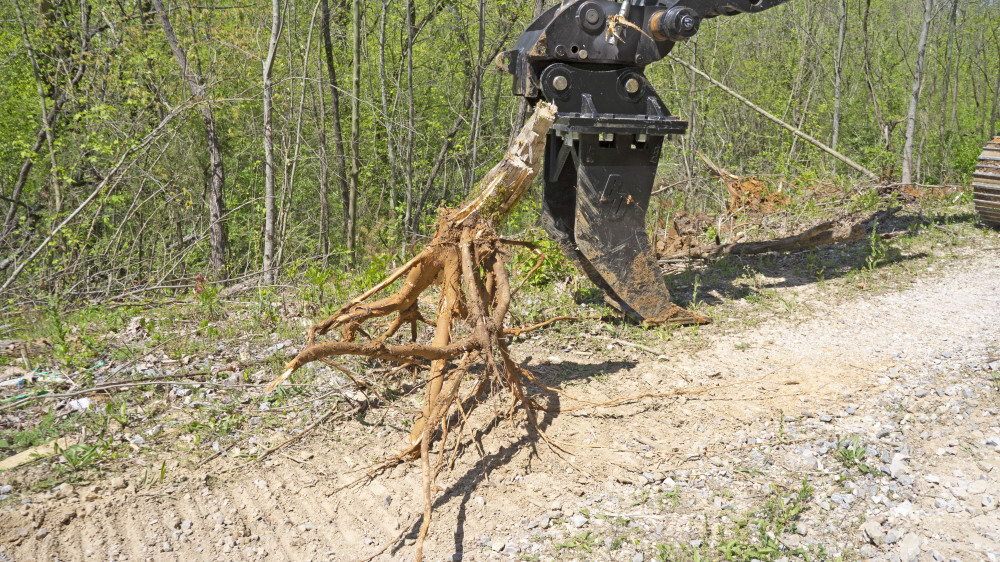

Position the grubbing plate at the base of the tree or shrub, drive the blade into the soil near the taproot, then curl and lift to pull the root system from the ground. The blunt V-shaped wedge and beveled cutting edge are designed to grab and lift roots rather than simply slicing through them.
102110 — MINI EXCAVATOR TREE GRUBBER
Designed for 6,000–20,000 lb mini excavators, the 102110 provides an aggressive yet compact solution for removing invasive shrubs, small trees, and stubborn root systems.
MODEL HIGHLIGHTS
- 6,000–20,000 lb excavator carrier range
- 18" × 19" mount plate
- 3/4" thick steel construction
- AR400 cutting edge
- Predrilled for optional side cutters
- 285 lb attachment weight
102150 — SMALL EXCAVATOR TREE GRUBBER
Built for 20,000–40,000 lb excavators, the 102150 steps up to 1" thick steel construction for more demanding tree, shrub, and root removal applications.
MODEL HIGHLIGHTS
- 20,000–40,000 lb excavator carrier range
- 24" × 24" mount plate
- 1" thick steel construction
- AR400 cutting edge
- Predrilled for optional side cutters
- 342 lb attachment weight
DESIGNED FOR CONTROL AND VISIBILITY
The open-body design provides a clear view of the working edge, helping the operator position the grubbing plate directly at the base of the tree or shrub. Once engaged, the heavy-duty wedge works beneath the root system so the excavator can curl and lift the unwanted vegetation from the ground.
IDEAL FOR
- Invasive brush removal
- Small tree removal
- Shrub removal
- Pasture and field cleanup
- Site preparation
- Property maintenance
- Right-of-way clearing
