Product Details
Download Brochure- Available in 48", 60", 72", and 84" cutting widths

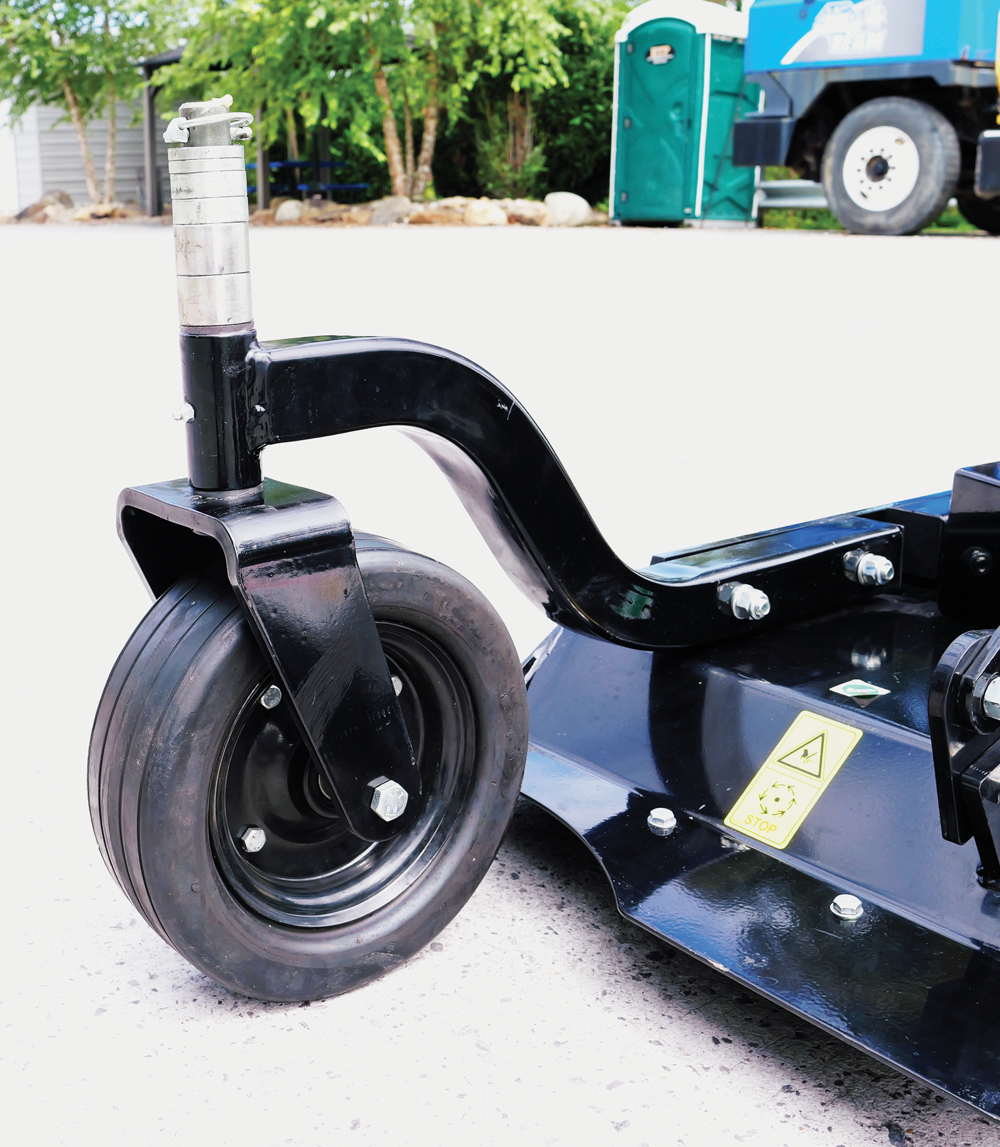

- Four adjustable caster wheels for 1"–4" cutting height control
- Three overlapping, heat-treated blades for a wide, uniform cut

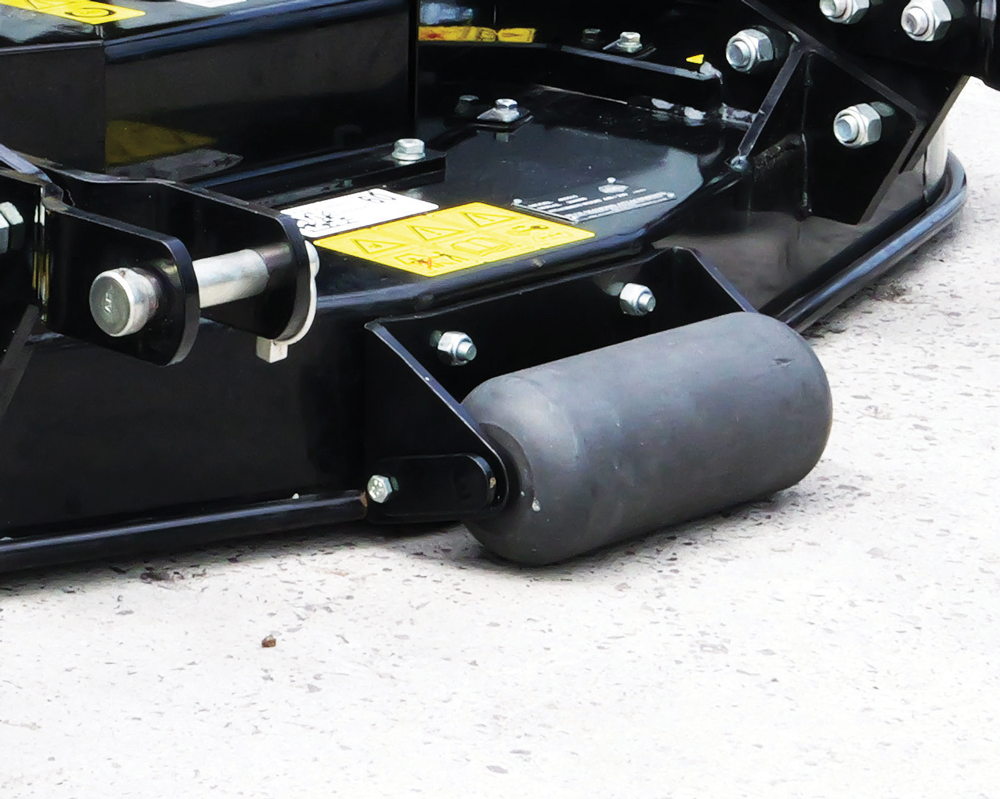

- Standard front anti-scalp roller protects turf on uneven terrain
- Category 1, 3-point hitch compatibility for tractors and loaders
- Floating 3-point hitch system ensures smooth mowing on uneven ground
- Heavy-duty cast iron gearbox and greaseable ball-bearing spindles
- Rugged 7-gauge steel deck for long-lasting durability
- Tapered rear discharge spreads clippings evenly to the ground
- Backed by a 2-year warranty
| PART NUMBER | 403510 | 403515 | 403520 | 403525 |
| MODEL | 4" | 5" | 6" | 7" |
| OVERALL WIDTH | 52" | 65" | 76" | 89" |
| WORKING WIDTH | 48" | 60" | 72" | 84" |
| TRACTOR HP RANGE | 20-50 HP | 25-50 HP | 30-50 HP | 35-50 HP |
| CUTTING HEIGHT | 1"-4" | 1"-4" | 1"-4" | 1"-4" |
| 3-POINT HITCH TYPE | Category 1 | Category 1 | Category 1 | Category 1 |
| NUMBER OF BLADES | 3 | 3 | 3 | 3 |
| PTO INPUT SPEED | 540 RPM | 540 RPM | 540 RPM | 540 RPM |
| BELTS | 2 | 2 | 2 | 2 |
| WEIGHT (WITHOUT PTO) | 450 lbs | 400 lbs | 554 lbs | 662 lbs |
