Grapple FORK - HEAVY DUTY

The Blue Diamond® Heavy Duty Grapple Fork combines pallet forks with a hydraulic grapple to securely handle pallets, logs, brush, pipe, lumber, and other irregular materials. Featuring a 4,000-pound lifting capacity, adjustable cylinder mounting, three-position tine spacing, and a heavy-duty 48-inch grapple, it provides exceptional versatility for construction, landscaping, agriculture, and municipal applications.

Built with greaseable pivots, protected hydraulics, reinforced steel construction, and a universal skid steer mount, the Heavy Duty Grapple Fork delivers dependable performance while reducing manual handling and increasing productivity on every jobsite.

Find a Dealer

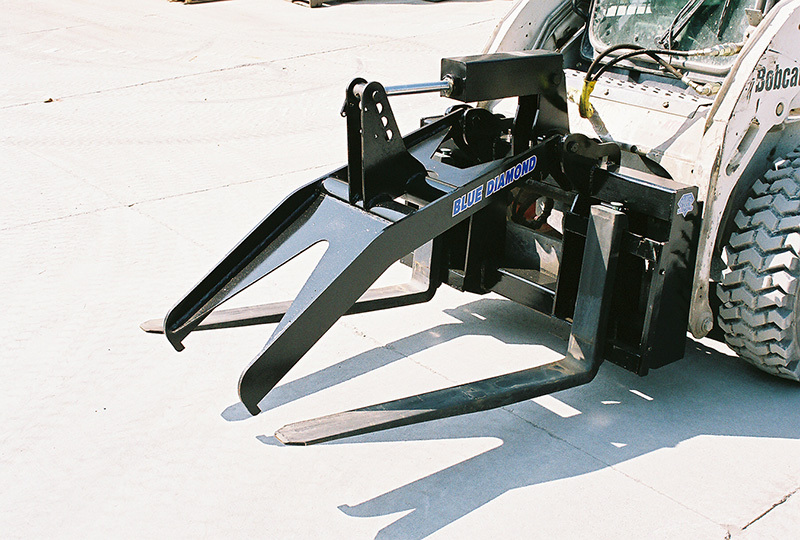

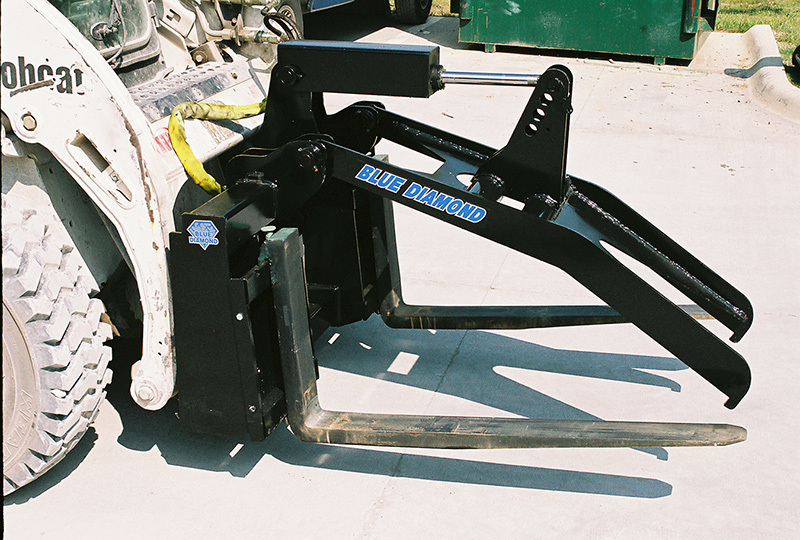

Blue Diamond Attachments Grapple Fork Blue Diamond Attachments Grapple Fork Gallery 1 Blue Diamond Attachments Grapple Fork Gallery 2 Blue Diamond Attachments Grapple Fork Gallery 3

Product Details

Download Brochure
  • 4,000 lb lifting capacity
  • Recommended hydraulic flow: 6–16 GPM
  • Designed for machines up to 75 horsepower
  • 45" width frame standard, with optional 60" wide frame
  • Heavy-duty 48-inch hydraulic top clamp
  • Reinforced ½-inch steel grapple side plates
  • Adjustable four-position cylinder mounting for improved clamping versatility
  • Three-position fork tine width adjustment
  • Compatible with standard Class II pallet fork tines
  • Multiple fork tine lengths: 48″, 60″, 72″, 84″, 96″
  • Protected hydraulic cylinder cover
  • Greaseable pivot points for long service life
  • Includes hydraulic hoses and flat-face couplers with protective sleeve
  • Universal skid steer mount

Applications & Benefits:

  • Handle a variety of materials including brush, logs, pallets, and pipes
  • Top clamp allows secure gripping of irregular loads
  • Multiple tine lengths offer customizable load handling
  • Ideal for construction, landscaping, and material handling tasks
Part Number Model Capacity Tines Weight
Part Number106009 ModelGrapple Fork, 45" Heavy Duty, Frame Capacity4,000 lbs. TinesClass 2 Weight426 lbs
Part Number106010 ModelGrapple Fork, 60” Heavy Duty, Wide Frame Capacity4,000 lbs. TinesClass 2 Weight685 lbs
Part Number ModelReq. 2 qty - Class 2 Tines Capacity Tines Weight
