Heavy Duty Series 2 Multi-Purpose Blade
SKID STEER ATTACHMENTS
HEAVY DUTY MULTI-PURPOSE BLADE

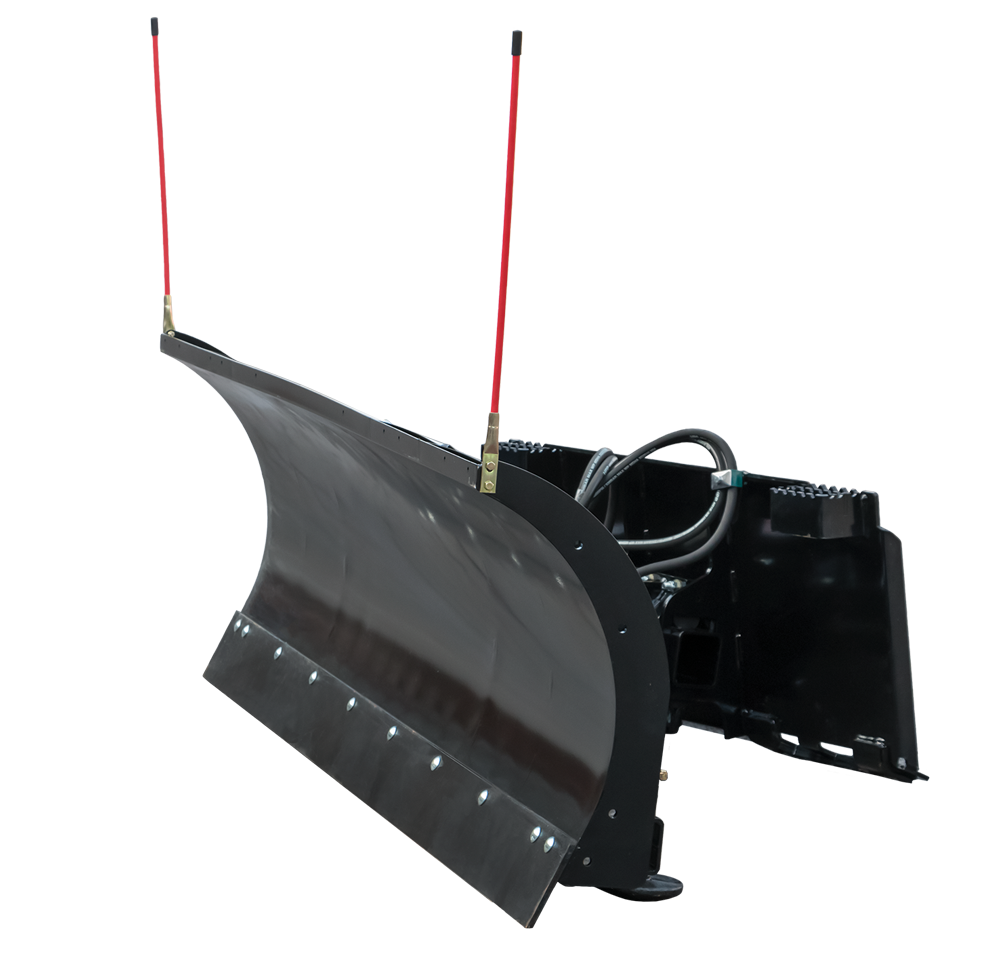

The Blue Diamond® Heavy Duty Series 2 Multi-Purpose Blade delivers dependable performance for snow removal and light dirt work on skid steers over 50 HP. Its 28" rolled steel moldboard provides smooth material flow, with an optional 8" height extension for added capacity. Adjustable skid shoes and a full-trip moldboard protect your machine while ensuring clean, consistent passes.
Operators can tilt the blade 10° up or down and angle it 30° left or right. Hydraulic angle system with double hydraulic cylinders for faster, more precise control. Built with a heavy 1/2" replaceable cutting edge, trip springs, and wear shoes, this blade is ready for year-round use. Available in 84", 96", 108", and 120" widths with a universal skid steer mount.
Product Details
Download Brochure- Available in 84", 96", 108", and 120" widths

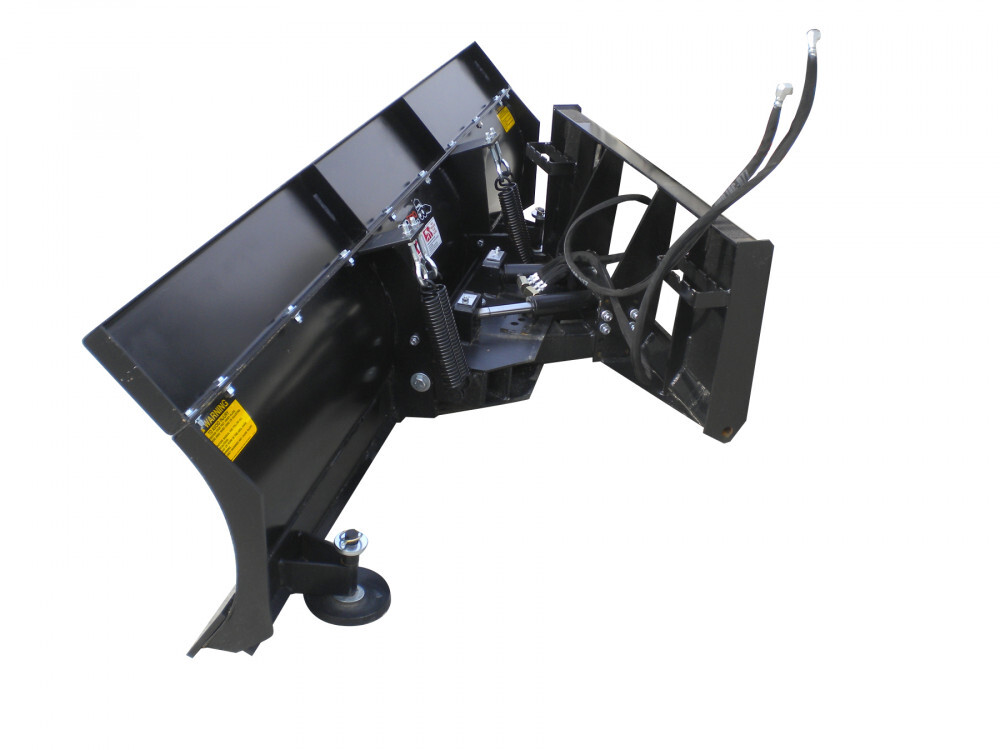

- 28" blade height with optional 8" extension for increased capacity
- Blade tilt: up or down 10 degrees
- 30-degree angle: left or right
- 10-gauge rolled steel moldboard
- Heavy 1/2" replaceable steel cutting edge
- Hydraulic angle with double hydraulic cylinders
- Trip lockout function for dirt work

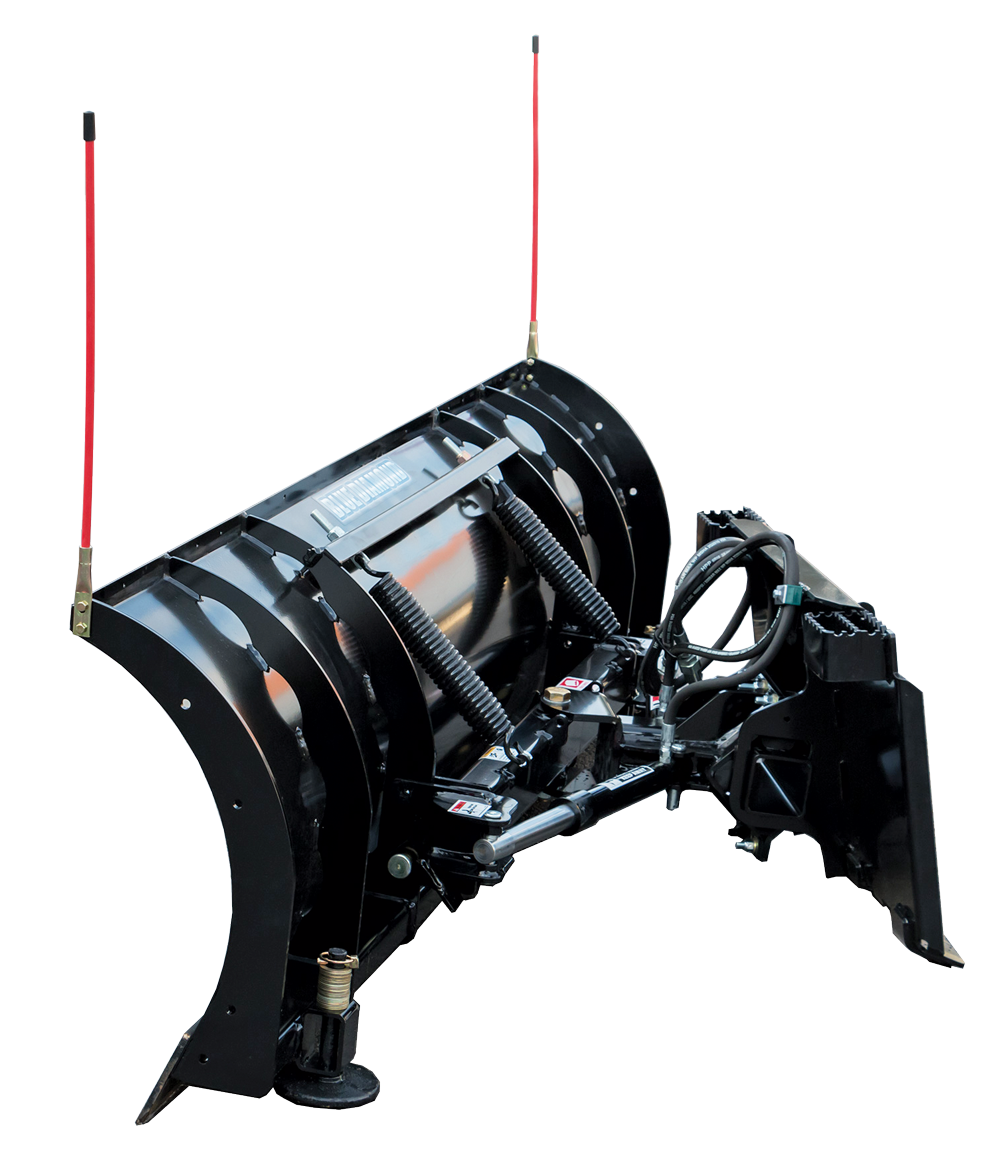

- Wear shoes and trip springs for snow removal
- Optional Rubber Cutting Edge – 1" thick, 6" wide option minimizes wear on the plowing surface
- Recommended for skid steers over 50 HP
- Universal skid steer mount
| Part Number | Straight Width | Angled Width | Angle | Height | Weight |
|---|---|---|---|---|---|
| Part Number123470 | Straight Width84” | Angled Width72 1/2" | Angle30° | Height28" | Weight901 lbs |
| Part Number123475 | Straight Width96" | Angled Width82 7/8" | Angle30° | Height28" | Weight946 lbs |
| Part Number123480 | Straight Width108" | Angled Width93 3/8" | Angle30° | Height28" | Weight986 lbs |
| Part Number123485 | Straight Width120" | Angled Width104 1/8" | Angle30° | Height28" | Weight1,016 lbs |
