SKID STEER ATTACHMENTS
LOG SPLITTER – 25 TON TRADITIONAL

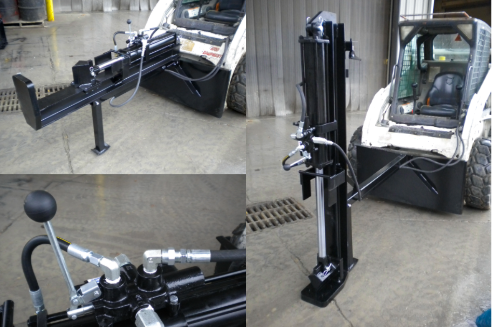

The Blue Diamond® 25 Ton Traditional Log Splitter is a versatile skid steer attachment designed for efficient residential and commercial firewood production. Delivering 25 tons of hydraulic splitting force, it features a heavy-duty 4-inch bore × 24-inch stroke cylinder capable of splitting logs up to 24 inches long.
Designed for outside-the-cab operation, the splitter can be used in either horizontal or vertical positions, allowing operators to efficiently process everything from standard firewood rounds to oversized hardwood logs. A single-lever hydraulic valve with automatic detent return simplifies operation, while the rugged welded frame, universal skid steer mount, and included hoses and couplers provide years of dependable performance. Ideal for farms, rural properties, municipalities, rental fleets, and firewood producers, the Blue Diamond Traditional Log Splitter delivers reliable hydraulic power in a simple, durable package.
Product Details
Download Brochure- 25 tons of hydraulic splitting force
- Splits logs up to 24 inches long
- Operates in horizontal or vertical positions
- Heavy-duty 4-inch bore × 24-inch stroke hydraulic cylinder
- Durable 1.25-inch chrome-plated cylinder rod
- Single-lever hydraulic valve for simple operation
- Automatic detent return during cylinder retraction
- Continuous-flow hydraulics required
- Designed for safe operation outside the skid steer cab
- Heavy-duty welded steel construction
- Built for residential and commercial firewood production
- Hydraulic hoses and flat-face couplers included
- Universal skid steer mount
- One-year warranty
| Part Number | Model | Weight |
|---|---|---|
| Part Number150000 | ModelLog Splitter 25-Ton | Weight475 lbs |
| Part Number150120 | ModelSingle Wedge for 25-Ton Log Splitter | Weight27 lbs |
| Part Number150125 | Model4-Way Wedge for 25-Ton Log Splitter | Weight45 lbs |
