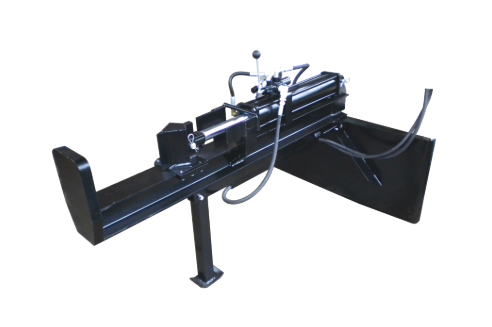

LOG SPLITTER – 25 TON TRADITIONAL
The Blue Diamond® 25 Ton Traditional Log Splitter is a versatile mini skid steer attachment designed for efficient residential and commercial firewood production. Delivering 25 tons of hydraulic splitting force, it features a heavy-duty 4-inch bore × 24-inch stroke cylinder capable of splitting logs up to 24 inches long.
The splitter can be used in either horizontal or vertical positions. A single-lever hydraulic valve with automatic detent return simplifies operation, while the rugged welded frame and reinforced mini skid steer mount provide years of dependable performance. Ideal for farms, rural properties, and rental fleets, the Blue Diamond Mini Skid Steer Traditional Log Splitter delivers reliable hydraulic power in a simple, durable package.
Product Details
Download Brochure- 25 tons of hydraulic splitting force
- Splits logs up to 24 inches long
- Operates in horizontal or vertical positions
- Heavy-duty 4-inch bore × 24-inch stroke hydraulic cylinder
- Durable 1.25-inch chrome-plated cylinder rod

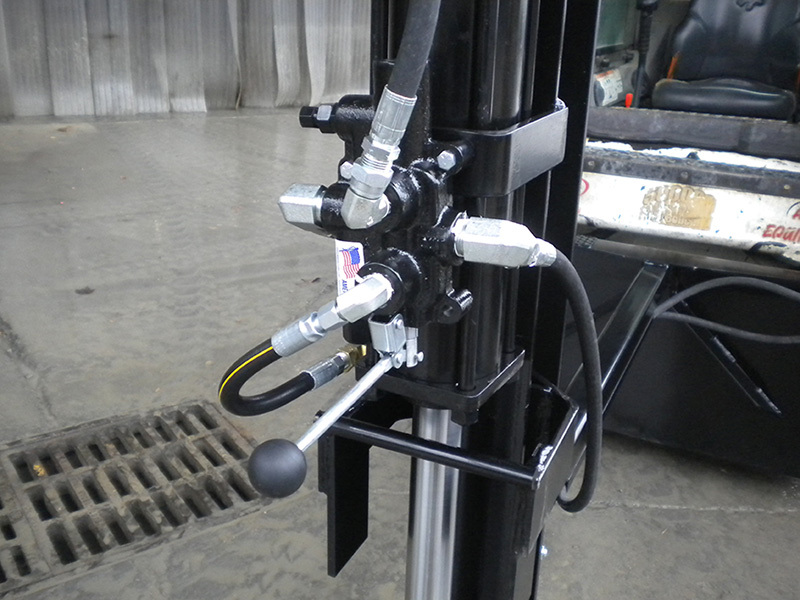

- Single-lever hydraulic valve for simple operation
- Automatic detent return during cylinder retraction
- Continuous-flow hydraulics required
- Heavy-duty welded steel construction
- Single and 4 way splitting wedge options
- Hydraulic hoses and flat-face couplers included
- Mini universal mount
- One-year warranty
| Part Number | Model | Mount | Weight |
|---|---|---|---|
| Part Number150000-25 | ModelLog Splitter 25-Ton | MountMini Universal | Weight475 lbs |
| Part Number150120 | ModelSingle Wedge for 25-Ton Log Splitter | Mount | Weight27 lbs |
| Part Number150125 | Model4-Way Wedge for 25-Ton Log Splitter | Mount | Weight45 lbs |
