Product Details
Download Brochure- 10,000 lb lifting capacity
- Engineered for heavy timber mats, crane mats, access mats, steel plate, pipe, and utility poles
- Designed for host machines up to 75 horsepower
- Recommended hydraulic flow: 6–16 GPM

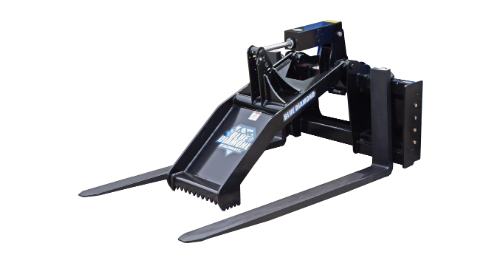

- Heavy-duty 48-inch toothed hydraulic grapple with ½-inch steel side plates
- 18" wide serrated tooth clamp improves grip on mats and irregular materials

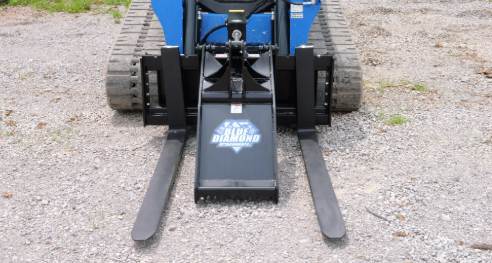

- Three-position tine width adjustment
- Compatible with Class III pallet fork tines
- Multiple fork tine lengths: 48″, 60″, 72″, 84″, 96″

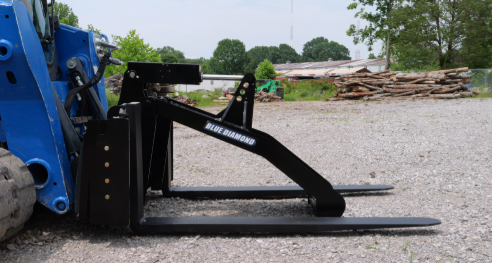

- Adjustable four-position cylinder mounting for varying material thicknesses
- Protected hydraulic cylinder cover
- Greaseable pivot points
- Includes hydraulic hoses and flat-face couplers with protective sleeve

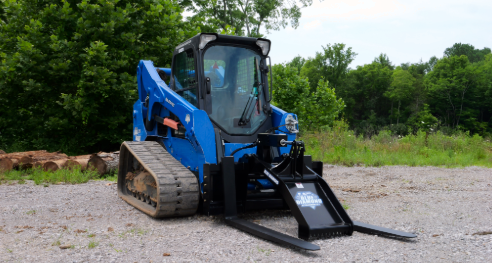

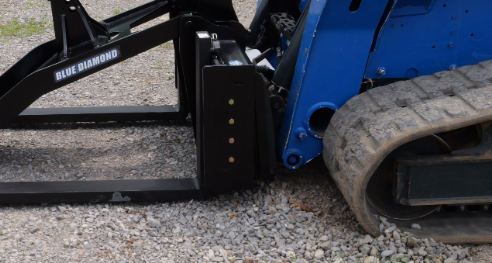

- Universal skid steer mount
| Part Number | Model | Capacity | Tines | Weight |
|---|---|---|---|---|
| Part Number106016 | ModelMat Grapple Fork, Severe Duty, Frame | Capacity10,000 lbs. | TinesClass 3 | Weight509 lbs |
| Part Number | ModelReq. 2 qty - Class 3 Tines | Capacity | Tines | Weight |
Built for Heavy Commercial Work
The Blue Diamond® Severe Duty Mat Grapple Fork is built to thrive in demanding environments where strength, reliability, and secure material handling are essential. Whether placing access mats for pipeline construction or transporting oversized utility materials, its reinforced design and powerful hydraulic grapple help contractors work faster, safer, and more efficiently.
Ideal Applications
- Heavy access mat handling
- Crane mat installation
- Pipeline construction
- Oil and gas projects
- Utility transmission work

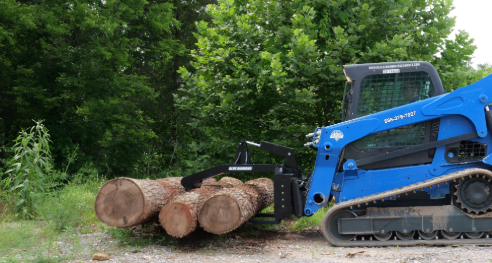

- Heavy timber transport
- Pole handling
- Industrial construction
- Bridge construction
- Forestry operations
