MINI SKID STEER ATTACHMENTS

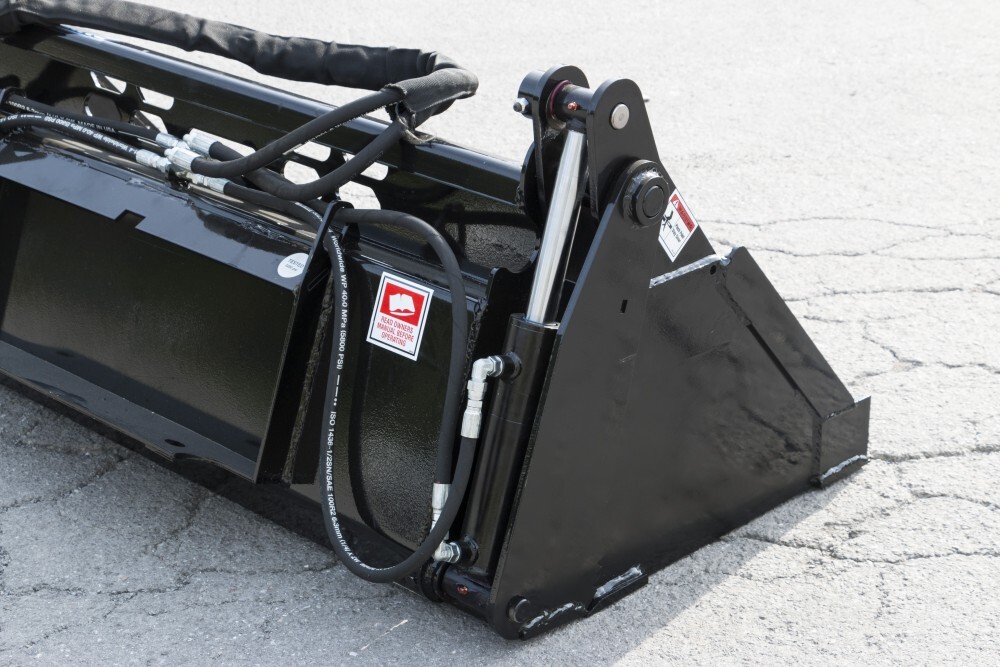

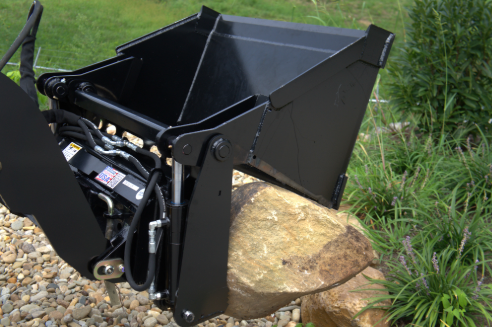

MINI 4-IN-1 BUCKET
The Blue Diamond® Mini 4-in-1 Bucket transforms your mini skid steer into one of the most versatile tools on the jobsite. Combining the functions of a standard bucket, grapple, dozer blade, and clamshell into a single attachment, it allows operators to dig, grade, grab, load, and backfill without changing attachments. Its compact design delivers exceptional maneuverability in confined work areas while providing the strength and durability needed for demanding landscaping, construction, agriculture, and property maintenance applications.
Built for productivity, the Mini 4-in-1 Bucket features a rugged, reinforced frame, powerful hydraulic cylinders, and serrated clamping edges that securely grip logs, brush, rocks, debris, and other irregular materials. Whether you’re clearing land, cleaning up storm damage, moving material, or performing finish grading, this attachment helps reduce downtime and maximize efficiency. Designed to withstand tough working conditions, the Mini 4-in-1 Bucket is the ideal all-purpose attachment for operators who need maximum performance and versatility from their mini skid steer.
Product Details
Download Brochure- 36”, 42”, 48” and 50” widths available
- Two 2” x 6” hydraulic cylinders
- Opening height 30-7/16”
- 1/4” thick steel side plate and reinforced steel floor plate
- Oversized, greaseable pivot pins
- Front cutting and dozer edge is 1/2” thick
- Bolt-on edge available
- Reinforced quick attach
- Available with teeth or tooth bar
- Powder coated finish for durability
- Comes equipped with hoses, fittings, and couplers
- Mini universal and Bobcat MT mounts available
| Part Number | Model | Struck Cap. | Weight |
|---|---|---|---|
| Part Number108755 | Model36” Bucket, 4-In-1, Smooth | Struck Cap.4.64 CU FT | Weight355 lbs |
| Part Number108760 | Model42” Bucket, 4-In-1, Smooth | Struck Cap.5.59 CU FT | Weight375 lbs |
| Part Number108765 | Model48” Bucket, 4-In-1, Smooth | Struck Cap.6.48 CU FT | Weight341 lbs |
| Part Number108766 | Model48” Bucket, 4-In-1, Tooth | Struck Cap.6.48 CU FT | Weight356 lbs |
| Part Number108770 | Model50” Bucket, 4-In-1, Smooth | Struck Cap.7.7 CU FT | Weight425 lbs |
| Part NumberPart numbers listed are not machine specific. Specify which mount is needed. | Model | Struck Cap. | Weight |
