MINI SKID STEER ATTACHMENTS
MINI FRONT DUMP BUCKET

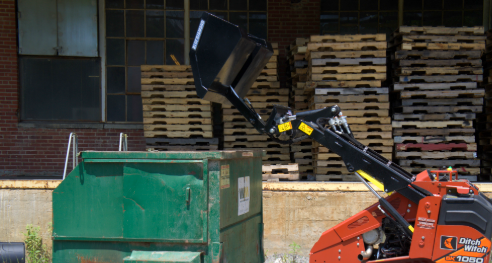

The Blue Diamond® Mini Skid Steer Front Dump Bucket extends your machine's dumping height and forward reach by up to 43 inches, making it easy to load trucks, trailers, dumpsters, and elevated containers without moving to a larger machine. Available in 36-inch, 44-inch, and 50-inch widths with capacities from 5.89 to 8.60 cubic feet, it's ideal for handling mulch, soil, gravel, sand, and other loose materials on compact jobsites.
Built with reinforced steel construction, a heavy-duty 2" × 6" hydraulic cylinder, oversized greaseable pivot pins, and a ½-inch × 4-inch steel cutting edge, the Blue Diamond Front Dump Bucket delivers dependable performance for landscaping, construction, agriculture, and property maintenance. Hydraulic hoses, couplers, and a Mini Universal mount come standard for fast installation and immediate productivity.
Product Details
Download Brochure- Available in 36", 44", and 50" bucket widths
- Up to 43 inches of additional dump height and forward reach
- Hydraulic front dump design for smooth, controlled unloading
- Heavy-duty 2" × 6" hydraulic dump cylinder
- Bucket capacities from 5.89 to 8.60 cubic feet
- Oversized 1¼-inch greaseable pivot pins
- Reinforced pivot and mounting plates for long service life
- Heavy-duty ½" × 4" steel cutting edge
- Precision welded reinforced steel construction
- Excellent visibility during loading and dumping
- Hydraulic hoses and flat-face couplers included
- Mini universal mount
| Part Number | Model | Struck Cap. | Weight |
|---|---|---|---|
| Part Number108990-25 | Model36” Bucket, Front Dump | Struck Cap.5.89 CU FT | Weight340 lbs |
| Part Number108996-25 | Model44” Bucket, Front Dump | Struck Cap.7.43 CU FT | Weight375 lbs |
| Part Number108998-25 | Model50” Bucket, Front Dump | Struck Cap.8.6 CU FT | Weight395 lbs |
