Mini Power Rake - Heavy Duty Series 2

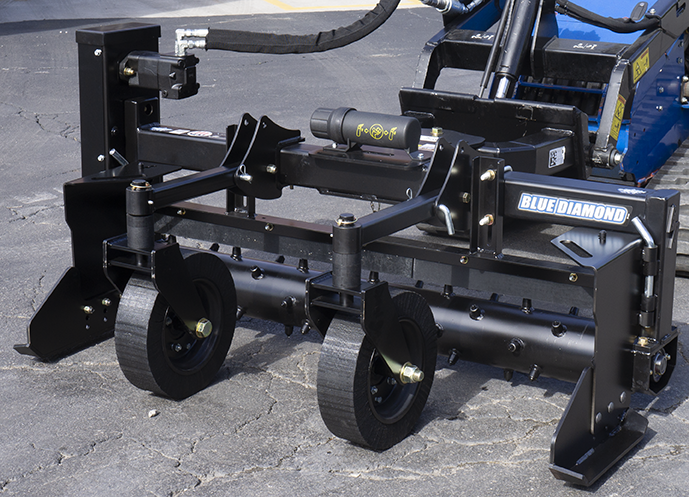

The Blue Diamond® Mini Skid Steer Heavy Duty Series 2 Power Rake follows close on the heels of our previously released Severe Duty model. This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full-size skid steer machines.
NOTE: These are shown with OPTIONAL Skid shoes and harden steel or carbide teeth that are either replaceable or fixed.
Product Details
Download Brochure- 7” diameter drum with 1.5” teeth
- Chain drive unit for increased torque
- Pre-lubricated chain for easy service
- Spindles on drum are 1 3/8” diameter in greaseable bearings
- Drum widths: 48”, 60”, and 72”
- Overall width 9” more than drum width
- 7/8” greaseable axles on wheels
- Airless tires
- Flip up wheels
- 1.25” spindles with adjustable height
- Optional skid shoes
- Mini bolt-on mount options: Universal, Bobcat, and ASV
| Part Number | Working Width: Straight | Teeth | Working Width: Angled | Overall Working Width | Weight* |
|---|---|---|---|---|---|
| Part Number132400 | Working Width: Straight48″ | TeethFixed | Working Width: Angled42″ | Overall Working Width58″ | Weight*580 lbs |
| Part Number132407 | Working Width: Straight48″ | TeethReplaceable | Working Width: Angled42″ | Overall Working Width58″ | Weight*528 lbs |
| Part Number132401 | Working Width: Straight60″ | TeethFixed | Working Width: Angled52″ | Overall Working Width70″ | Weight*600 lbs |
| Part Number132408 | Working Width: Straight60″ | TeethReplaceable | Working Width: Angled52″ | Overall Working Width70″ | Weight*580 lbs |
| Part Number132402 | Working Width: Straight72″ | TeethFixed | Working Width: Angled66″ | Overall Working Width82″ | Weight*628 lbs |
| Part Number132409 | Working Width: Straight72″ | TeethReplaceable | Working Width: Angled66″ | Overall Working Width82″ | Weight*600 lbs |
| Part Number132403 | Working Width: StraightUniversal Mini Skid Steer Mount | Teeth | Working Width: Angled | Overall Working Width | Weight*94 lbs |
| Part Number132050 | Working Width: StraightSkid Shoes w Hardware, Pair | Teeth | Working Width: Angled | Overall Working Width | Weight*30 lbs |
