MINI SKID STEER ATTACHMENTS

Sift Rocks and Debris While Leaving the Dirt Behind

Efficient Material Separation. Cleaner Job Sites.

Removing rocks and debris from soil can be time-consuming when using a traditional bucket. Loose dirt often gets collected along with unwanted material, requiring additional sorting and cleanup.

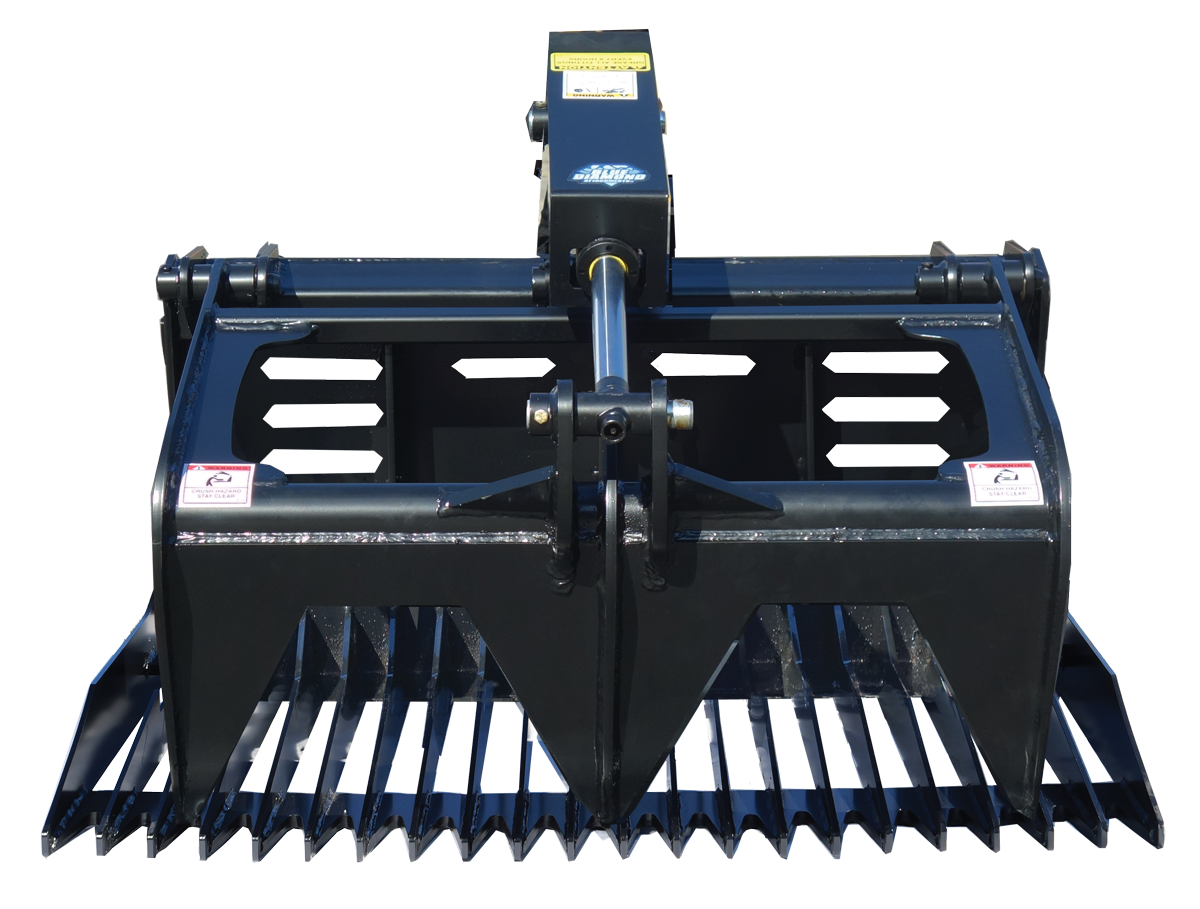

The Blue Diamond Mini Rock Grapple Bucket makes material separation more efficient with its open-tine construction. Featuring 2 1/4" spacing between heavy-duty steel tines, the bucket allows smaller material to fall through while retaining larger rocks, roots, and debris.

Operators can rake through loose soil, collect oversized material, and allow dirt to sift out before transporting the remaining debris. This reduces the amount of unnecessary soil being moved and helps preserve material that can remain on the job site.

The open construction also improves visibility through the bucket, helping operators position the attachment and monitor material collection.

For landscaping contractors, property maintenance crews, and site preparation professionals, the Mini Rock Grapple Bucket provides an effective way to clean up rocky ground, separate debris, and prepare work areas for the next phase of a project.

Hydraulic Gripping Power for Secure Material Handling

More Than a Rock Bucket. Built to Grip.

Traditional rock buckets are excellent for collecting rocks and separating debris, but handling irregular or bulky materials can be challenging without a way to secure the load.

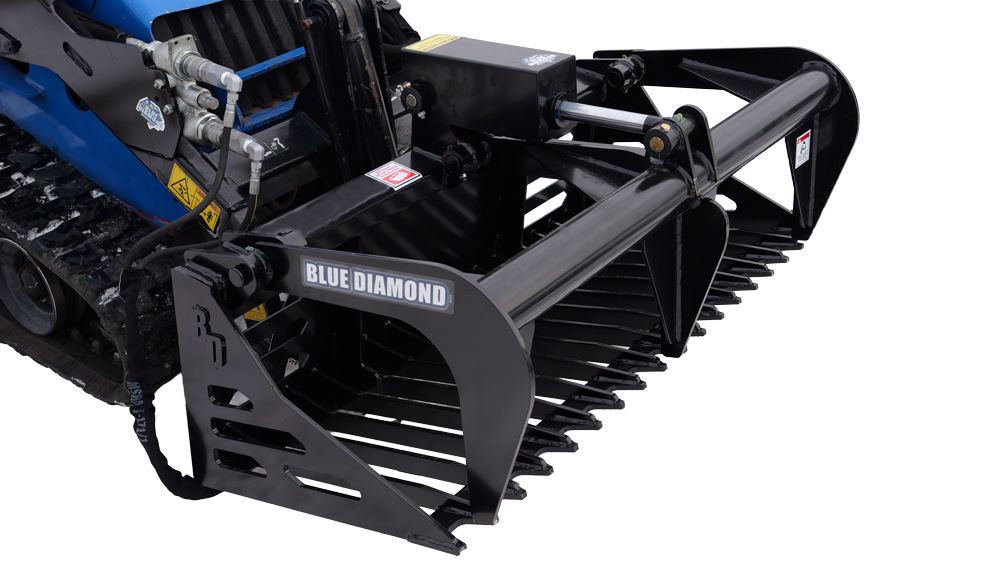

The Blue Diamond Mini Rock Grapple Bucket adds a powerful hydraulic top clamp that allows operators to grip and retain larger materials during lifting and transport.

The grapple opens to 22", providing clearance for handling rocks, branches, logs, roots, and other irregular debris. Once material is collected, the hydraulic clamp closes against the bucket to help secure the load.

This additional gripping capability makes the attachment particularly useful for moving awkwardly shaped rocks, bundled brush, small logs, and mixed cleanup materials that may be difficult to transport with a conventional rock bucket.

A heavy-duty hydraulic cylinder provides dependable clamping action, while protective shielding helps reduce exposure to debris during operation.

For contractors handling a variety of material types, the combination of sifting and gripping performance provides greater flexibility without requiring frequent attachment changes.

Rake, Grade, and Level with One Attachment

Multi-Purpose Design for Efficient Ground Preparation.

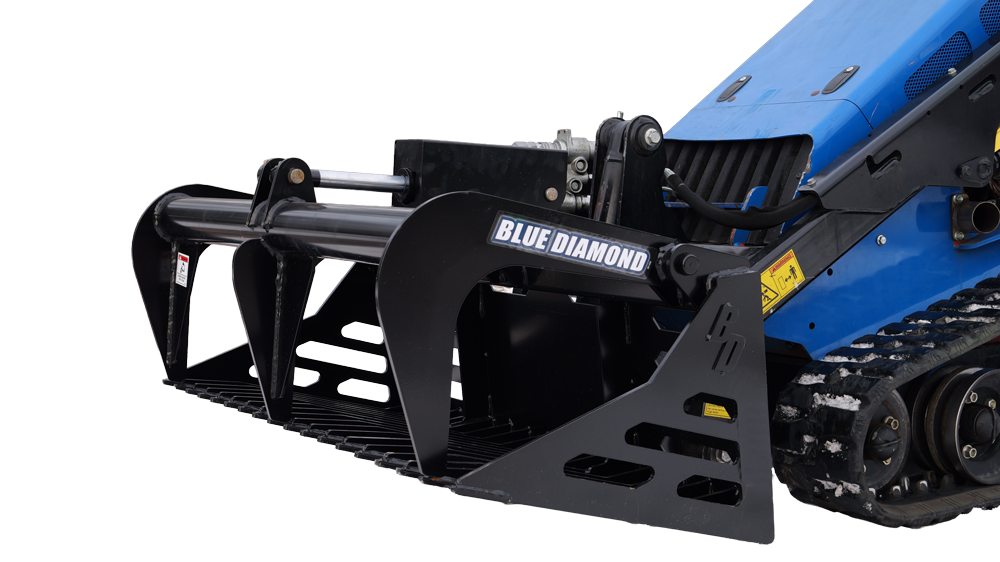

The Blue Diamond Mini Rock Grapple Bucket does more than collect and transport material. Its specially designed bucket profile also provides practical grading and ground-preparation capability.

The leading edge can be used to skim high spots and loosen surface material, while the rear crossbar helps smooth loose soil as the attachment moves across the ground.

This land-plane functionality makes the Mini Rock Grapple Bucket especially useful for landscaping projects, driveway maintenance, and light site preparation where operators need to collect debris and improve the ground surface.

After removing larger rocks and roots, operators can use the same attachment to rake and smooth the remaining soil, helping prepare the area for additional grading, landscaping, or finish work.

For property maintenance professionals and landscape contractors, having the ability to sift, rake, grip, and perform light grading with one attachment can streamline cleanup operations and reduce the number of tools needed on the job site.

Heavy-Duty 3/8" Steel Construction

Built for Rocks, Roots, and Demanding Cleanup.

Rock-handling attachments operate in abrasive environments where repeated contact with stone, soil, and debris places significant demands on structural components.

The Blue Diamond Mini Rock Grapple Bucket is built with heavy-duty 3/8" steel construction to provide the strength and durability required for repeated material handling.

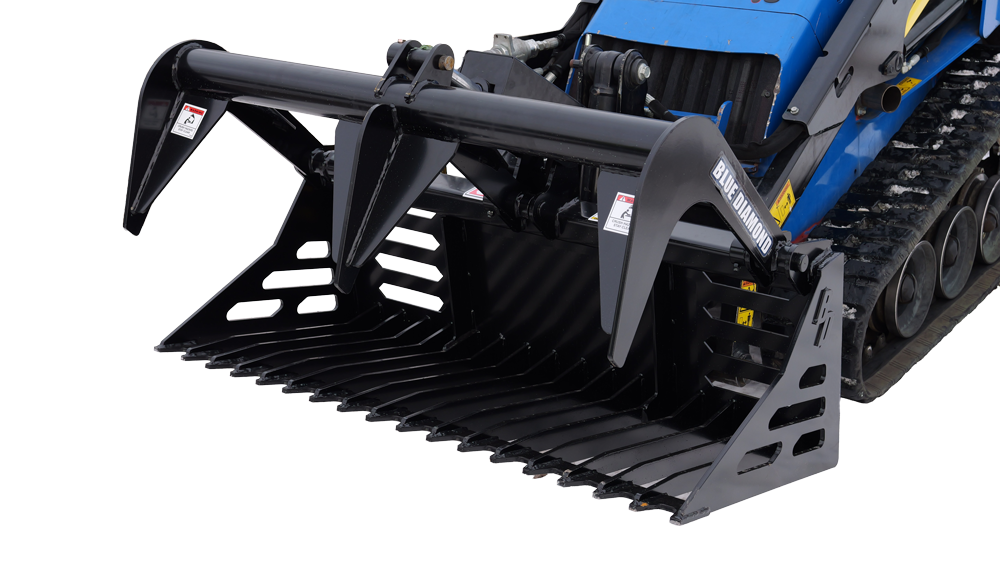

Its rugged bottom tines are designed to collect larger rocks and debris while allowing smaller material to pass through. The drop-down tine design helps retain collected material and reduces the tendency for rocks to slide forward out of the bucket.

A heavy-duty hydraulic grapple adds secure gripping capability for bulky loads, while the reinforced bucket structure supports repeated lifting, raking, and material-handling operations.

Available in 42" and 48" widths, the attachment provides dependable strength in a compact package suited to the maneuverability of mini skid steers.

For contractors who frequently work with rocky soil, landscaping debris, and irregular materials, the Mini Rock Grapple Bucket offers a durable solution for demanding daily use.

Designed for Serviceability and Long-Term Performance

Protected Components. Straightforward Maintenance.

Attachments used for rock removal and land clearing are exposed to abrasive material, branches, and frequent impacts. Protecting critical components and keeping maintenance simple are essential to dependable operation.

The Blue Diamond Mini Rock Grapple Bucket incorporates a protected hydraulic cylinder and hose routing to help reduce exposure to debris and potential damage during operation.

Greaseable pivot points provide convenient access for routine lubrication, helping maintain smooth clamp movement and reduce premature wear. Blue Diamond recommends lubricating the pivot points every eight hours of operation.

The heavy-duty construction and accessible service points make the attachment practical for contractors and equipment owners who rely on consistent performance.

With regular inspections, proper lubrication, and routine cleaning, the Mini Rock Grapple Bucket is designed to deliver dependable service through demanding landscaping, land-clearing, and property cleanup applications.

Maximize Your Mini Skid Steer's Versatility

One Attachment. Multiple Jobs. Less Downtime.

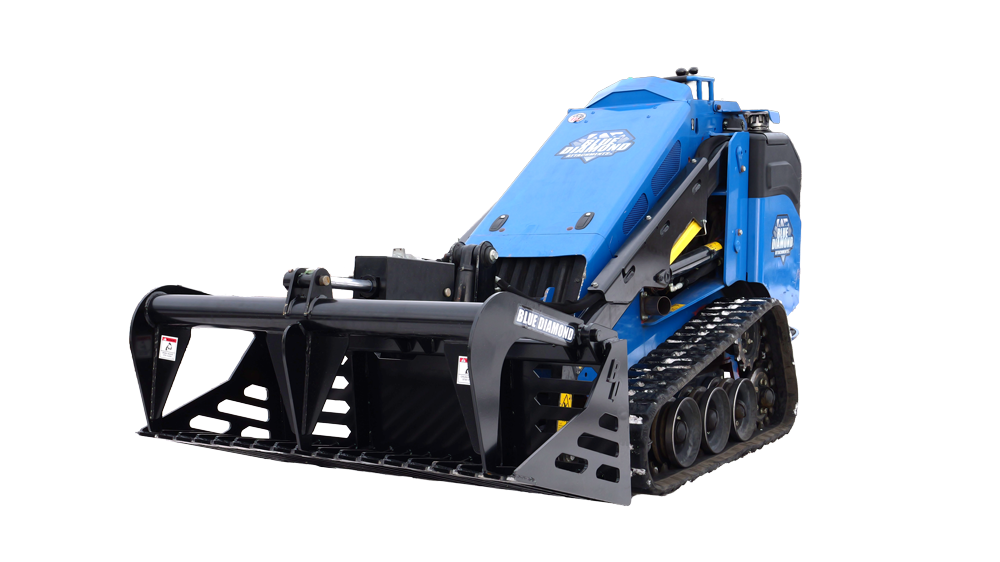

Mini skid steers are valued for their ability to work in tight spaces and perform a wide range of tasks. The Blue Diamond Mini Rock Grapple Bucket expands that versatility by combining several essential material-handling functions into one compact attachment.

Use it to sift rocks from soil, collect brush and branches, secure irregular loads, or perform light grading after debris removal.

This multifunctional design is especially valuable for landscaping and property maintenance contractors who frequently move between cleanup, material handling, and ground preparation tasks.

Instead of changing between a rock bucket, grapple, and grading attachment for every stage of a project, operators can complete several related tasks with the Mini Rock Grapple Bucket.

The result is a versatile, heavy-duty attachment that helps contractors make more productive use of their existing equipment while simplifying everyday site cleanup and land management.

Frequently Asked Questions

What is a mini skid steer rock grapple bucket used for?

A mini skid steer rock grapple bucket is designed to sift rocks and debris from soil, rake and collect unwanted material, grip bulky loads, and perform light grading. Common applications include landscaping, land clearing, rock removal, construction cleanup, and property maintenance.

What widths are available for the Blue Diamond Mini Rock Grapple Bucket?

The Blue Diamond Mini Rock Grapple Bucket is available in 42" and 48" widths. Both models feature a single hydraulic grapple for securing rocks, logs, branches, and other materials during handling.

How does a rock grapple bucket separate rocks from dirt?

The bucket uses an open-tine design that allows loose soil and smaller materials to fall through while retaining larger rocks and debris. This makes it useful for removing unwanted rocks from landscaping areas without carrying unnecessary amounts of dirt.

What is the difference between a rock grapple bucket and a root grapple?

A rock grapple bucket features closely spaced bottom tines designed for collecting rocks, sifting soil, and light grading. A root grapple typically uses a more open tine configuration focused on raking, collecting, and transporting roots, brush, and bulky debris. The Mini Rock Grapple Bucket also incorporates a leading edge and rear crossbar that provide additional ground-leveling capability.

Can the Mini Rock Grapple Bucket be used as a land plane?

Yes. Its leading edge can skim high spots, while the rear crossbar helps smooth loose soil. This makes it useful for light grading, landscaping, and ground preparation after rocks and debris have been removed.

How wide does the hydraulic grapple open?

The Mini Rock Grapple Bucket features a 22" grapple opening, providing clearance for collecting and gripping rocks, brush, branches, and other bulky materials.

What hydraulic pressure can the Mini Rock Grapple Bucket handle?

The attachment has a maximum hydraulic operating pressure of 3,200 PSI and is rated for compatible host machines up to 50 HP. Always confirm your machine's hydraulic specifications and lifting capacity before use.

Will the Mini Rock Grapple Bucket fit my mini skid steer?

The current models are available with Mini Universal mounting configurations. Check your machine's mounting plate, auxiliary hydraulic connections, and lift capacity before ordering to ensure proper compatibility.

What is the difference between the Mini Rock Bucket and Mini Rock Grapple Bucket?

The Mini Rock Bucket is designed primarily for sifting rocks, raking debris, and light grading. The Mini Rock Grapple Bucket adds a hydraulic top clamp that allows operators to securely grip and transport bulky or irregular materials. The grapple version is especially useful when handling branches, logs, larger rocks, and mixed debris.

How do I maintain the Mini Rock Grapple Bucket?

Routine maintenance includes checking hydraulic hoses and fittings, inspecting tines and structural components for damage, and lubricating pivot points. Blue Diamond recommends greasing the pivot points every eight hours of operation and following the inspection and service procedures in the operator's manual.

Built to Sift. Designed to Grip. Ready to Work.

From rock removal and landscaping to property cleanup and light grading, the Blue Diamond® Mini Skid Steer Rock Grapple Bucket combines rugged steel construction, powerful hydraulic gripping, and versatile material-sifting performance in one dependable attachment.
