MINI SKID STEER ATTACHMENTS

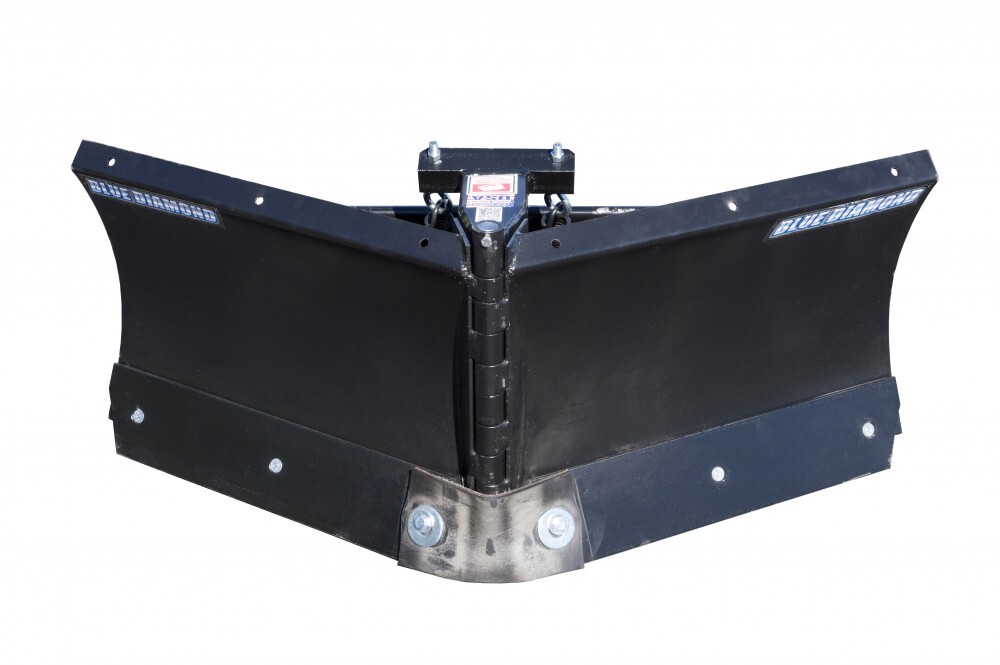

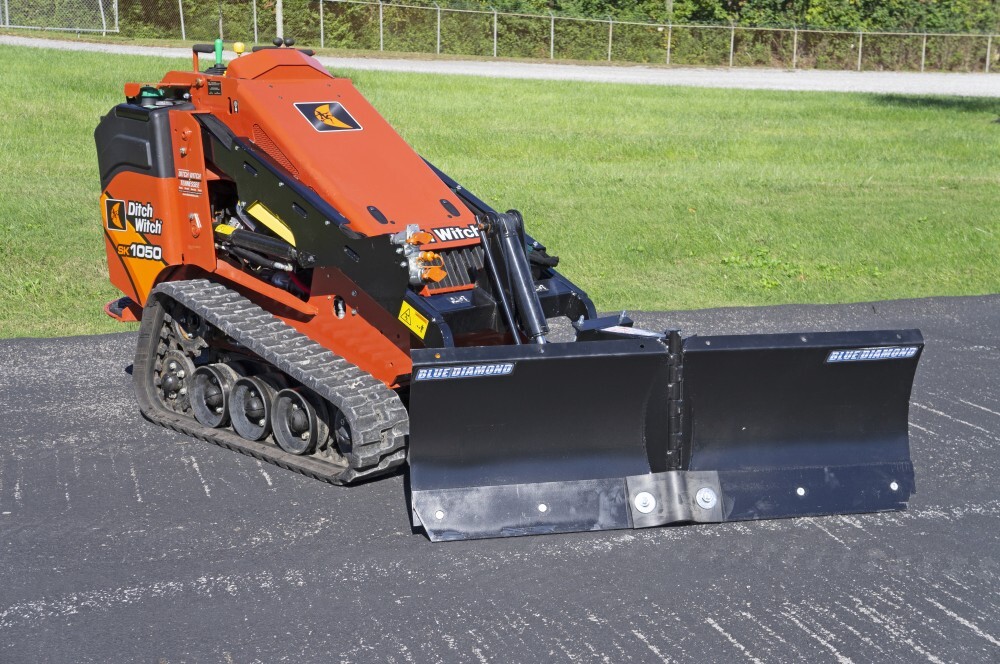

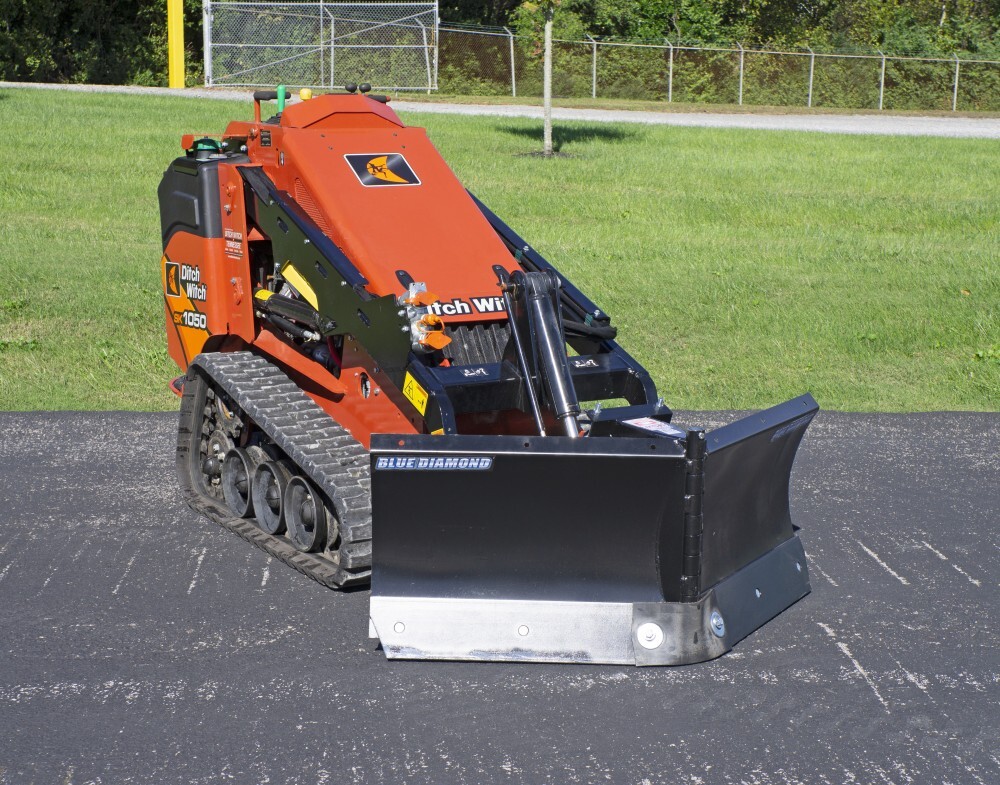

MINI V-BLADE
The Blue Diamond® Mini Skid Steer V-Blade delivers powerful, year-round performance for snow, dirt, and material handling. Independent wing control lets operators switch between V-cutting, scooping, straight pushing, and 30° angled positions. Built from heavy-duty American steel, the rolled one-piece moldboard improves strength and material flow, while adjustable depth guides and a reversible rubber cutting edge ensure precise, surface-safe operation. Available in 48" and 60" widths, with an optional 8" height extension, this compact V-blade packs big versatility into a mini skid steer attachment.
Product Details
Download Brochure- Available in 48" and 60' widths
- Multi-Position Blades – V-Cut, Scoop, Straight, or Angled (up to 30° left or right)

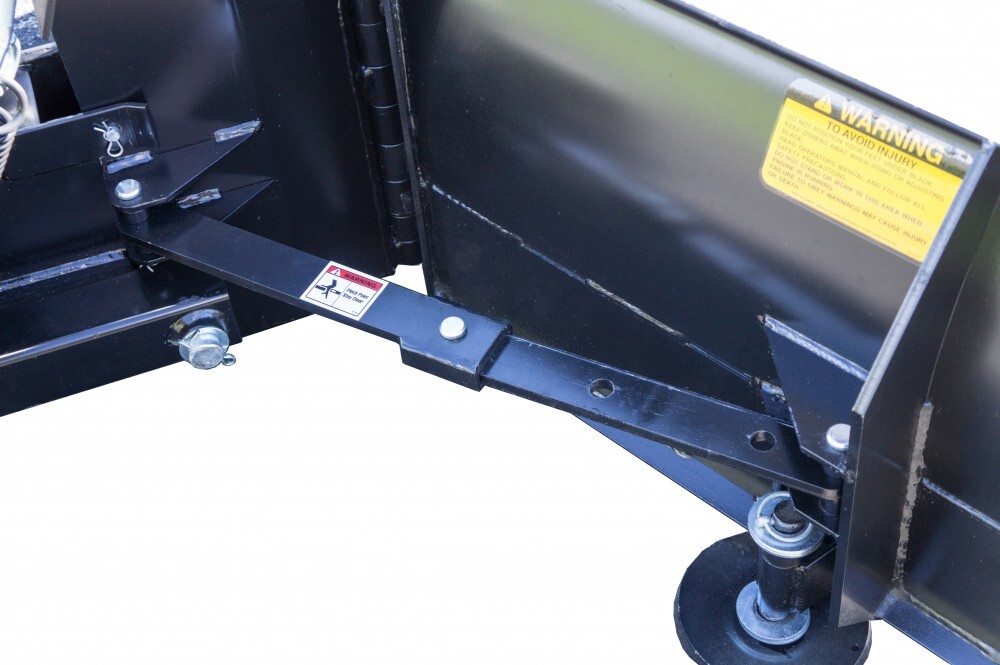

- 9 Position - Manual blade adjustment

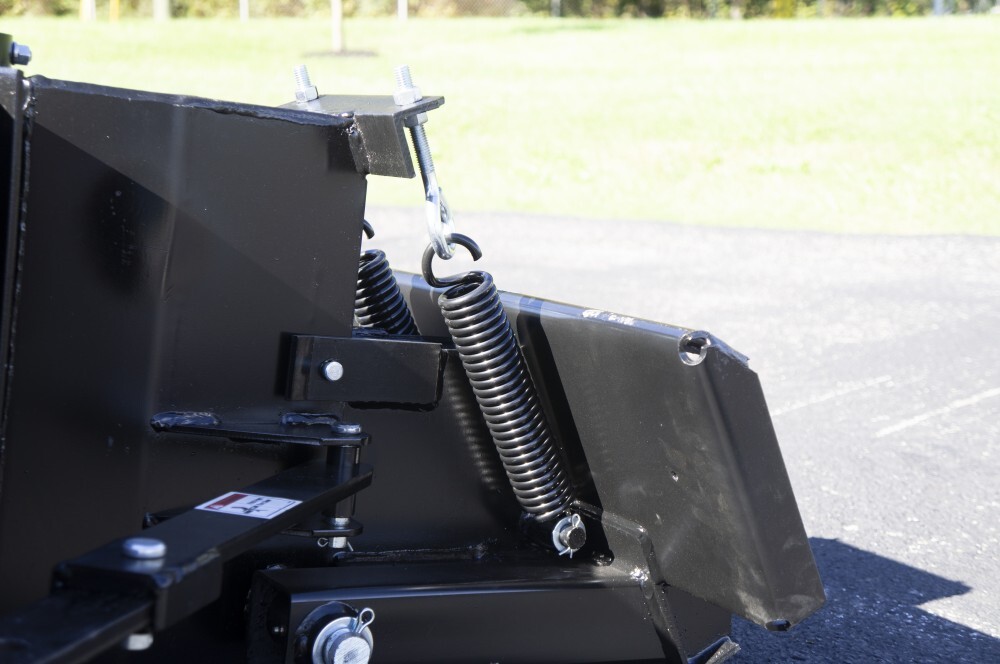

- Quick Application Changeover – Trip lockout for dirt applications
- Rubber Cutting Edge – Removable, Reversible, and Replaceable for longer life.

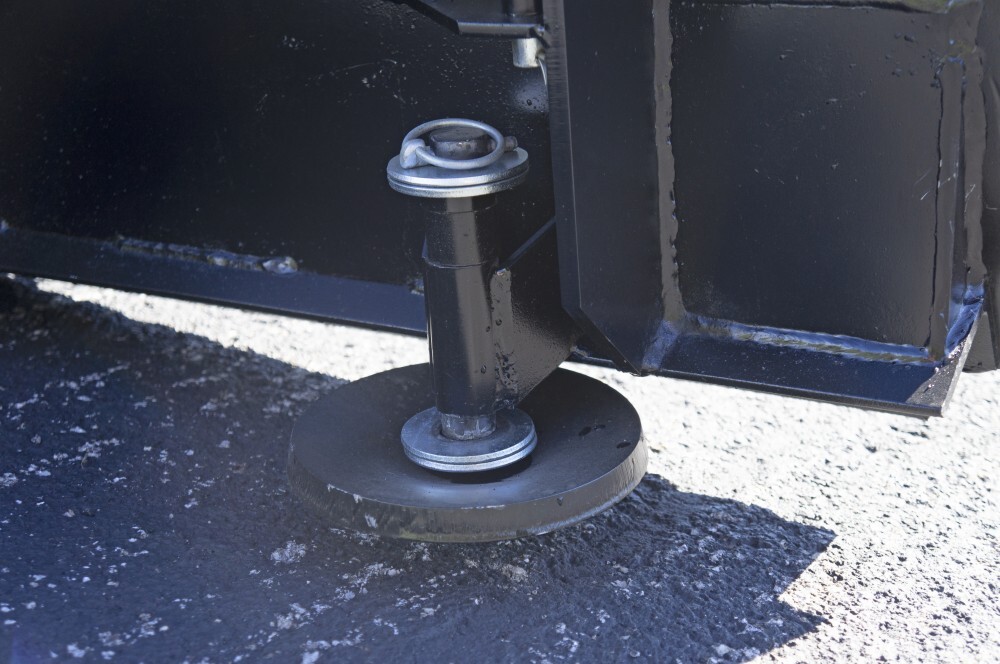

- Adjustable Depth Guides – Control blade height and surface contact precisely
- Rolled One-Piece Steel Blade – Durable, stress-resistant design for superior material flow
- Rugged American-Made Construction – Premium U.S. steel built for extreme conditions
- Optional 8" height extender
- Mini universal and Bobcat MT mount options
| Part Number | Model | Weight |
|---|---|---|
| Part Number122305-25 | Model48” V-Blade, Manual Angle, Mini Universal | Weight315 lbs |
| Part Number122305-26 | Model48” V-Blade, Manual Angle, Bobcat MT | Weight315 lbs |
| Part Number122310-25 | Model60” V-Blade, Manual Angle, Mini Universal | Weight325 lbs |
| Part Number | Model | Weight |
