Power Rake - Heavy Duty Series 2

The Blue Diamond® Heavy Duty Series 2 Power Rake follows close on the heels of our previously released Severe Duty model. This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine.
*Over 3,000 PSI requires a case drain

Find a Dealer

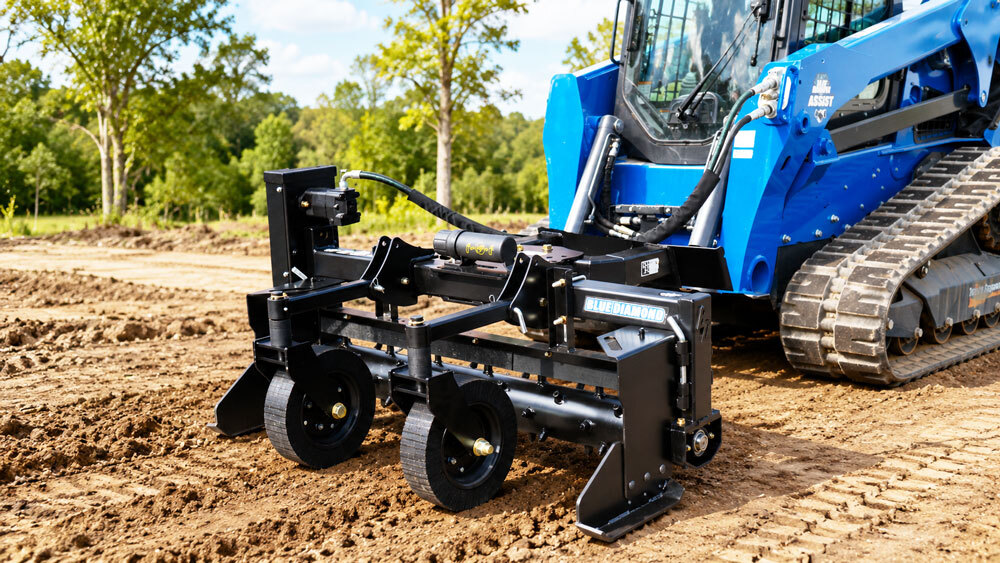

Blue Diamond Power Rake Heavy Duty S2 Attachment 1 SS Power Rake HD Series2 Fixed web Blue Diamond Power Rake Heavy Duty Series 2 Gallery 1 Blue Diamond Power Rake Heavy Duty S2 Gallery 2

Product Details

Download Brochure
  • 7” diameter drum with 1.5” teeth
  • Chain drive unit for increased torque
  • Pre-lubricated chain for easy service
  • Spindles on drum are 1 3/8” diameter in greaseable bearings
  • Drum widths: 48”, 60”, and 72”
  • Overall width 9” more than drum width
  • 7/8” greaseable axles on wheels
  • Airless tires
  • Flip up wheels
  • 1.25” spindles with adjustable height
  • Bolt-on skid shoes, universal wiring harness, and 1/2" hose couplers included
Part Number Model Teeth Recommended Flow Weight
Part Number332400 Model48" Manual Angle with Skid Steer Mount TeethFixed Carbide Recommended Flow15-24 GPM Weight711 lbs
Part Number332401 Model48" Hydraulic Angle with Skid Steer Mount TeethFixed Carbide Recommended Flow15-24 GPM Weight756 lbs
Part Number332402 Model48" Manual Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight713 lbs
Part Number332403 Model48" Hydraulic Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight758 lbs
Part Number332406 Model60" Manual Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight706 lbs
Part Number332407 Model60" Hydraulic Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight751 lbs
Part Number332408 Model72" Manual Angle with Skid Steer Mount TeethFixed Carbide Recommended Flow15-24 GPM Weight899 lbs
Part Number332409 Model72" Hydraulic Angle with Skid Steer Mount TeethFixed Carbide Recommended Flow15-24 GPM Weight947 lbs
Part Number332410 Model72" Manual Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight823 lbs
Part Number332411 Model72" Hydraulic Angle with Skid Steer Mount TeethReplaceable Carbide Recommended Flow15-24 GPM Weight871 lbs
Part Number ModelSkid shoes and universal wiring harness included, 1/2" hose couplers standard. Full angled widths are estimated about 10"-12" less. Teeth Recommended Flow Weight
