Product Details
Download Brochure- High-torque hydraulic drive for powerful, consistent cutting performance.
-
Dual-drum cutting design provides controlled cutting in rock, concrete, and asphalt.
-
Heavy-duty cutting drums built for demanding excavation applications.
-
Aggressive cutter-bit pattern helps increase cutting efficiency and productivity.
-
Durable spur gear drive engineered for tough jobsite conditions.
-
Multiple motor options help match the grinder to the excavator’s hydraulic flow.
-
Low vibration and reduced noise make it well suited for urban and sensitive jobsites.
-
Clean, controlled cutting helps maintain trench dimensions and finished profiles.
-
Cuts material up to 25,000 PSI UCS, depending on model and application.
-
Replaceable cutting bits simplify routine wear-part maintenance.
-
Multiple sizes available for compact, mid-size, and large excavators.
- Made in the USA.
| Part Number | Model | Cutting Width | Head Diameter | Required Flow (GPM) | Excavator Class | Mount Size | Weight (Without Mount) |
|---|---|---|---|---|---|---|---|
| Part Number159010 | ModelG1S | Cutting Width19" | Head Diameter9" | Required Flow (GPM)5-12 | Excavator Class2,000-6,000 lbs | Mount Size18 X 19 | Weight (Without Mount)265 lbs |
| Part Number159015 | ModelG1 | Cutting Width21" | Head Diameter11" | Required Flow (GPM)8-20 | Excavator Class4,000-16,000 lbs | Mount Size18 X 19 | Weight (Without Mount)635 lbs |
| Part Number159020 | ModelG2 | Cutting Width25" | Head Diameter16.5" | Required Flow (GPM)12-26 | Excavator Class10,000-30,000 lbs | Mount Size18 X 19 | Weight (Without Mount)1,035 lbs |
| Part Number159025 | ModelG3 | Cutting Width31" | Head Diameter22″ | Required Flow (GPM)30-45 | Excavator Class24,000-40,000 lbs | Mount Size24 X 24 | Weight (Without Mount)2,045 lbs |
| Part Number159030 | ModelG3XL | Cutting Width32" | Head Diameter23" | Required Flow (GPM)34-65 | Excavator Class30,000-56,000 lbs | Mount Size24 X 24 | Weight (Without Mount)2,290 lbs |
| Part Number159035 | ModelG4 | Cutting Width40" | Head Diameter29" | Required Flow (GPM)50-85 | Excavator Class50,000-90,000 lbs | Mount Size24 X 24 | Weight (Without Mount)4,100 lbs |
Precision Cutting. Serious Production.

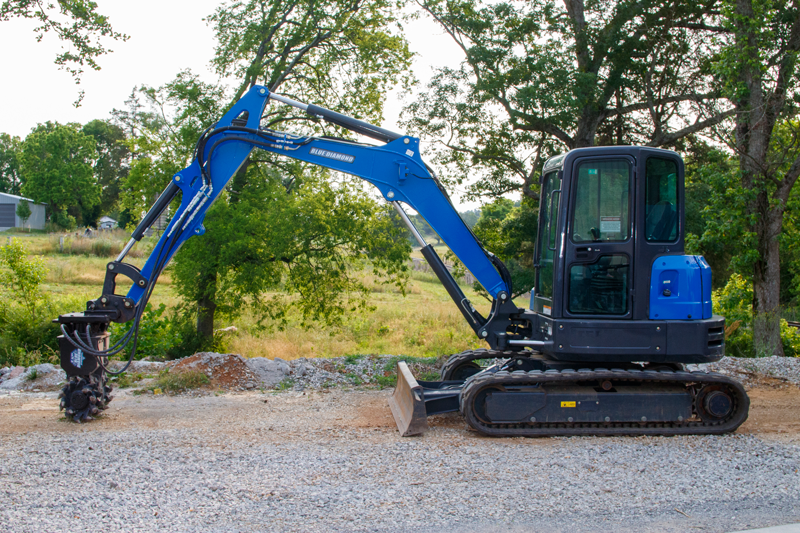

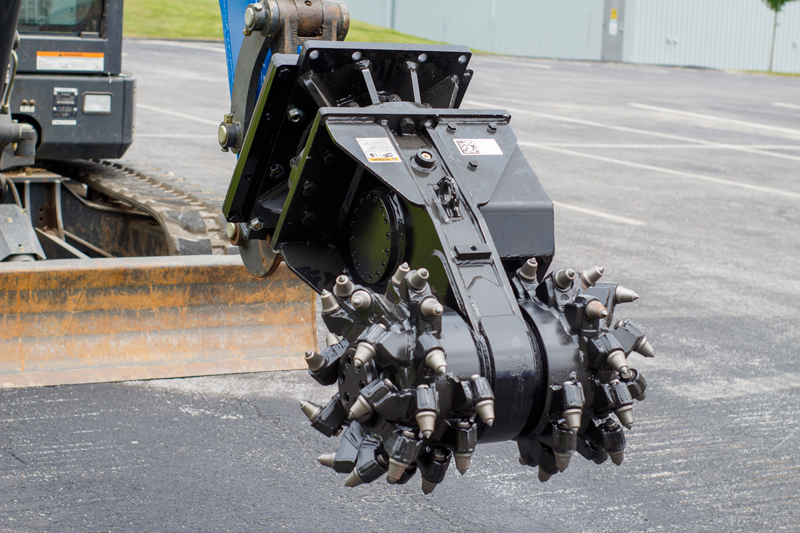

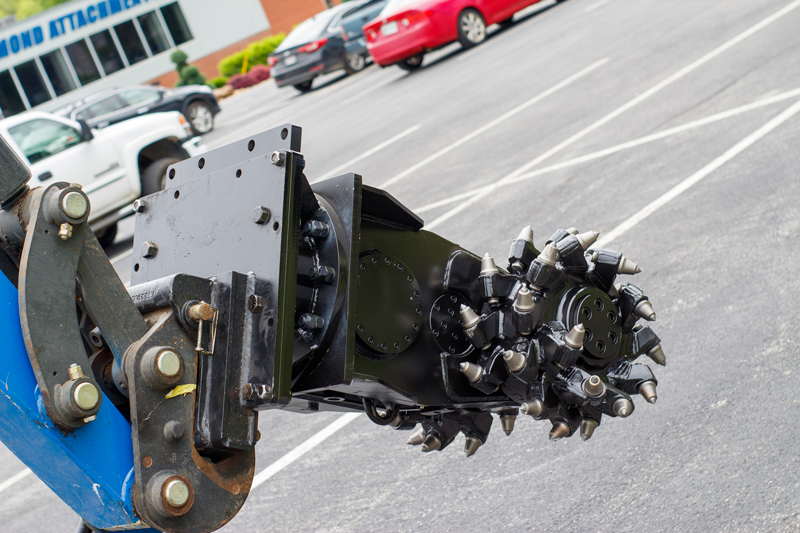

The Blue Diamond® Rock & Concrete Grinder delivers controlled, high-torque cutting performance for excavators working in rock, concrete and asphalt. Built for demanding excavation applications, the transverse dual-drum design concentrates cutting force directly into the material to efficiently grind, profile and remove material while maintaining greater control over the finished cut.
From utility trenching and concrete removal to tunneling, scaling and mass rock excavation, this attachment provides a precise alternative for applications where conventional excavation methods can create excessive vibration or leave an uneven profile. Powerful hydraulic motors, durable spur gears and rugged cutting drums are engineered for dependable production in demanding conditions.
With models available for compact through large excavators, Blue Diamond Rock & Concrete Grinders can be matched to the carrier, hydraulic output and application for efficient performance across a wide range of jobs.
CONTROL THE CUT
Traditional breaking methods fracture material. The Blue Diamond Rock & Concrete Grinder cuts and removes it progressively, giving the operator greater control over excavation depth, wall profile and finished dimensions.
That makes the grinder especially valuable when the job calls for precision. During trenching, the cutter can produce clean trench walls while limiting disturbance outside the desired excavation area. During concrete removal or profiling, operators can selectively remove material instead of breaking a larger area than necessary. In tunneling and confined excavation, low vibration can also help reduce disruption to surrounding material and structures.
HIGH TORQUE. CONTROLLED PRODUCTION.
The cutter drums are driven by powerful hydraulic motors through a rugged spur-gear transmission. The combination of high torque, cutting force and an aggressive cutter-bit arrangement keeps the drums working continuously through challenging material.
Available motor displacement options also allow the attachment to be configured around the excavator's hydraulic capabilities, helping match cutter performance to the machine instead of relying on a one-size-fits-all hydraulic setup.
BUILT FOR MORE THAN ROCK
The versatility of a transverse drum cutter makes it a productive attachment across construction, utility, infrastructure, demolition and mining applications.
| Application | Application Benefit |
|---|---|
| Rock Excavation | Controlled removal of soft through hard rock with consistent material sizing |
| Utility Trenching | Clean trench profiles and greater control over trench width |
| Pipeline Construction | Productive excavation through rock without relying solely on breakers |
| Concrete Removal | Selective removal and profiling of concrete |
| Demolition | Controlled cutting in applications where vibration can be a concern |
| Tunneling | Precision excavation, profiling, enlargement and rehabilitation |
| Scaling | Controlled removal of loose or uneven rock surfaces |
| Mining & Quarrying | Continuous cutting for excavation and material removal |
| Foundation Work | Precise excavation around structures and defined elevations |
| Road Work | Cutting and removal of concrete, asphalt and rock |
