SKID STEER ATTACHMENTS
SIX WAY DOZER BLADE

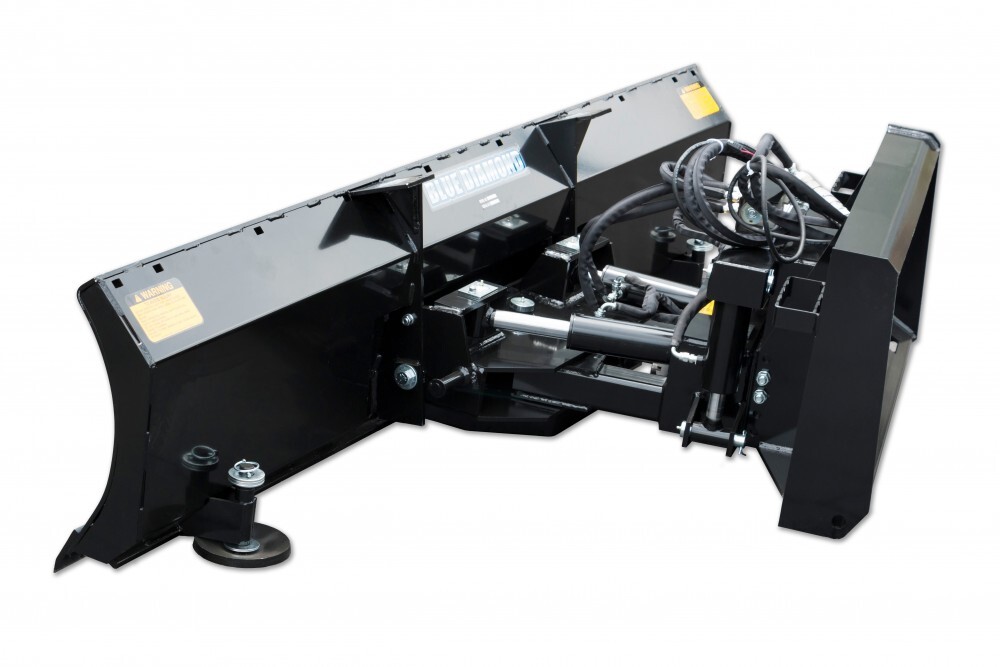

The Blue Diamond® Skid Steer Six Way Dozer Blade is engineered for operators who demand rugged performance, precision control, and versatile functionality. Designed for high-horsepower skid steers, this professional-grade blade tackles dirt, snow, rock, and material movement with ease. Its proven pivot system allows hydraulic tilt up to 10° and angle up to 30°, giving operators precise grading and contouring capabilities. With a universal skid steer mount and seamless electro-hydraulic controls, this blade puts full control at your fingertips while maintaining superior visibility and durability.
Built for maximum efficiency, the 6-Way Dozer Blade features a heavy-duty rolled steel moldboard, replaceable ½" cutting edge, and optional 8" height extension for increased material capacity. Skid shoes protect the blade and work surface, while trip override pins and optional trip springs make it easy to convert to a snow plow. Every component, from cylinder pins to hydraulic and electrical protections, is designed to withstand tough conditions and extend service life. Available in 72", 84", and 96" widths and proudly made in the USA with American steel, this blade is a versatile powerhouse for any dirt or snow project.
Product Details
Download Brochure- Available in 72", 84", and 96" widths
- 6-Way Control: Tilt up/down 10°; angle left/right 30° for precise grading and contour work
- 22" blade height with optional 8" extension for increased capacity
- 10-gauge rolled steel moldboard
- Reinforced steel boxed frame design
- Heavy 1/2" replaceable steel cutting edge
- Electro-Hydraulic angle control with double hydraulic cylinders
- Trip lockout function for dirt work
- Optional trip springs for snow removal
- Made in the USA
- Recommended for skid steers over 50 HP
- Includes Universal Control Switch and Harness (200010)
- Universal skid steer mount
| Part Number | Model | Max Width Angle | Height | Weight |
|---|---|---|---|---|
| Part Number323065 | Model72" HD Dozer Blade, Series 2 | Max Width Angle62.375″ | Height22″ | Weight905 lbs |
| Part Number232505-KIT | Model72" Beveled Cutting Edge Kit with Hardware | Max Width Angle— | Height— | Weight36 lbs |
| Part Number123045 | Model8" Height Extension for 72" - req. 8 bolts (299432), lock washers (299830), and handle nuts (223062) | Max Width Angle— | Height— | Weight40 lbs |
| Part Number323070 | Model84" HD Dozer Blade, Series 2 | Max Width Angle72.75″ | Height22″ | Weight1,015 lbs |
| Part Number223510-KIT | Model84" Beveled Cutting Edge Kit with Hardware | Max Width Angle— | Height— | Weight43 lbs |
| Part Number123050 | Model8" Height Extension for 84" - req. 9 bolts (299432), lock washers (299830), and handle nuts (223062) | Max Width Angle— | Height— | Weight45 lbs |
| Part Number323075 | Model96" HD Dozer Blade, Series 2 | Max Width Angle83.125″ | Height22″ | Weight1,125 lbs. |
| Part Number223515-KIT | Model96" Beveled Cutting Edge Kit with Hardware | Max Width Angle— | Height— | Weight58 lbs |
| Part Number123055 | Model8" Height Extension for 96" (req. 10 bolts (299432), lock washers (299830), and handle nuts (223062) | Max Width Angle— | Height— | Weight52 lbs |
| Part Number223700 | ModelTrip Springs Kit (Set of 4) | Max Width Angle— | Height— | Weight14 lbs |
