Product Details
Download Brochure- Available in 60", 72", 84", and 96" widths
- Adjustable ripping depth from approximately 6" to 10"
- 4 adjustable tine depth settings
- Replaceable ripper shanks
- Shanks are reversible for forward or reverse operation
- Additional shanks available for increased coverage
- Tines can be positioned at approximately 8" spacing
- Heavy-duty powder-coated steel construction
- Optional bolt-on finishing rake helps break apart soil clumps and smooth the surface
- Universal skid steer mount
- 1-year warranty
| Part Number | Model | Weight |
|---|---|---|
| Part Number170210 | Model60” Ripper Skid Steer Mount | Weight300 lbs |
| Part Number170215 | Model72” Ripper Skid Steer Mount | Weight405 lbs |
| Part Number170225 | Model84” Ripper Skid Steer Mount | Weight419 lbs |
| Part Number170230 | Model96” Ripper Skid Steer Mount | Weight519 lbs |
| Part Number170310 | ModelOptional, Finish Rake 60” | Weight440 lbs |
| Part Number170315 | ModelOptional, Finish Rake 72” | Weight487 lbs |
| Part Number170325 | ModelOptional, Finish Rake 84” | Weight512 lbs |
| Part Number170330 | ModelOptional, Finish Rake 96” | Weight554 lbs |
| Part Number | Model | Weight |
Built for Ground Preparation
The Blue Diamond Skid Steer Ripper provides a straightforward mechanical solution for jobs where a bucket alone may struggle to penetrate hard ground. Its heavy-duty steel frame transfers the skid steer's power into the adjustable shanks, helping loosen compacted soil and expose buried roots and rocks before grading or additional soil preparation.
With no hydraulic connections or moving hydraulic components required, the attachment is simple to operate and easy to put to work.
Ideal Applications
- Breaking hard-packed soil
- Farm and field preparation
- Garden preparation
- Seedbed preparation
- Driveway renovation
- Loosening rocky ground
- Root disruption
- Preparing soil before grading
- Landscape renovation
- Property maintenance
- Loosening previously undisturbed ground

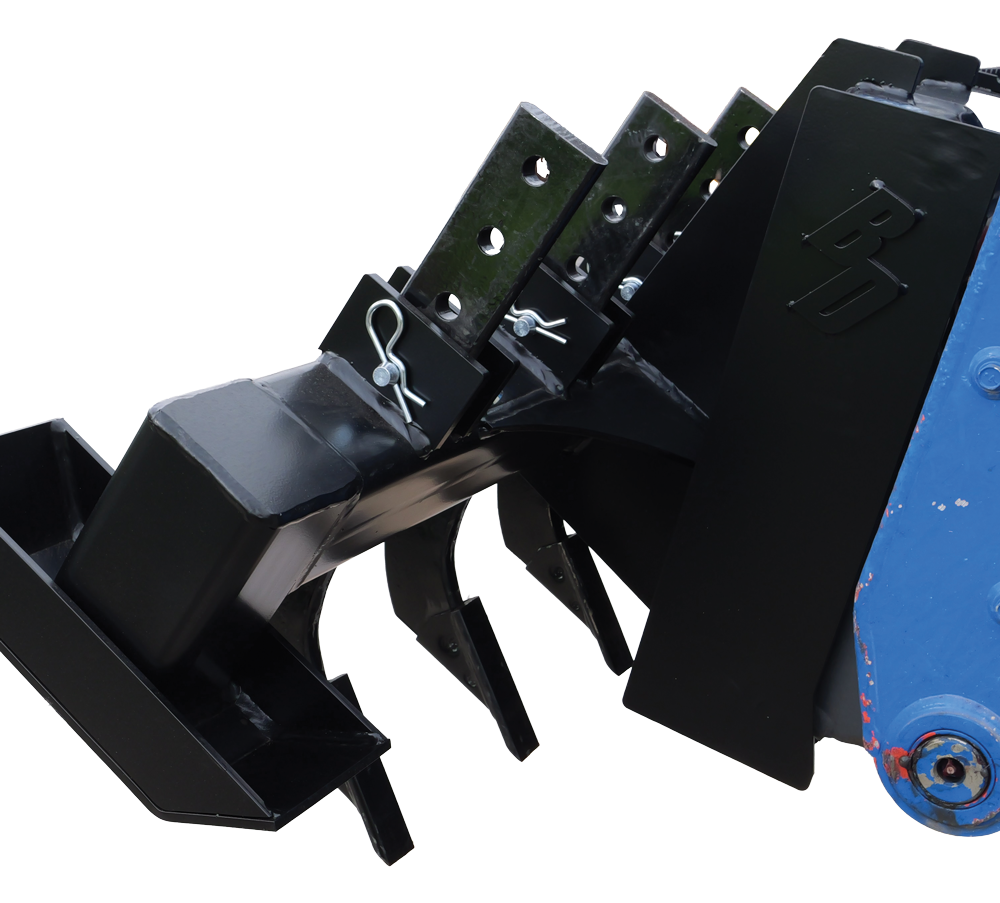

Adjustable Ground Penetration
Different ground conditions require different levels of penetration. The Blue Diamond Skid Steer Ripper provides four tine depth settings, allowing operators to adjust the shanks from approximately 6" to 10" deep.
Use shallower settings for surface preparation and loosening material, or increase penetration when breaking hard-packed soil, disturbing roots, or preparing ground that hasn't been worked in years.
Configure the Tines for Your Application

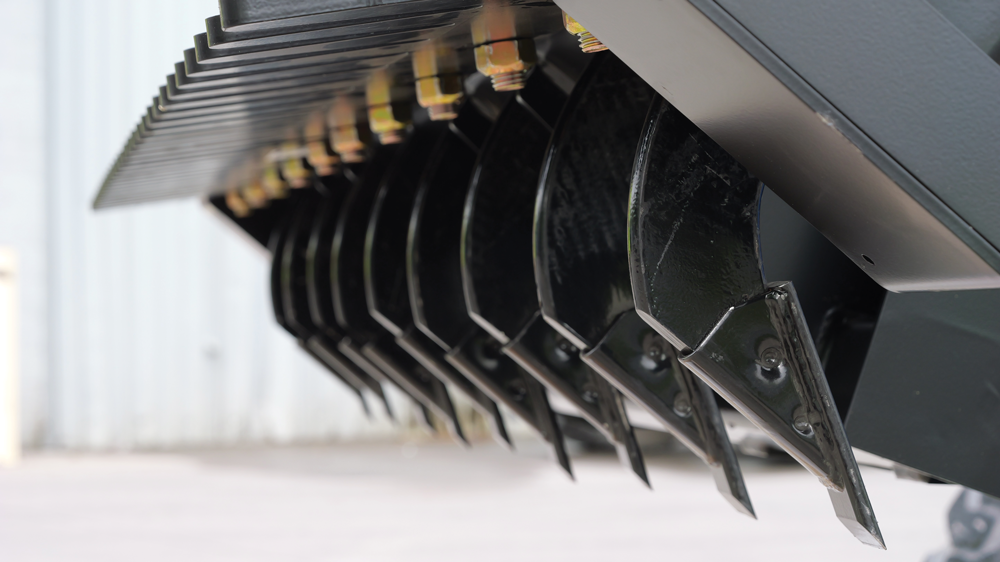

The replaceable ripper shanks can be configured to match the width of the attachment and desired working pattern.
- 60" and 72" models: 5 tines standard; accepts up to 9
- 84" model: 6 tines standard; accepts up to 11
- 96" model: 7 tines standard; accepts up to 13
Adding shanks allows operators to achieve closer spacing for more complete soil disturbance, while fewer shanks concentrate the machine's breakout force for tougher ground penetration.
Rip Forward or Reverse
The ripper shanks are reversible, giving operators the flexibility to work the attachment while traveling forward or backward.
This capability is especially useful when working around buildings, along driveways, near landscaping, or in other areas where maneuverability is limited. It also allows operators to select the direction that provides the best visibility and machine performance for the job.

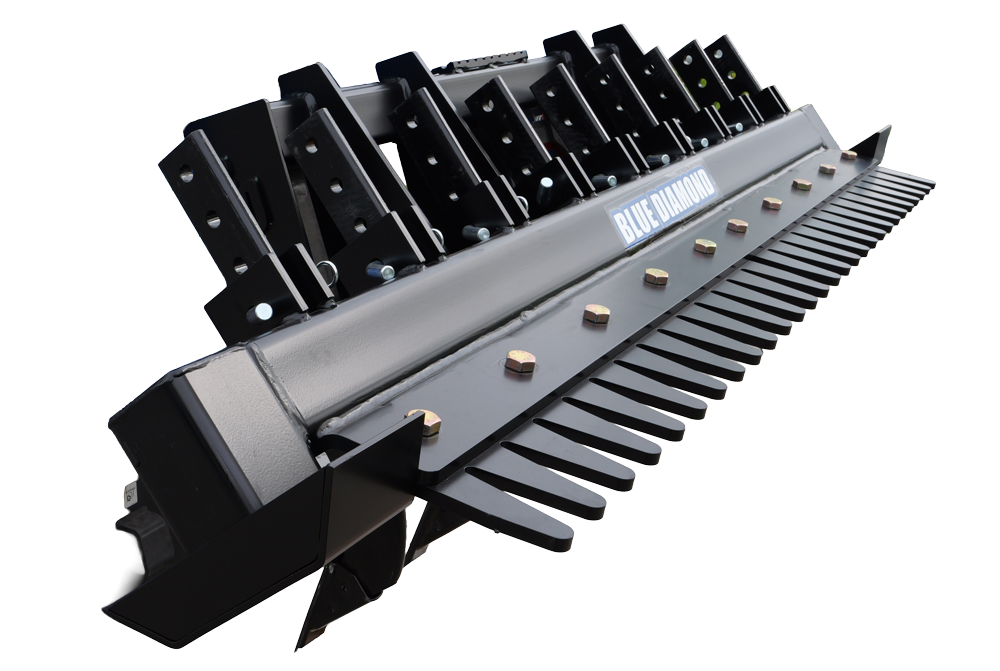

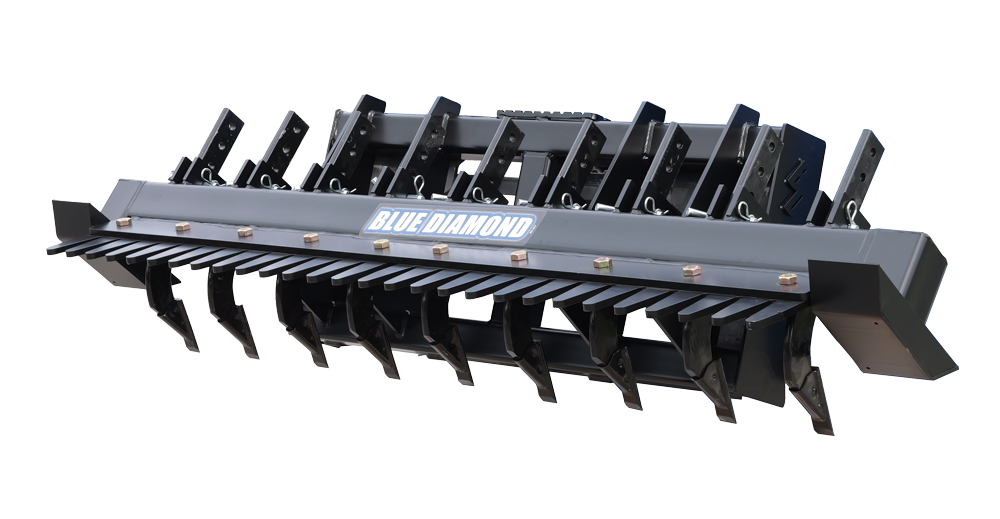

Add a Finishing Rake
Breaking compacted ground is often only the first step in site preparation.
An optional bolt-on finishing rake can be added behind the ripper shanks to help break apart clumps of loosened soil and smooth the surface as the machine travels.
This combination allows the ripper to penetrate and loosen difficult ground while the finishing rake helps prepare the surface for applications such as:
- Garden preparation
- Seedbed preparation
- Landscape renovation
- Driveway maintenance
- Lawn installation
- General site preparation
