Product Details
Download Brochure- Available in 47" and 60" bucket widths
- 9.18 and 12.42 cubic foot bucket capacities
- Flexible polyurethane star rotors separate material without crushing or shredding
- Carbon fiber reinforced self-tensioning belt drive
- Stainless steel non-stick bucket floor minimizes material buildup
- Heavy-duty multi-layer shell construction
- Reinforced HB400 cutting edge and wear areas
- Sealed bearings for reduced maintenance
- Hydraulic flow regulator included for optimum rotor speed
- Adjustable stripper plate improves screening performance
- Interchangeable comb kits allow multiple screening sizes
- Hoses and couplers included
- Universal skid steer mount
| Part Number | Model | Rotors | Max Flow | Max PSI | Capacity CU FT | Weight |
|---|---|---|---|---|---|---|
| Part Number345010 | Model47" Heavy Duty Screening Bucket | Rotors3 | Max Flow17 GPM | Max PSI2,900 | Capacity CU FT9.18 | Weight928 lbs |
| Part Number345015 | Model60" Heavy Duty Screening Bucket | Rotors3 | Max Flow18 GPM | Max PSI2,900 | Capacity CU FT12.42 | Weight1,325 lbs |
Built for Maximum Screening Performance

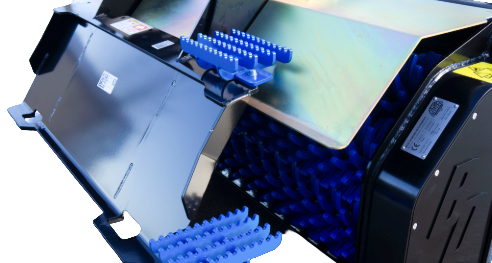

Flexible Polyurethane Star Technology
Blue Diamond's screening system uses durable polyurethane stars that gently separate material while maintaining consistent screening performance. Unlike rotating steel drums that can damage valuable materials, the flexible star design preserves aggregate, compost, mulch, and topsoil while efficiently separating oversized debris.
Exceptional Performance in Wet Material
Sticky clay and damp soils often clog conventional screening systems. The flexible star rotors continuously flex during operation, helping release sticky material and maintain productivity even in challenging conditions.
Carbon Belt Drive
A heavy-duty self-tensioning carbon belt drive transfers power efficiently while eliminating routine lubrication requirements. The enclosed design helps reduce maintenance and extends component life in dusty and abrasive environments.
Heavy-Duty Construction
Every Blue Diamond Screening Bucket features a reinforced multi-layer monocoque shell, HB400 wear protection, sealed bearings, and a stainless steel bucket floor engineered to withstand demanding commercial applications.
Ideal Applications
- Topsoil production
- Landscape material preparation
- Compost screening
- Aggregate separation
- Mulch processing
- Construction site cleanup
- Demolition recycling
- Biomass processing
- Utility backfill preparation
- Soil conditioning
- Nursery and landscaping operations
- Municipal maintenance
- Agricultural material handling
Increase Productivity While Reducing Costs
Instead of hauling material away for processing—or purchasing replacement material—Blue Diamond Screening Buckets allow contractors to recycle and reuse material directly on the jobsite. By combining loading and screening into one operation, operators reduce labor, equipment, transportation, and disposal costs while producing high-quality screened material ready for immediate use.
From residential landscaping projects to commercial construction and municipal maintenance, Blue Diamond Screening Buckets help contractors complete more work with fewer machines and lower operating costs.
