SKID STEER ATTACHMENTS

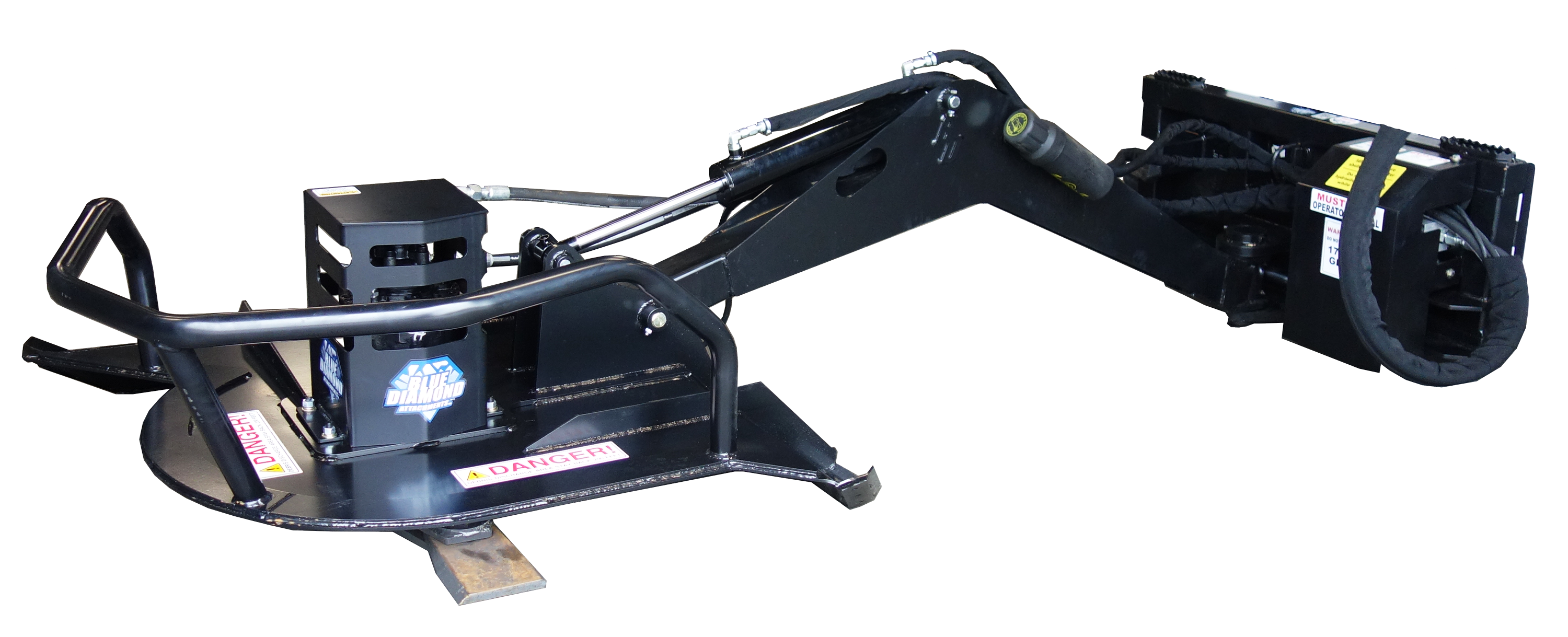

SWING ARM BRUSH CUTTER

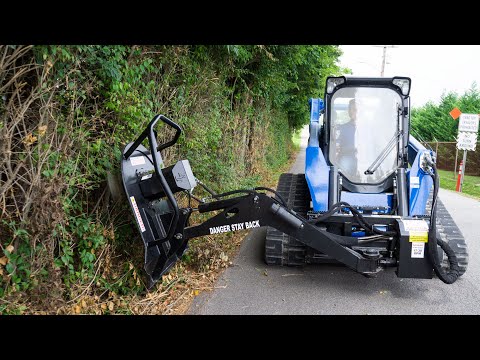

The Blue Diamond® Swing Arm Brush Cutter is a powerful, high-reach attachment built to tackle the toughest vegetation management tasks. Designed for cutting banks, right-of-ways, pond edges, and fence lines, this brush cutter provides a reach advantage far beyond a standard cutter — making it ideal for clearing areas that are hard to access or uneven.
Whether you’re maintaining trails, managing roadside growth, or clearing overgrown areas, the swing boom design gives operators greater flexibility and efficiency. With horizontal reach up to 8 feet and vertical reach up to 16 feet, you can trim or cut from multiple angles without constantly repositioning your skid steer.
Product Details
Download Brochure- 44" cutting width
- 4" cutting capacity
- 8' horizontal and 16' vertical reach — perfect for slopes, ditches, and banks
- Direct drive with 14-20 GPM or 17-30 GPM motor options (max 4000 PSI)
- 3" x 16" tilt cylinder on the swing arm for precise positioning and control
- Two double-sided 5/8" AR400 steel blades mounted on a 5/8" thick blade carrier
- Compatible with universal, 8-pin, or 14-pin wiring harnesses for quick installation and use
- Case drain required
- Minimum skid steer weight: 6,500 lbs (tracked loaders recommended for superior stability).
| Part Number | Model | Required Flow | Weight |
|---|---|---|---|
| Part Number103870 | Model44" - Swing Arm Brush Cutter - Geroler motor | Required Flow14-20 GPM | Weight845 lbs |
| Part Number103875 | Model44" - Swing Arm Brush Cutter - Piston motor | Required Flow17-30 GPM | Weight1,203 lbs |
