SKID STEER ATTACHMENTS
SWING ARM STUMP GRINDER

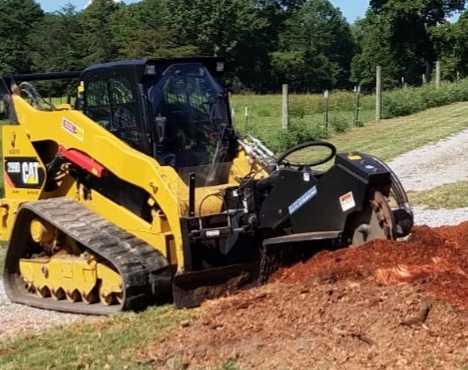

The Blue Diamond® Skid Steer Swing Arm Stump Grinder is an incredibly effective tool for commercial stump grinding, delivering maximum torque, and fast cutting performance. Powered by a high-torque radial piston motor, it grinds stumps in both forward and reverse for increased productivity and efficiency.
A 26" heavy-duty 1" thick grinding wheel uses dual-direction Greenteeth® for aggressive cutting and extended life. With built-in cushioning to reduce overload and simple maintenance with easy tooth rotation, this attachment turns any skid steer’s hydraulic power into fast, reliable results for professional land-clearing jobs. These models allow 6-way cutting positioning (up/down, side/side, in/out) and can be operated using the OEM controls or a universal control box.
Product Details
Download Brochure- Cutting width: 26" (660 mm)
- Best suited for machines with 50-95 HP
- 6-way cutting positioning (up/down, side/side, in/out)
- Flow range low/high: 29–45 GPM
- High-torque radial piston motor with 3 high-flow options
- Dual-direction 26″ grinding wheel with 30 durable carbide teeth on both sides
- Teeth rotate 180° for extended cutting life
- Heavy-duty 1" (25 mm) thick grinding wheel cuts 12" below ground level
- Chain guard for debris and push blade for backfill
- Integrated cushioning device protects wheel from overload
- Case drain required
- Minimum ½” thick polycarbonate operator protection required
- Universal skid steer mount
- 26" Stump Grinder (30 Carbide Teeth and Nuts) - Replacement Tooth Kit (204505-KIT-HF)
| Part Number | Model | Flow Range | Motor | Wheel Size | Teeth | Weight |
|---|---|---|---|---|---|---|
| Part Number104605 | ModelSwing Arm Stump Grinder | Flow Range29-33 GPM | Motor130 CC | Wheel Size26" | Teeth30 | Weight1,740 lbs |
| Part Number104610 | ModelSwing Arm Stump Grinder | Flow Range33-39 GPM | Motor150 CC | Wheel Size26" | Teeth20 | Weight1,740 lbs |
| Part Number104615 | ModelSwing Arm Stump Grinder | Flow Range39-45 GPM | Motor170 CC | Wheel Size26" | Teeth20 | Weight1,740 lbs |
