Product Details

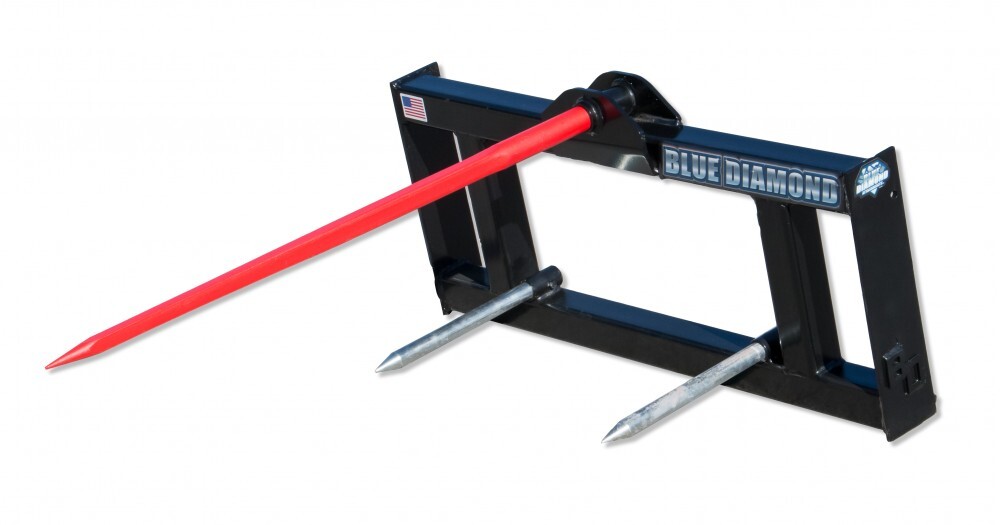

Download Brochure- Single, Double, and Quad Tine Configurations — Options for round and large square bales.
- 3,500 lb Rated Spear Tines — German-made tines built for strength and durability.
- Multiple Spear Lengths & Frame Widths — Choose the size that best fits your machine and application.
- Replaceable Stabilizers — Serviceable components help extend attachment life.
- Heavy-Duty Steel Construction — Built for dependable everyday use on farms and ranches.
- Optional Bolt-On Back Rack — Adds support for larger loads and bale handling.
- Euro-Ag/Global and Universal Skid Steer mounts available.
- 1-year attachment warranty and 2-year warranty on spear tines.
| Part Number | Model | Width | Spear Length | Mount | Weight |
|---|---|---|---|---|---|
| Part Number311006-16 | ModelHay Spear W/ Standard Stabilizers | Width45" | Spear Length48" | MountEuro-Ag/Global | Weight165 lbs |
| Part Number311008-16 | ModelHay Spear W/ HD Stabilizers | Width45" | Spear Length48" | MountEuro-Ag/Global | Weight160 lbs |
| Part Number311010-16 | ModelDouble Bottom Hay Spear | Width45" | Spear Length48" | MountEuro-Ag/Global | Weight180 lbs |
| Part Number311011-16 | ModelDouble Bottom Hay Spear W/Rack | Width45" | Spear Length48" | MountEuro-Ag/Global | Weight218 lbs |
| Part Number311045-16 | ModelQuad Bottom Hay Spear | Width45" | Spear Length48" | MountEuro-Ag/Global | Weight262 lbs |
