SKID STEER ATTACHMENTS

ROAD SAW

Blue Diamond® high flow road saws offer high rates of production at a substantially lower cost than smaller, self-propelled wheel saws. Our high flow skid steer road saws are offered in cutting depths up to 10- or 18-inches! All feature planetary reduction drives, which efficiently provide maximum cutting torque under load. All saws utilize a ground-engaging frame, which provides accurate depth of cut control. This means the frame is in contact with the ground during the cutting operation, and the cutting wheel moves up and down within this frame, giving the operator the ability to maintain control of the cut.

Find a Dealer

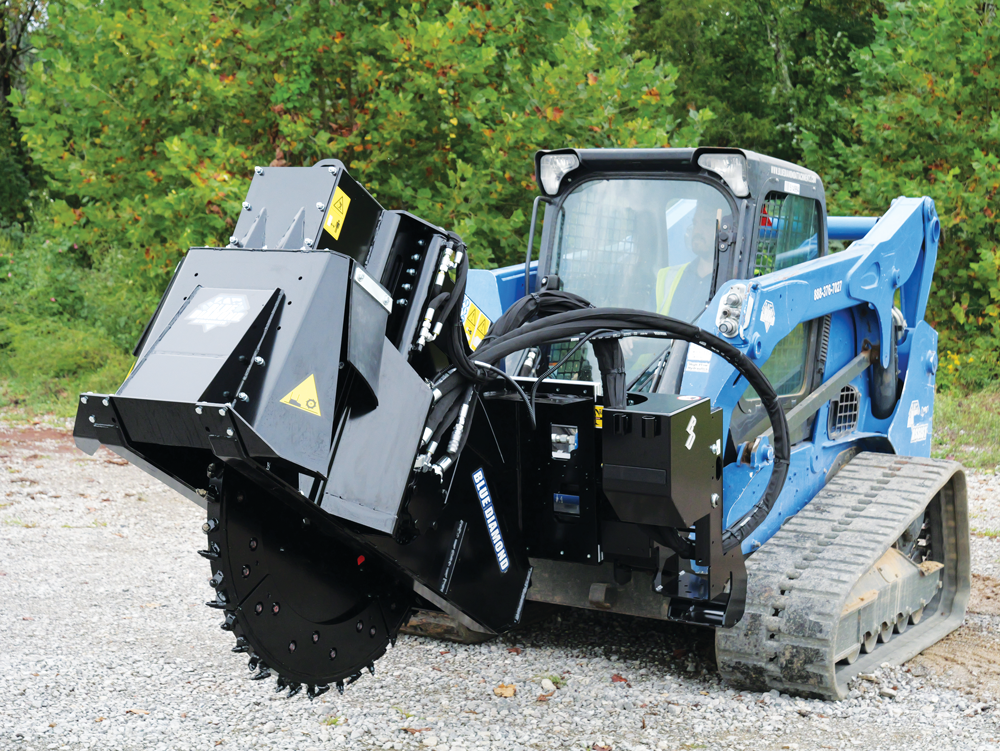

Blue Diamond Road Saw Skid Steer Attachments 1

Product Details

Download Brochure

Hydraulic Cutting Depth: 10in Model = 0 to 10 inches; 18in Model = 0 to 18 inches
Hydraulic Sideshift: 0 to 26 inches
Available Cutting Wheels: 10in Model = 2.5 & 4.5 inch, 18in Model = 3.0, 4.5 & 6.0- inch
Requires High Flow Hydraulics at a minimum of 30 GPM at 2,500 PSI

Part Number	Model	Weight
161000	10" Cut Depth, Road Saw (Req Cutting Wheel)	1,196 lbs
161005	18" Cut Depth, Road Saw (Req Cutting Wheel)	1,172 lbs
161505	10" Depth X 2.5"W Cutting Wheel	127 lbs
161510	10" Depth X 4.5"W Cutting Wheel	165 lbs
161530	18" Depth X 3"W Cutting Wheel	372 lbs
161533	18" Depth X 4.5"W Cutting Wheel	426 lbs
161535	18" Depth X 6"W Cutting Wheel	481 lbs

Model	Min GPM/PSI	Cut Width	Cut Depth	Sideshift	Max Torque	Overall Height	Overall Width
161000-HP	27/2750	2.5", 4.5"	0" - 10"	26"	–	–	66"
161005-HP	32/3000	3", 4.5", 6"	0" - 18"	26"	4500 lb/ft	60"	66"
