EXCAVATOR ATTACHMENTS

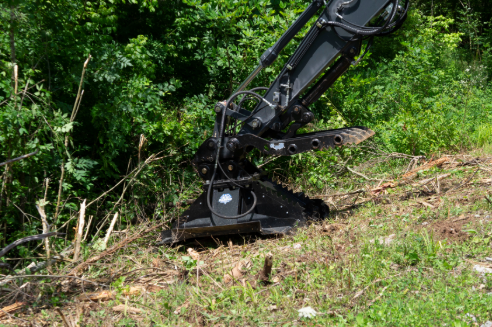

60″ EXTREME DUTY EXCAVATOR CUTTER

The Blue Diamond® Extreme Duty Excavator Brush Cutter is built for demanding land-clearing and vegetation management applications. Designed for 28,000–38,000 lb excavators, it features a high-torque 150cc piston motor, direct-drive system, and three AR400 steel blades to cut brush and trees up to 6 inches in diameter. The cutaway deck design improves access to larger material while delivering a cleaner finish in grass and vegetation.

Engineered for durability, this cutter includes a reinforced deck, 1-inch thick blade carrier, enclosed motor housing, grease-filled drive system, and bearing seal protection kit to maximize uptime and service life. Ideal for slopes, waterways, railways, utility corridors, and other hard-to-reach areas, it delivers powerful cutting performance where traditional mowing equipment cannot operate.

Product Details

Download Brochure
  • 60" cutting width
  • 6" maximum cutting capacity
  • 150cc high-torque piston motor
  • Direct-drive system
  • Three double-sided 4" AR400 steel drop-down blades
  • 1" thick blade carrier
  • Reinforced steel deck
  • Cutaway side design
  • Removable debris discharge covers
  • Fully enclosed motor housing
  • Rear material-handling teeth
  • Serrated thumb-side edge for brush and log handling
  • Bearing seal protection kit under deck
  • Grease-filled drive system
  • Removable side access panel
  • Host machine must have case drain
  • 24" x 24" mount plate
  • 60" Extreme Duty - Replacement Blade Kit (203028-KIT)
Part Number Model Best Flow Weight
Part Number103850 Model60” Excavator, Extreme Duty, 150CC Piston Motor Best Flow22-30 GPM Weight1,200 lbs.*
Part Number Model*Attachment only. Mount weight is additional and varies by machine. Best Flow Weight
