SKID STEER ATTACHMENTS

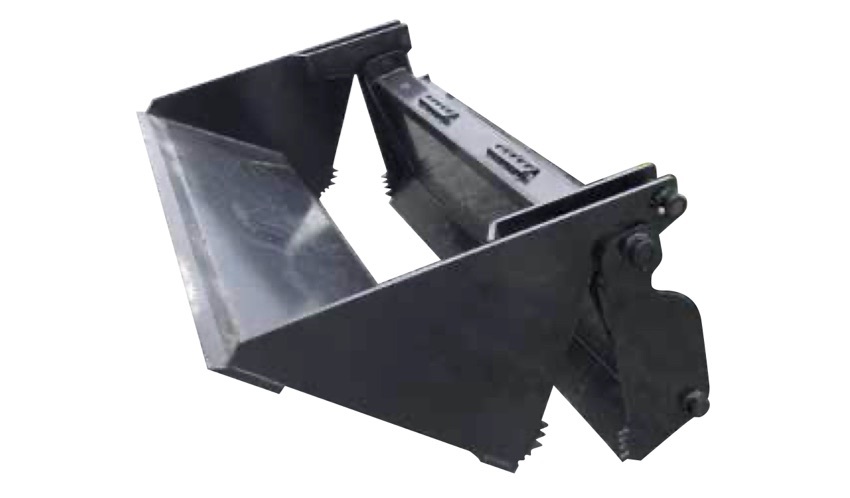

BUCKET — 4-IN-1
The Blue Diamond® Skid Steer 4-in-1 Bucket combines four essential tools into one rugged attachment—bucket, grapple, dozer blade, and back-drag edge—maximizing versatility and productivity on the jobsite. Designed for skid steers and compact track loaders, it allows operators to dig, load, clamp, push, and fine-grade without changing attachments.
Built for long-term performance, this heavy-duty combination bucket features dual hydraulic cylinders, oversized greaseable pins and bushings, and AR400 cutting edges for exceptional strength and durability. Smart hose routing protects hydraulic lines, while optional features such as teeth, bolt-on cutting edges, and a pilot-operated check valve enhance control and customization.
Ideal for construction, land clearing, landscaping, and material handling, the Blue Diamond® 4-in-1 Bucket turns your machine into a true multi-purpose workhorse.
Product Details
Download Brochure- 60", 66", 72", 78", and 84" widths
- 39″ bucket opening
- Dual 2.5" bore x 8" stroke hydraulic cylinders
- 1/4" reinforced steel floor plate and 1/2" steel side plates
- 1.5″ thick hinge pins and greaseable pivot points
- Heavy-duty 3/4" × 6" AR400 front cutting edge
- 5/8" × 6" AR400 bolt-on reversible double rear dozer edge
- Weld on shanks and teeth available
- Optional bolt-on front cutting edge
- Treaded Step Plate
- Universal skid steer mount
| Part Number | Model | Struck Capacity | Weight |
|---|---|---|---|
| Part Number108776 | Model60" 4-in-1, W/Teeth | Struck Capacity12 cu ft | Weight855 lbs |
| Part Number108780 | Model66" 4-in-1, W/Smooth Edge | Struck Capacity13.9 cu ft | Weight862 lbs |
| Part Number108781 | Model66" 4-in-1, W/Teeth | Struck Capacity13.9 cu ft | Weight750 lbs |
| Part Number108785 | Model72" 4-in-1, W/Smooth Edge | Struck Capacity15.2 cu ft | Weight908 lbs |
| Part Number108786 | Model72" 4-in-1, W/Teeth | Struck Capacity15.2 cu ft | Weight981 lbs |
| Part Number108790 | Model78" 4-in-1, W/Smooth Edge | Struck Capacity16.5 cu ft | Weight979 lbs |
| Part Number108791 | Model78" 4-in-1, W/Teeth | Struck Capacity16.5 cu ft | Weight959 lbs |
| Part Number108795 | Model84" 4-in-1, W/Smooth Edge | Struck Capacity17.7 cu ft | Weight1,085 lbs |
| Part Number108796 | Model84" 4-in-1, W/Teeth | Struck Capacity17.7 cu ft | Weight1,240 lbs |
