SKID STEER ATTACHMENTS

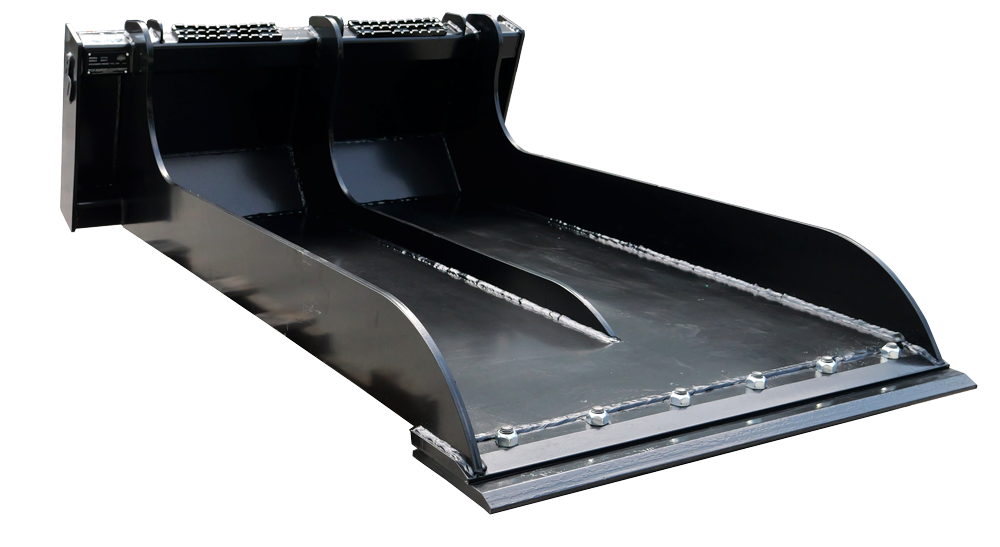

BUCKET — QUARRY
The Blue Diamond® Skid Steer Quarry Bucket is built to perform in the toughest conditions, this heavy-duty bucket is engineered for reliability, strength, and long-term performance. Featuring reinforced steel construction, a rugged quick-attach system, and durable wear components, it’s designed to handle demanding jobs day in and day out. From quarry operations to material handling around conveyor systems, this bucket delivers the strength and durability needed to keep production moving. Bolt-on edges provide added versatility, making it a dependable solution for a wide range of applications.
Product Details
Download Brochure- 60"and 72" lengths
- 36″ width

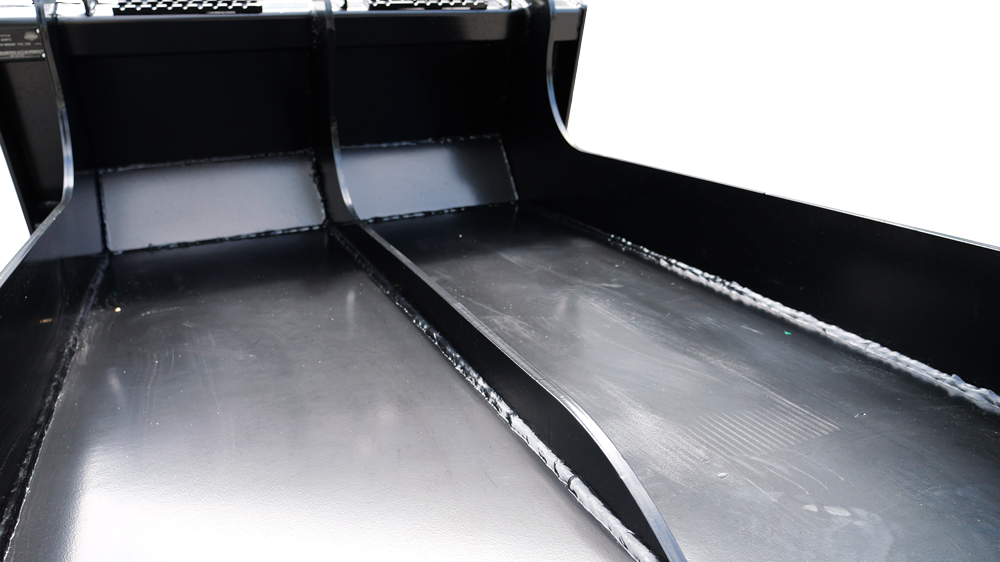

- Reinforced 1/4″ Steel Floor
- 1/2″ Side Plates with Internal Gussets
- 3/4″ x 6″ Cutting Edge (with Holes)
- 1/2″ x 2″ Wear Bars

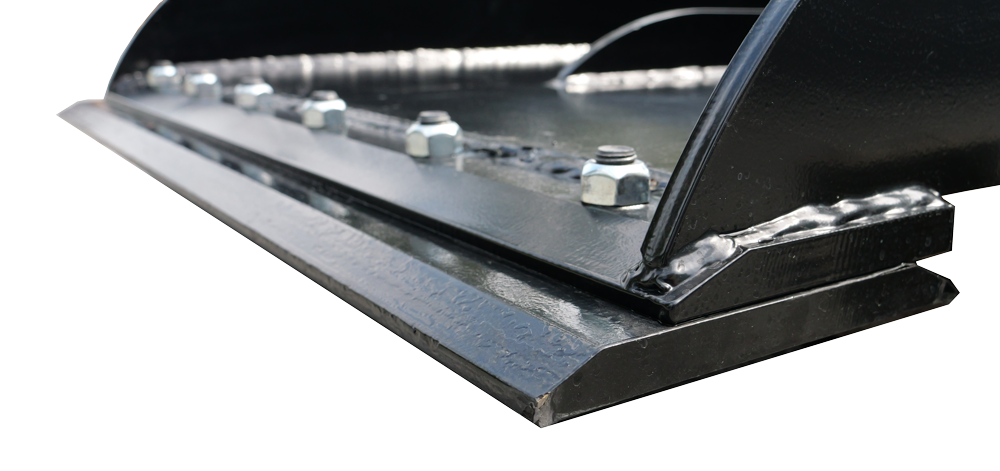

- Optional bolt-on front cutting edge
- Universal skid steer mount
| Part Number | Model | Weight |
|---|---|---|
| Part Number137110 | Model36" Wide x 60" Long Quarry Bucket Smooth with Bolt-On Edge | Weight712 lbs |
| Part Number137120 | Model36" Wide x 72" Long Quarry Bucket Smooth with Bolt-On Edge | Weight810 lbs |
