EXCAVATOR DRUM MULCHER - SDX

The Blue Diamond® SDX Excavator Drum Mulcher is the one of the quickest ways to turn trees into wood chips in a matter of minutes. Our most durable drum mulcher is built with high strength steel and recommended for 49K-70K excavators.

With a 60" working width and a cutting diameter of 12 inches, no job is too tough! Our drum rotors have fixed teeth set in a helical position with “p-cut” depth limiters. The optional reversible carbide teeth are a must when working in rocky areas because it offers a maximum tooth lifespan. Routine maintenance is quick and easy with the centralized grease points and hydraulic quick couplers.

Two double rows of chains and rubber side shields on our SDX Drum Mulchers provide maximum protection of debris while also keeping the material flowing.

Find a Dealer

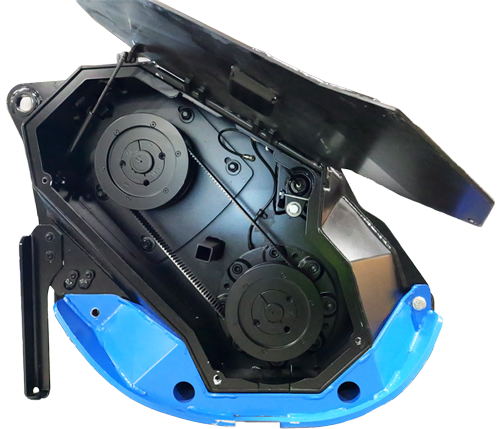

EX Drum Mulcher st10 side view EX Drum Mulcher st9 Front View SDX trans web EX Drum Mulcher st7 Hose Connectors EX Drum Mulcher st6 Bite Limiters EX Drum Mulcher st4 Chain EX Drum Mulcher st3 Grease EX Drum Mulcher st2 Grease Ports EX Drum Mulcher st1 Hydraulic EX Drum Mulcher st8 Belt Drive

Product Details

Download Brochure
  • 49,000 - 70,000 Excavator Size
  • Available in 60” cutting width
  • Variable Displacement (80 - 115cc Bosch Rexroth)
  • Recommended Flow is 45-58 GPM
  • 12" diameter cutting capacity
  • Required pressure 4,000-5,500 PSI
  • Chain curtain minimizes discharge
  • Adjustable hydraulic gate
  • Requires case drain, hoses & couplers
  • Requires universal wiring harness kit w/control box - 290680
  • 24" x 24" mount plate
  • Chipping Tooth Kit - 60" SDX - (290504-KIT-60)
  • Carbide Tooth Kit - 60" SDX - (290505-KIT-60)
Part Number Model Motor Size Teeth Required Flow Weight
Part Number190620 Model60" SDX Excavator Drum Mulcher Motor Size80cc - 115cc TeethChipping Required Flow45-58 GPM Weight3,000 lbs

*Excavator Drum Mulchers do not come with hoses or couplers. Host machine requires case drain and may require additional hydraulic valve for aux flow. All these items are dealer responsible for time and materials. Manufacturer suggested time (MST) is 1-hour shop required to tune the mulcher to the host machine, and this time excludes all other dealer installed service items.
