Download Brochure- Available in 33", 40", 47", and 60" screening widths
- Bucket capacities from 6.0 to 42.38 cubic feet
- Fits excavators from 6,600 to 53,000 lbs
- Flexible polyurethane star rotors provide non-destructive material separation
- Carbon fiber reinforced self-tensioning belt drive
- Stainless steel non-stick floor minimizes material buildup
- Heavy-duty multi-layer shell construction
- Reinforced HB400 cutting edge for long service life
- Sealed bearings reduce maintenance requirements
- Adjustable screening aperture using interchangeable comb kits
- Quiet operation for urban and residential projects
- Compatible with many tiltrotator-equipped excavators
- Mounts available for most mini and full-size excavator models
- Hoses and couplers sold seperately
| Part Number | Model | Host Machine Size | Rotors | Max Flow | Max PSI | Capacity CU FT | Weight |
|---|---|---|---|---|---|---|---|
| Part Number145110 | Model33" Heavy Duty Screening Bucket | Host Machine Size6,600-11,000 | Rotors3 | Max Flow14 GPM | Max PSI2,900 | Capacity CU FT6.00 | Weight557 lbs |
| Part Number145115 | Model40" Extreme Duty Screening Bucket | Host Machine Size11,000-22,000 | Rotors4 | Max Flow23 GPM | Max PSI2,900 | Capacity CU FT12.36 | Weight1,104 lbs |
| Part Number145117 | Model47" Extreme Duty Screening Bucket | Host Machine Size22,000-30,000 | Rotors4 | Max Flow23 GPM | Max PSI2,900 | Capacity CU FT14.85 | Weight1,179 lbs |
| Part Number145120 | Model60" Extreme Duty Screening Bucket | Host Machine Size28,600-35,000 | Rotors4 | Max Flow23 GPM | Max PSI2,900 | Capacity CU FT18.60 | Weight1,585 lbs |
| Part Number145135 | Model60" Severe Duty Screening Bucket | Host Machine Size35,000-53,000 | Rotors6 | Max Flow42 GPM | Max PSI2,900 | Capacity CU FT42.38 | Weight1,635 lbs |
Built for Construction & Excavation

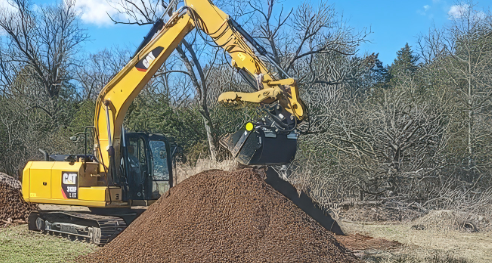

Screen Material Directly from the Excavation
Blue Diamond Excavator Screening Buckets eliminate unnecessary handling by allowing contractors to process excavated material immediately after digging. Trench spoil can be screened and reused as backfill, reducing imported material costs and minimizing hauling requirements.

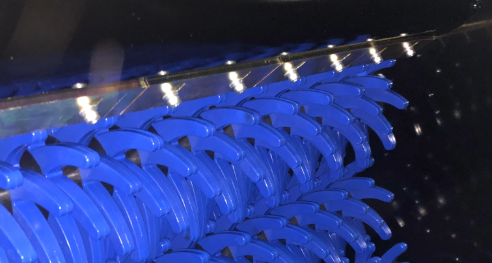

Flexible Polyurethane Star Technology
Instead of crushing or shredding material, flexible polyurethane stars gently tumble and separate material into a consistent finished product. This technology preserves valuable aggregate while maintaining excellent performance in damp or clay-heavy soils where conventional screening systems often struggle.
Carbon Belt Drive
A carbon fiber reinforced self-tensioning belt drive transfers power efficiently while requiring virtually no routine lubrication. The enclosed system reduces maintenance and extends service life in dusty, abrasive jobsite conditions.
Heavy-Duty Construction
Blue Diamond Screening Buckets are engineered for demanding excavation work with a reinforced monocoque shell, stainless steel floor, sealed bearings, and HB400 wear protection throughout the bucket.
Ideal Applications
- Utility trenching
- Pipeline installation
- Trench backfill preparation
- Civil infrastructure construction
- Road and bridge projects
- Demolition recycling
- Topsoil production
- Aggregate processing
- Environmental remediation
- River and drainage maintenance
- Quarry support
- Site development
Reduce Material Costs. Increase Jobsite Efficiency.
Every load of reusable material that stays on the jobsite saves contractors time and money. Blue Diamond Excavator Screening Buckets allow operators to transform excavated material into usable backfill, screened topsoil, or recycled aggregate while eliminating unnecessary transportation and disposal costs.
By combining excavation, screening, and material placement into one continuous workflow, contractors can complete projects faster while reducing equipment requirements and improving profitability.
Why Choose a Blue Diamond Excavator Screening Bucket?
Excavators already provide exceptional reach, digging capability, and precise material placement. Adding a Blue Diamond Screening Bucket extends that versatility even further by allowing operators to screen and recycle material without changing machines or moving to a separate processing location.
Whether preparing trench backfill, producing screened topsoil, separating demolition debris, or reclaiming aggregate, contractors can process reusable material immediately after excavation. This streamlined workflow minimizes equipment movement, reduces trucking expenses, and helps projects stay on schedule.
