ROOT GRAPPLE – EXTREME DUTY HIGH CAPACITY

MAXIMUM CAPACITY FOR SERIOUS CLEARING.

The Blue Diamond® Extreme Duty High-Capacity Root Grapple is built for operators who need to move more material per cycle. Oversized dual clamps, serrated 1/2 in. one-piece tines and a heavily reinforced mount make it the high-capacity choice for large brush, logs, roots and demolition debris on machines up to 100 HP.
Find a Dealer

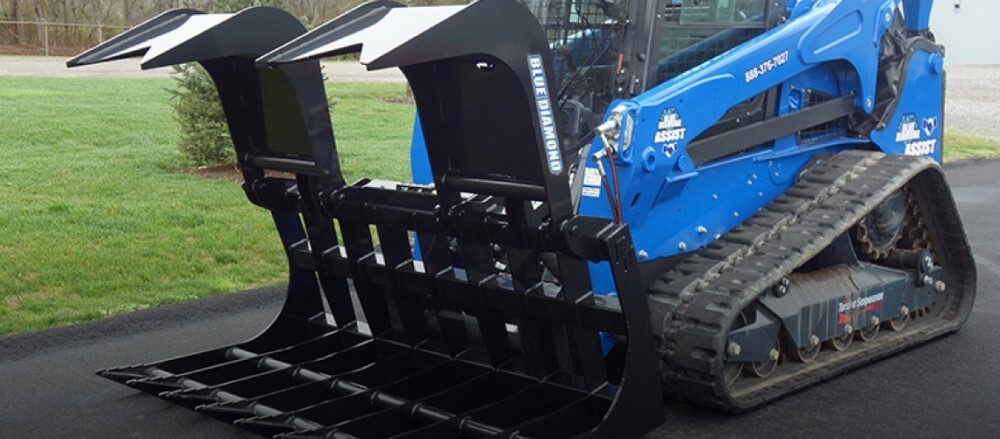

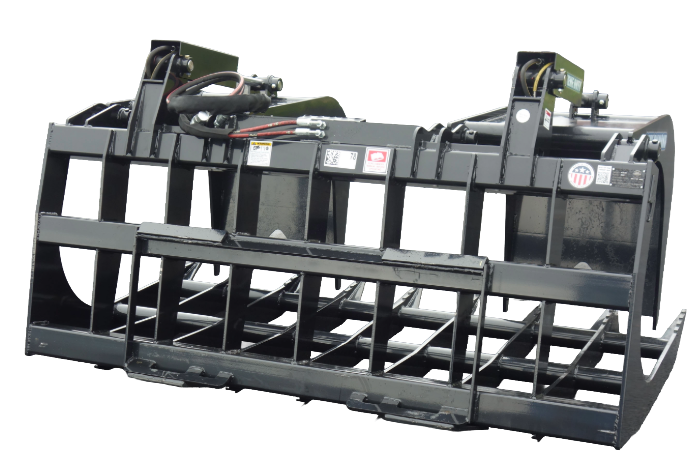

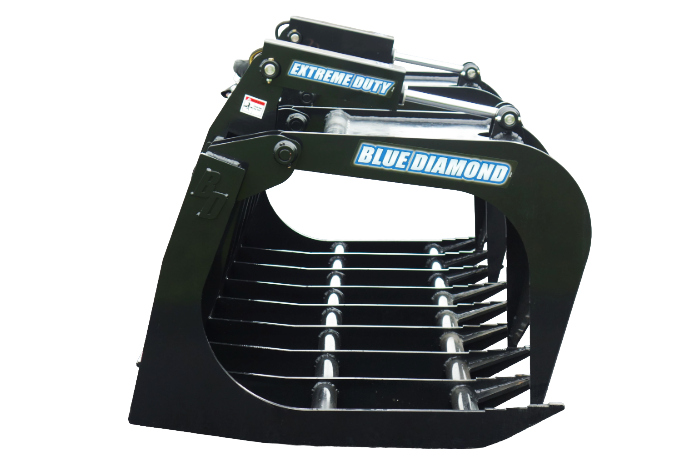

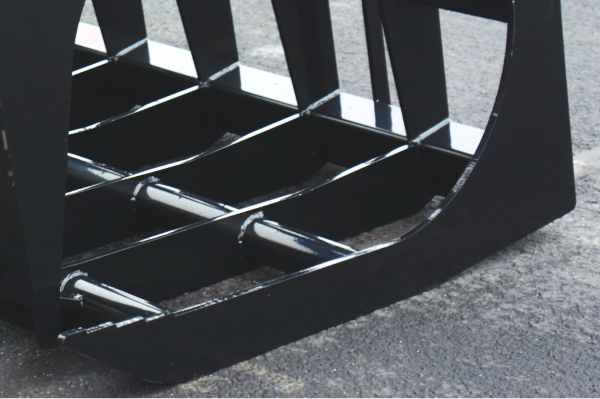

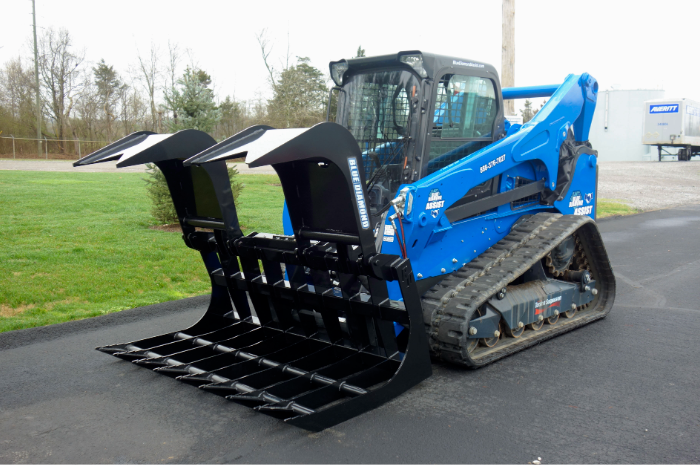

Blue Diamond Skid Steer Attachments ROOT GRAPPLE EXTREME DUTY HIGH CAPACITY Extreme Duty Root Grapple Side SS Extreme Duty Root Grapple AC SS Extreme Duty Root Grapple Frame SS Extreme Duty Root Grapple Tines SS Hc extreme duty root grapple action

Product Details

Download Brochure
  • 72 in., 78 in. and 84 in. widths for high-capacity skid steers and compact track loaders
  • Opens to 59” at tip of tines/clamps
  • 25" x 42" opening inside of clamps
  • Designed for skid steers up to 100 HP
  • 1/2" steel dual independent top clamps for secure, even grip
  • 1/2” solid one-piece steel tines with serrated tips
  • 8" tine spacing with reinforced cross tube design
  • 1 1/4 in. greaseable pivot pins support demanding service
  • Integrated step plates on heavily reinforced mount
  • Fully protected cylinders and "no pinch" hose routing
  • Maximum hydraulic pressure: 3,200 PSI
  • Hoses and flat face couplers included
  • Universal Skid Steer mount
Part Number Model Weight
Part Number106220 Model72” Root Grapple, Extreme Duty, High Capacity Weight1,159 lbs
Part Number106230 Model78” Root Grapple, Extreme Duty, High Capacity Weight1,194 lbs
Part Number106240 Model84” Root Grapple, Extreme Duty, High Capacity Weight1,294 lbs
