Flail Mower

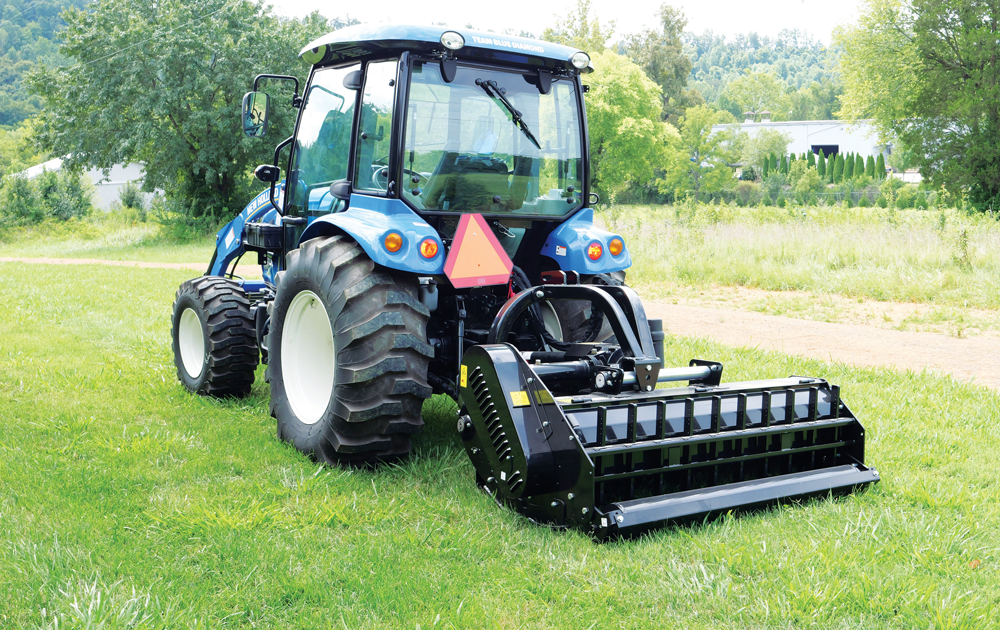

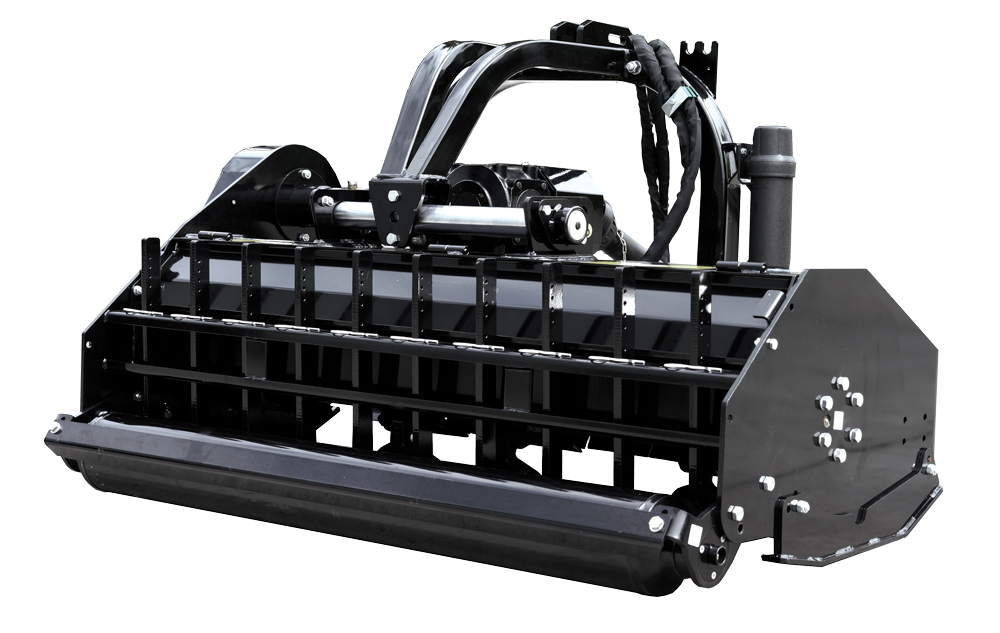

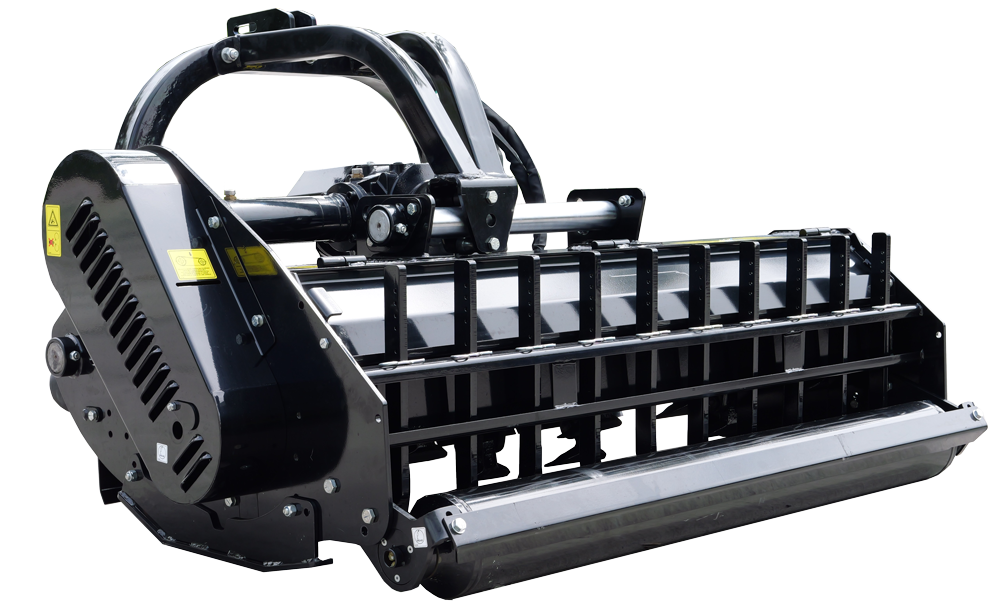

The Blue Diamond® line of PTO flail mowers is built for 35–100 HP tractors with Category 1 or 2 hitches and offer cutting widths from 69" to 98" to suit a wide range of applications. Designed for durability and precision, standard features include hydraulic side shift, rear rollers and rakes, and forged hammer blades. Its rugged gearbox and electronically balanced rotor ensure smooth, reliable performance in demanding conditions. Ideal for mowing thick grass, roadside shoulders, orchards, pastures, and light brush up to 3".
Product Details
Download BrochureBuilt for Power & Performance
- Fits 35–100 HP Tractors
Compatible with a wide range of utility and compact tractors. - Category 1 & 2, 3-Point Hitch Ready
Easy to mount on most standard tractor setups.
Precision & Control

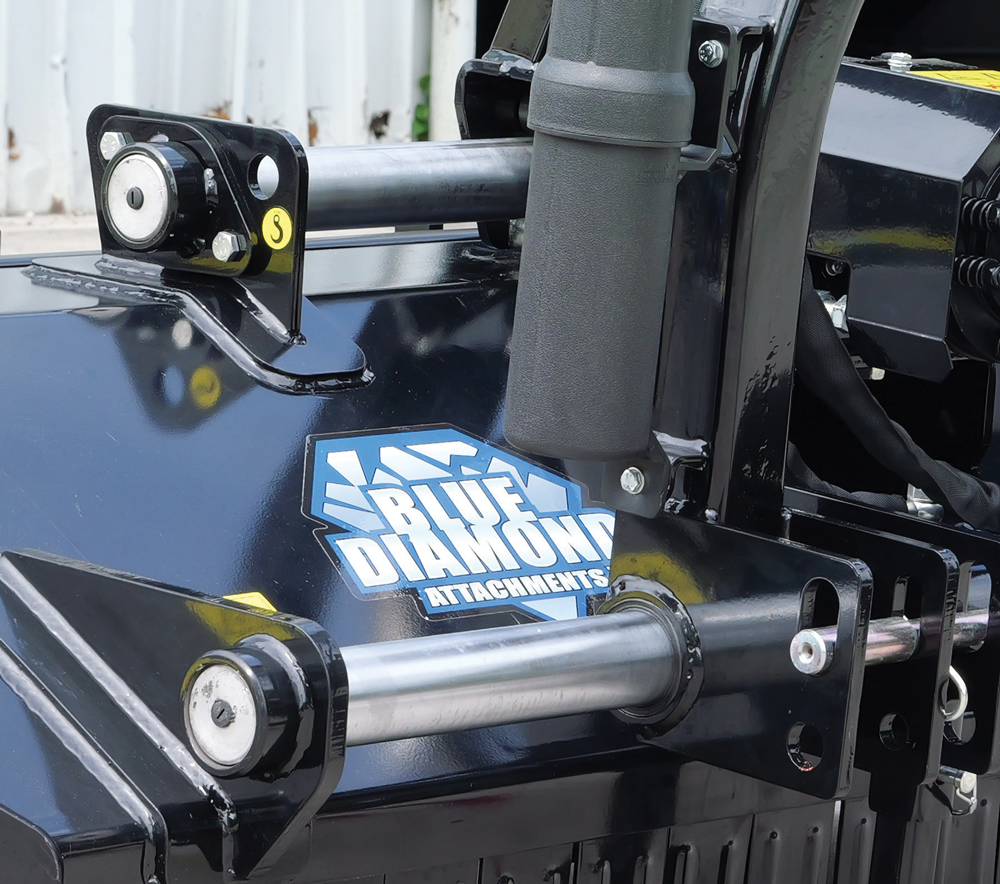

- Hydraulic Side Shift – Up to 16"

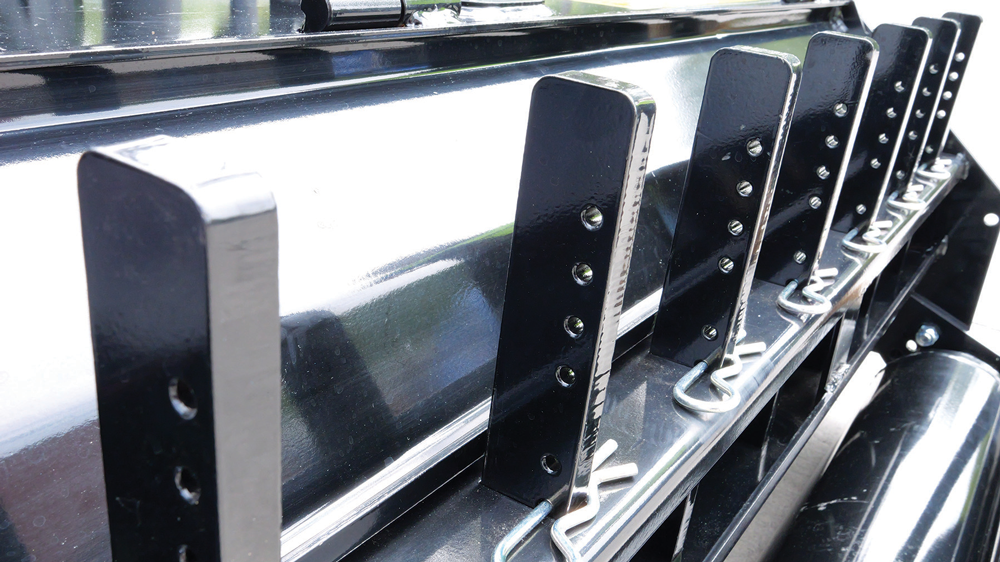

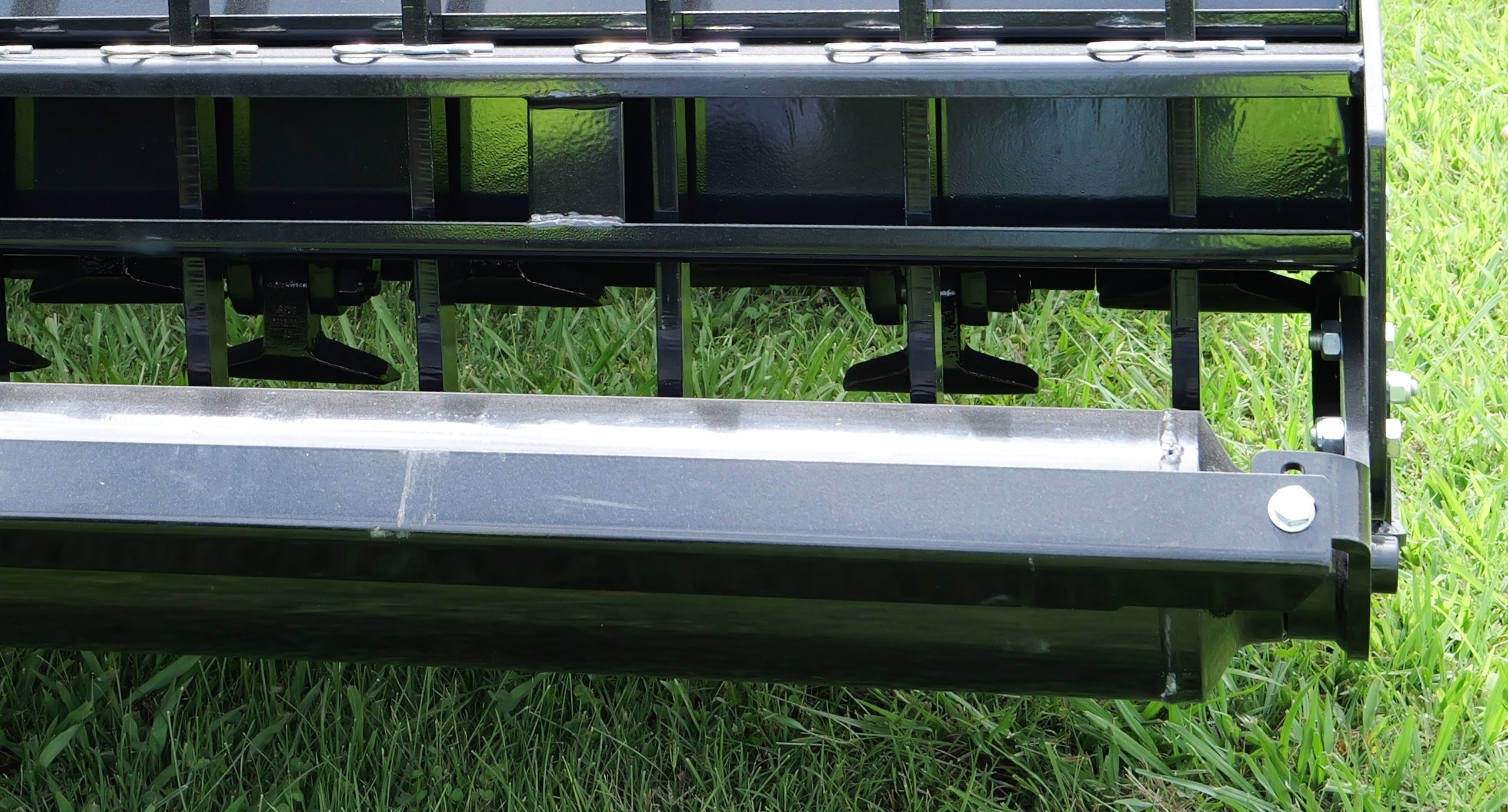

Get accurate positioning when working around obstacles or fence lines. - Adjustable Rear Roller & Rakes
Delivers a clean, even finish—even on uneven terrain.
Built to Last
- Heavy-Duty Gearbox with Belt-Driven Side Transmission
Reliable, low-maintenance power delivery for tough jobs. - Replaceable & Adjustable Side Skids
Protects from shock and wear, easily adapted for different ground conditions. - Slip Clutch PTO
Protects your equipment from overloads and sudden impacts.
Cleaner Cuts, Better Mulching
- Mulches Finer Than a Rotary Cutter
Shreds material for quicker decomposition and a tidier result. - Cuts Grass & Brush Up to 3" Thick

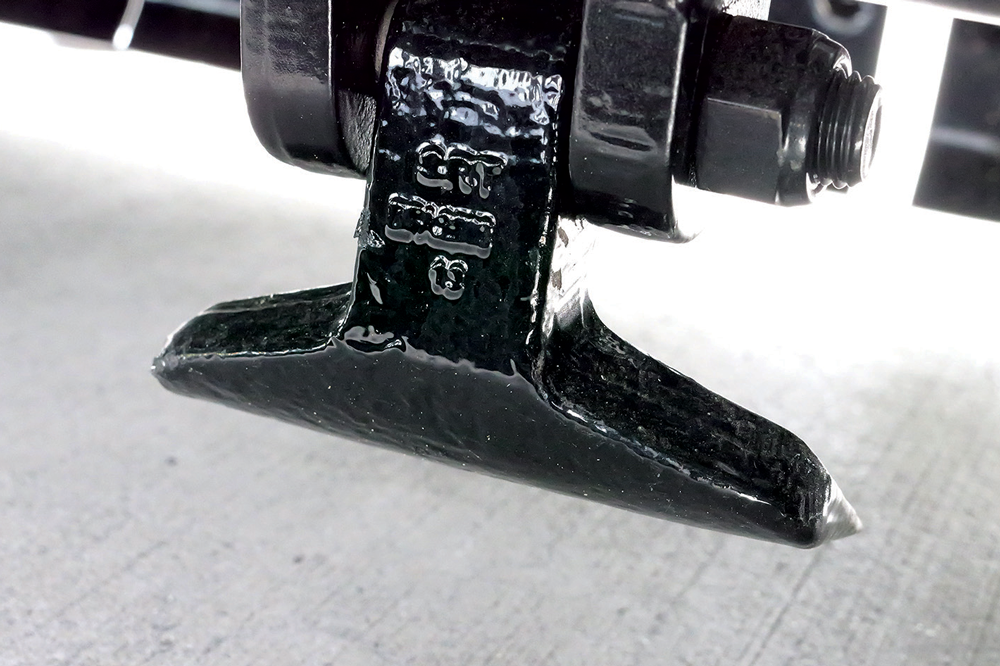

Handles thick vegetation and light brush with ease. - Replaceable Forged Hammer Blades
Durable, high-performance cutting blades for a long service life.
Smooth, Safe Operation
- Electronically Balanced Rotors
Reduces vibration for smoother performance and less wear. - Front Rubber Deflectors
Minimizes thrown debris for improved operator safety. - External Belt Adjustment
Easy access for fast, side transmission maintenance.
Part Number | 403710 | 403720 | 403730 | 403735 | 403740 | 403750 |
---|---|---|---|---|---|---|
Part Number | 403710Std Duty | 403720Std Duty | 403730Std Duty | 403735Heavy Duty | 403740Heavy Duty | 403750Heavy Duty |
Part NumberRecommended HP | 40371040-70 | 40372045-70 | 40373050-70 | 40373550-75 | 40374075-100 | 40375075-100 |
Part NumberWorking Width (inch) | 40371069 | 40372080.7 | 40373086.5 | 40373562 | 40374087 | 40375098 |
Part NumberOverall Width (inch) | 40371075.5 | 40372087.4 | 40373093 | 40373571 | 40374096 | 403750106 |
Part Number3-pt Hitch Type | 403710Cat 1 | 403720Cat 1 | 403730Cat 1 | 403735Cat 1/2 | 403740Cat 1/2 | 403750Cat 1/2 |
Part NumberNo. of Hammers | 40371022 | 40372026 | 40373028 | 40373516 | 40374020 | 40375024 |
Part NumberBelts | 4037104 XPB Belts | 4037204 XPB Belts | 4037304 XPB Belts | 4037354 XPB Belts | 4037404 XPB Belts | 4037505 XPB Belts |
Part NumberHydraulic Side Shift (inch) | 40371012 | 40372012 | 40373012 | 40373516 | 40374018 | 40375018 |
Part NumberRotor Diameter (inch) | 4037106.29 | 4037206.29 | 4037306.29 | 4037356.69 | 4037406.69 | 4037506.69 |
Part NumberMaterial Cuttting Diameter (inch) | 4037101.5 | 4037201.5 | 4037301.5 | 4037353 | 4037403 | 4037503 |
Part NumberWeight (Lbs)* | 403710957 | 4037201063 | 4037301116 | 4037351411 | 4037401763 | 4037501907 |
Part Number* Weight without PTO | 403710 | 403720 | 403730 | 403735 | 403740 | 403750 |
