GRAPPLE BUCKET – HDX

The Blue Diamond® HDX Grapple Bucket is engineered for skid steers and compact loaders up to 75 horsepower. Specifically built for operators who need more machine capacity and hydraulic protection than a traditional heavy-duty bucket without moving to a full severe-duty attachment. Its 72 in. working width, dual 1/2 in. top clamps and fully welded cylinders deliver a strong, controlled grip for demanding cleanup and material handling.

The Blue Diamond® HDX Series includes the HDX Root Grapple, designed to enhance versatility when handling materials and clearing debris.

Find a Dealer

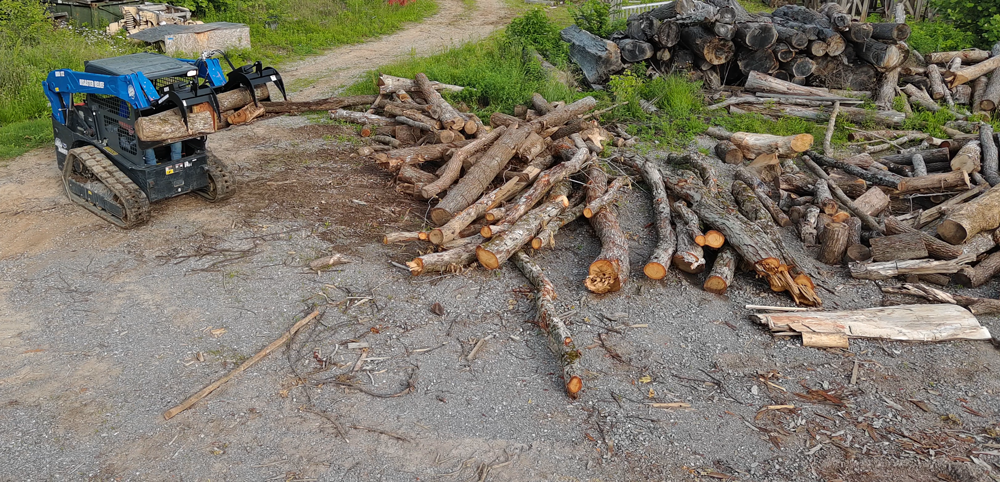

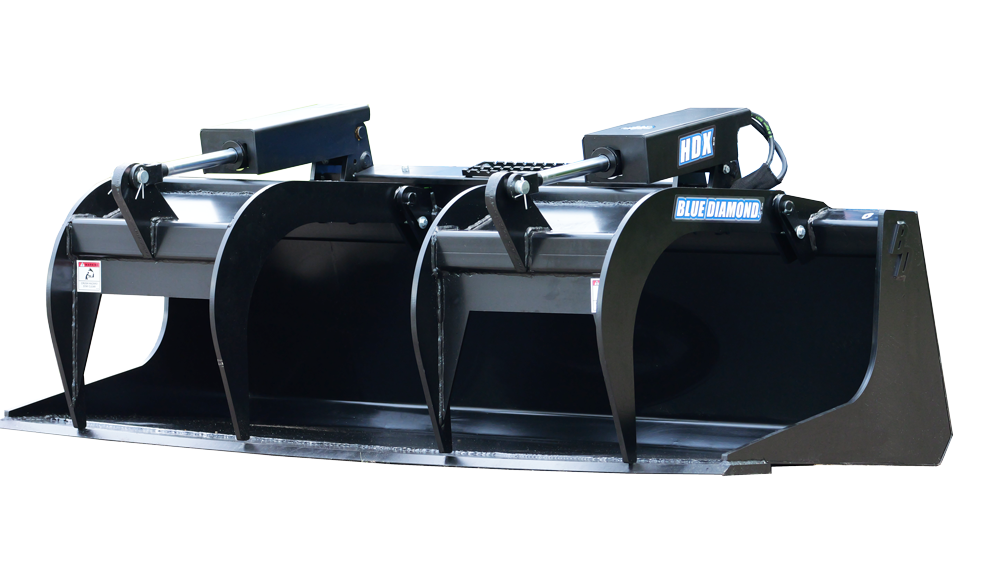

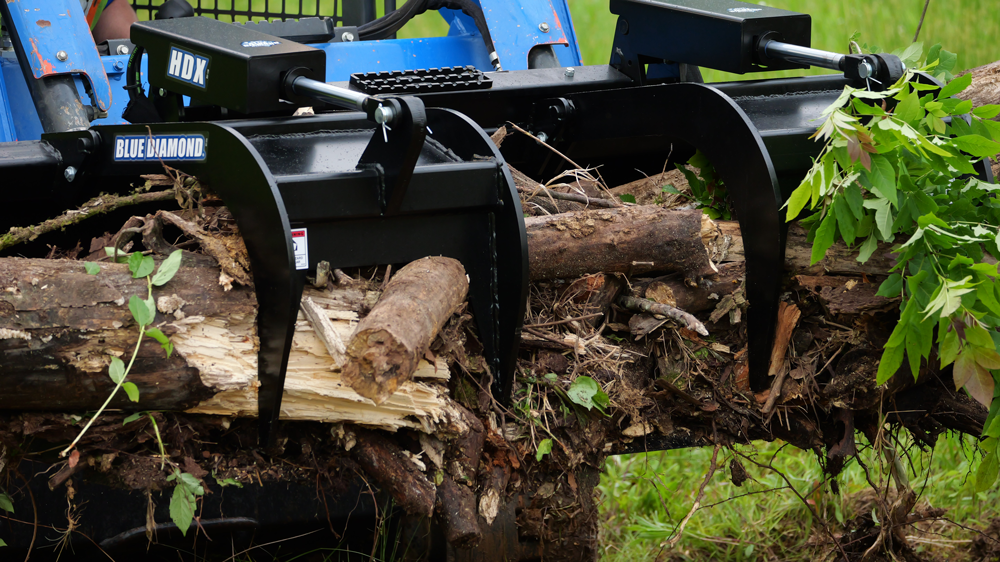

Grapple Bucket HDX st1 trans Grapple Bucket HDX st2 frontal Grapple Bucket HDX ac1 Grapple Bucket HDX ac2 web

Product Details

Download Brochure
  • 72 in. width matched to larger skid steers and compact track loaders
  • Rated for machines up to 75 HP or 3,000 lb lift capacity
  • Dual 1/2 in. top clamps provide strong, balanced gripping force
  • Fully welded hydraulic cylinders are built for demanding use
  • Upgraded cylinder and hose protection shields vulnerable components
  • 32 in. opening handles brush, logs, rocks and bulky debris
  • 39 in. bucket depth supports productive material handling
  • Pre-drilled cutting edge accepts optional bolt-on edges
  • Durable powder coated finish
  • Universal skid steer mount
Part Number Model Weight
Part Number106097 Model72" Grapple Bucket, HDX, Dual Clamps, Punched Edge for BOE Weight700 lbs
