Product Details
Download Brochure- 4,000 lb lifting capacity
- Designed for host machines up to 75 horsepower
- Recommended hydraulic flow: 6–16 GPM
- Compatible with Class II pallet fork tines
- Multiple fork tine lengths: 48″, 60″, and 72″

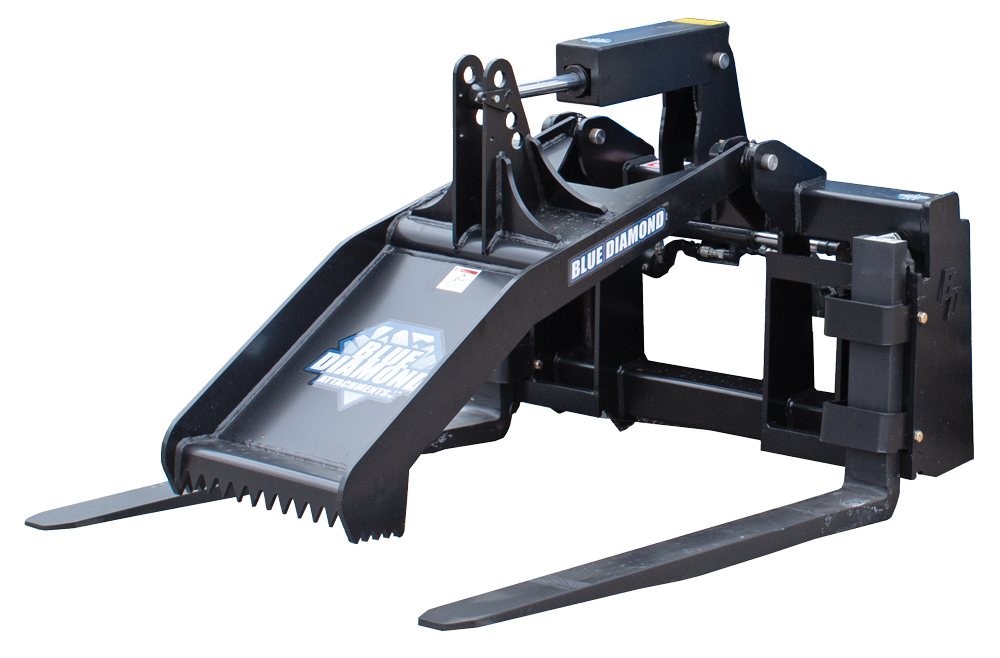

- Heavy-duty 48-inch toothed hydraulic grapple
- Reinforced ½-inch steel grapple side plates
- 18" wide serrated tooth clamp improves grip on mats and irregular materials
- Adjustable four-position cylinder mounting for varying material thicknesses
- Fixed fork spacing for maximum strength
- Protected hydraulic cylinder cover
- Greaseable pivot points
- Includes hydraulic hoses and flat-face couplers with protective sleeve
- Universal skid steer mount
Applications & Benefits:

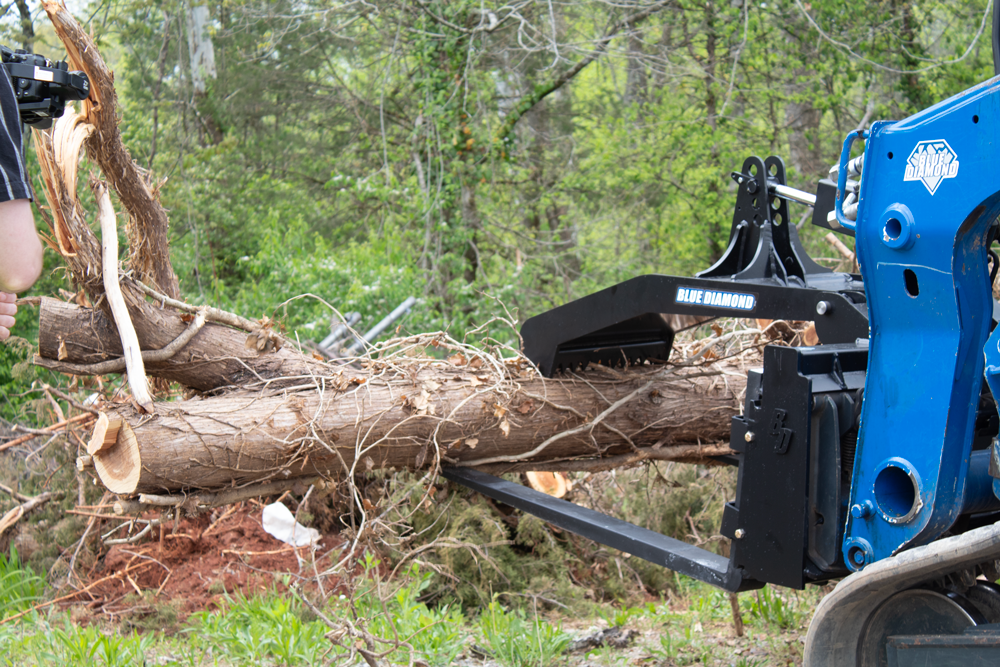

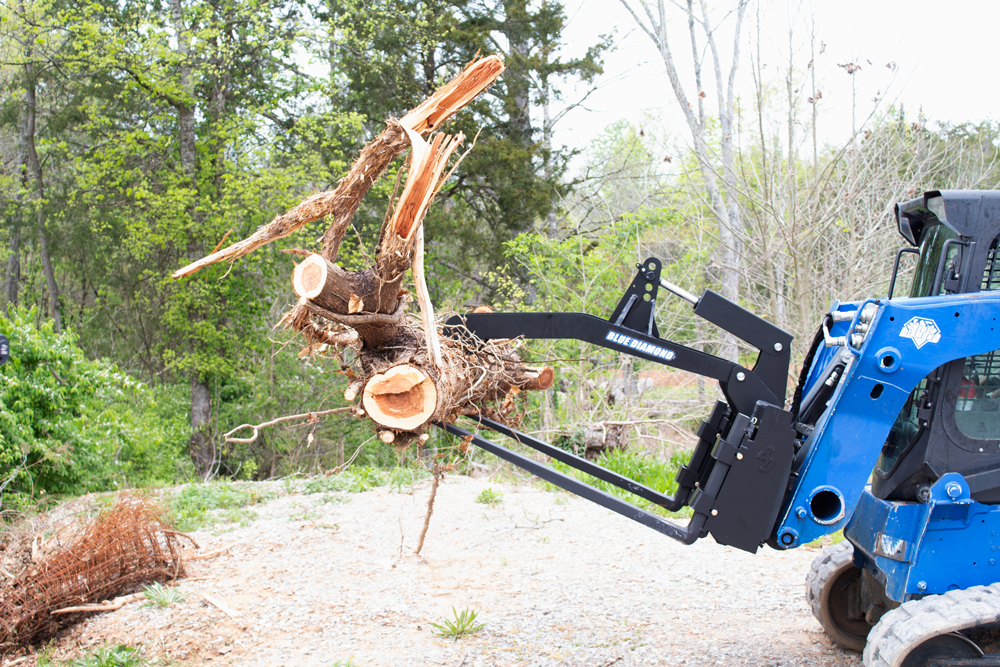

- Efficiently handle equipment mats, pallets, logs, and pipes
- Secure materials with gripping teeth and adjustable top clamp
- Adjustable cylinder mount allows customized opening width
- Durable construction ensures long-lasting performance on skid steers
| Part Number | Model | Tines | Weight |
|---|---|---|---|
| Part Number106009 | ModelMat Grapple, Heavy Duty, Frame * | Tines— | Weight426 lbs |
| Part Number306017 | ModelMat Grapple, Heavy Duty, with 48" Tines | Tines48” X 1 3/4” | Weight704 lbs |
| Part Number306016 | ModelMat Grapple, Heavy Duty, with 60" Tines | Tines60” X 1 3/4” | Weight756 lbs |
| Part Number306015 | ModelMat Grapple, Heavy Duty, with 72" Tines | Tines72” X 1 3/4” | Weight802 lbs |
| Part Number | Model* Req. 2 qty - Class 2 Tines | Tines | Weight |
