MINI SKID STEER ATTACHMENTS

MINI AUGER DRIVE

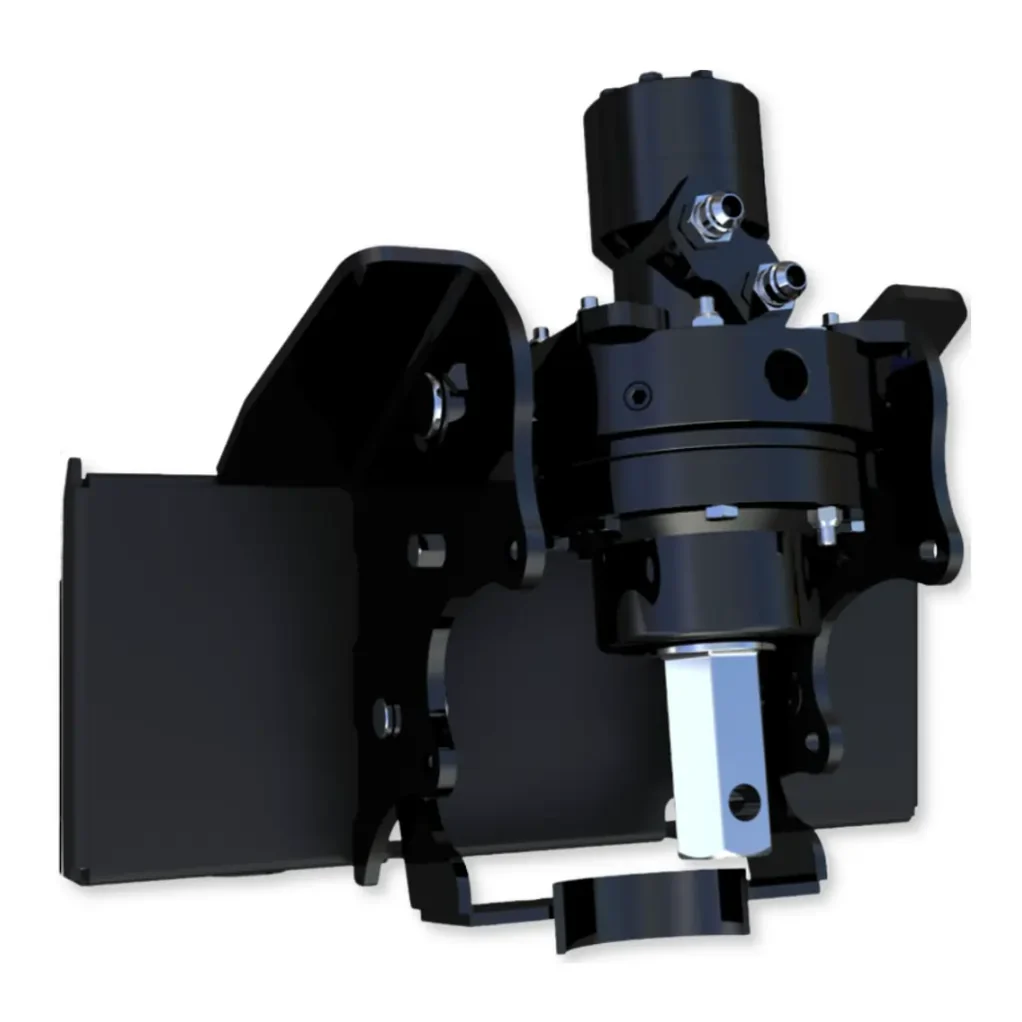

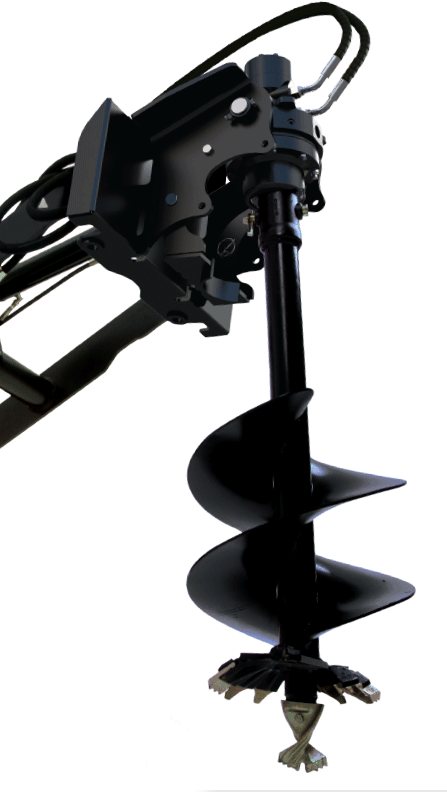

Blue Diamond® Mini Auger drives are designed for most mini skid steer and small compact track loaders under 20 HP.  Choose the 2-way (fore/aft) swing auger drive for standard applications such as post hole drilling, piers, fencing, and general-purpose use. For sloped terrain—especially where side-to-side leveling is needed—opt for the 4-way (fore/aft and side-to-side) model, designed to drill precise perpendicular holes even on uneven ground.

Find a Dealer

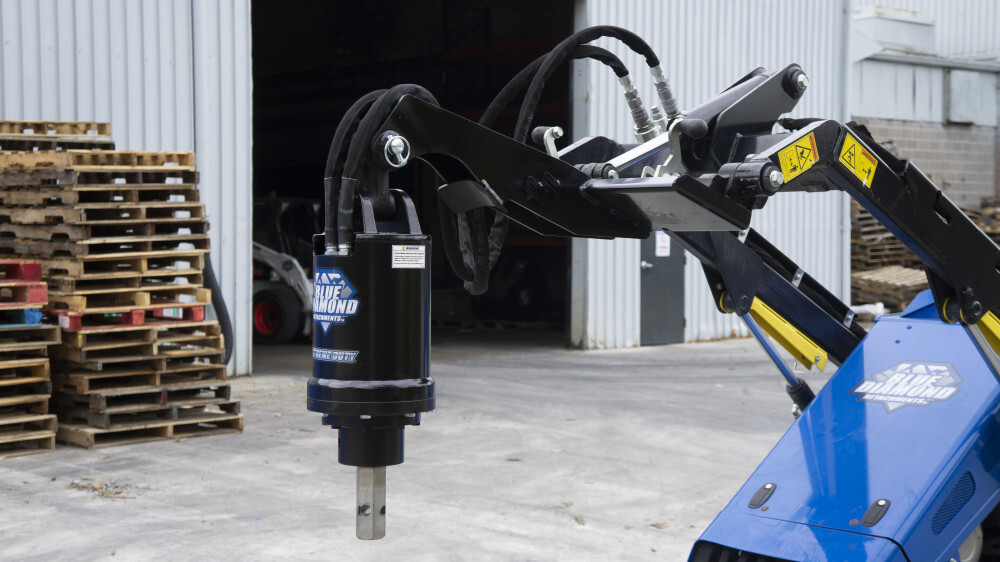

Blue Diamond Mini Auger Drive Mini Skid Steer Attachments Blue Diamond Mini Auger Drive Mini Skid Steer Attachments Gallery 1 Blue Diamond Mini Auger Drive Mini Skid Steer Attachments Gallery 2

Product Details

Download Brochure
  • Designed for loaders less than 20 HP
  • Recommended flow: 6-16 GPM
  • Compact high torque gearbox and geroler hydraulic motor
  • 2-piece shaft design ensuring maximum side load ratings
  • Convertible axis for 2-way or 4-way swing option
  • 2” hex shaft
  • 5-year gearbox warranty, 3-year motor warranty, and lifetime shaft pull-out warranty, 1-year mount and workmanship warranty
Part Number Model Hex Shaft Weight
Part Number105700 ModelMS1 2-Way Hex Shaft2” Weight136 lbs
Part Number105702 ModelMS1 4-Way Hex Shaft2” Weight145 lbs
