Home | Attachments | Excavator Attachments
|
Excavator Brush Cutters
|
Mini Excavator Brush Cutter – Heavy Duty
EXCAVATOR ATTACHMENTS

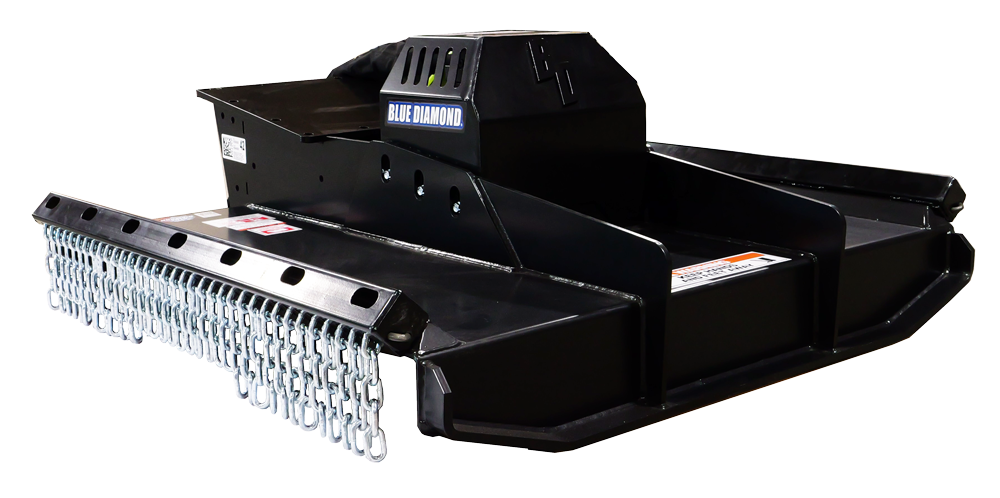

MINI EXCAVATOR BRUSH CUTTER – HEAVY DUTY
Blue Diamond® Mini Excavator Brush Cutters are engineered for 6,000 to 15,000 lb mini excavators and offer 36", 42" and 50" cutting widths. The greaseable direct drive system has a 3/4" thick blade carrier that stores energy and keeps the blades cutting even in difficult conditions. These brush cutters use a 3-blade system with straight AR400 double edged blades offering a 4" cutting capacity.
Product Details
Download Brochure- 80cc, 100cc, 125cc and 160cc hydraulic motor options
- Greaseable direct drive system
- 4" cutting diameter
- Bidirectional operation
- 3 - AR400 double-sided blades
- 1/4″ thick deck for 50″
- 3/16″ thick deck for 36″ and 42″

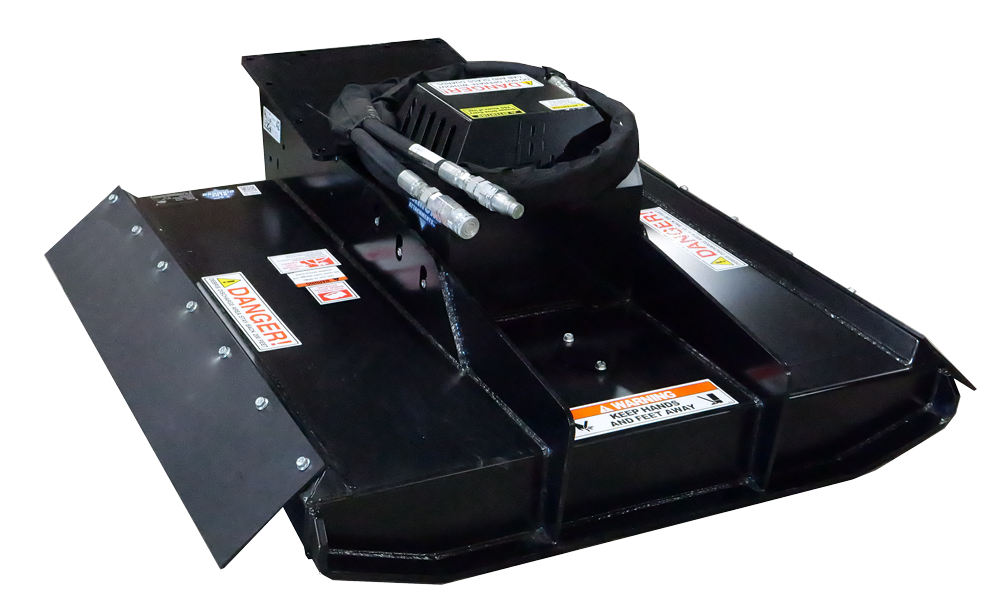

- Optional chain guards and deflectors available for 36″ and 42″ models
- 50" model has standard chain guard
- No case drain required

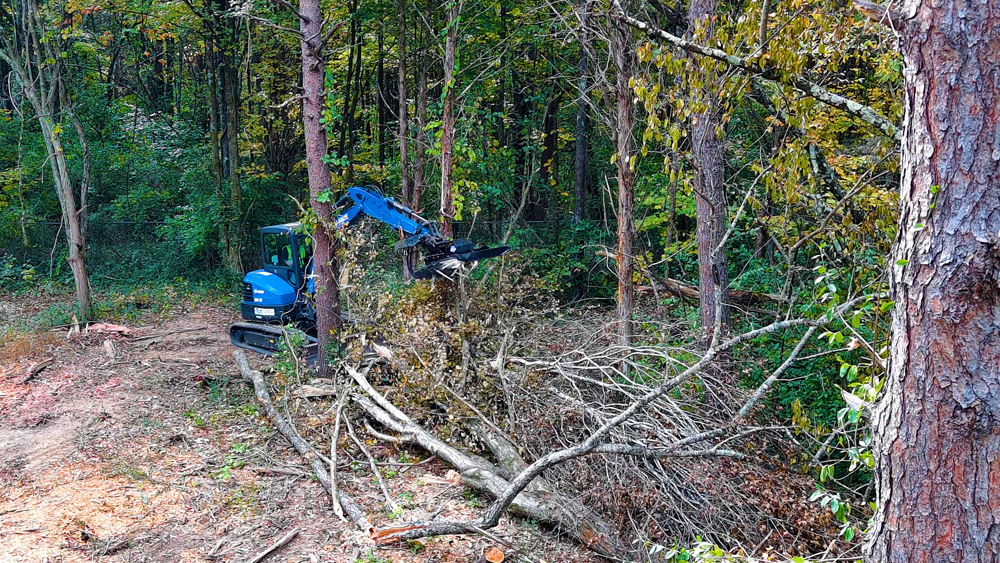

APPLICATIONS:
- Mowing steep banks
- Mowing around ponds
- Cutting back brush on roadways and trails
- Reaching over fences and guardrails
Part Number | Model | Weight (No Mount) | Host Machine Size | Flow Range (GPM) | Chain Curtain |
---|---|---|---|---|---|
Part Number103600 | Model36" W/ 80CC | Weight (No Mount)551 lbs | Host Machine Sizefits 6,000-15,000 lbs | Flow Range (GPM)13-28 | Chain CurtainOptional |
Part Number103610 | Model36" W/ 100CC | Weight (No Mount)544 lbs | Host Machine Sizefits 6,000-15,000 lbs | Flow Range (GPM)29-36 | Chain CurtainOptional |
Part Number103650 | Model42" W/ 80CC | Weight (No Mount)630 lbs | Host Machine Sizefits 7,300-19,000 lbs | Flow Range (GPM)13-24 | Chain CurtainOptional |
Part Number103660 | Model42" W/ 100CC | Weight (No Mount)662 lbs | Host Machine Sizefits 7,300-19,000 lbs | Flow Range (GPM)25-31 | Chain CurtainOptional |
Part Number103709 | Model50" W/ 80CC | Weight (No Mount)939 lbs | Host Machine Sizefits 12,000-19,000 lbs | Flow Range (GPM)13-22 | Chain CurtainYes |
Part Number103712 | Model50" W/ 100CC | Weight (No Mount)934 lbs | Host Machine Sizefits 12,000-19,000 lbs | Flow Range (GPM)23-28 | Chain CurtainYes |
Part Number103713 | Model50" W/ 125CC | Weight (No Mount)941 lbs | Host Machine Sizefits 12,000-19,000 lbs | Flow Range (GPM)28-33 | Chain CurtainYes |
Part Number103714 | Model50" W/ 160CC | Weight (No Mount)965 lbs | Host Machine Sizefits 12,000-19,000 lbs | Flow Range (GPM)34-41 | Chain CurtainYes |
Part Number203662-KIT Optional Chain Guard Kit | Model36" | Weight (No Mount)60 lbs | Host Machine Size | Flow Range (GPM) | Chain Curtain |
Part Number203665-KIT Optional Chain Guard Kit | Model42" | Weight (No Mount)80 lbs | Host Machine Size | Flow Range (GPM) | Chain Curtain |
