Excavator Brush Cutters
|
Mini Excavator Brush Cutter – Severe Duty Series 2
Excavator Attachments
Mini Excavator Brush Cutter – Severe Duty Series 2

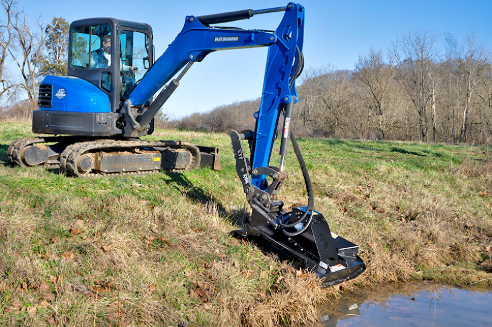

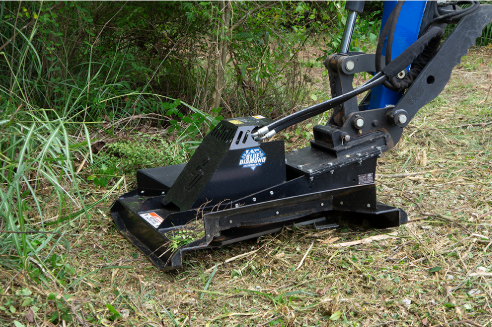

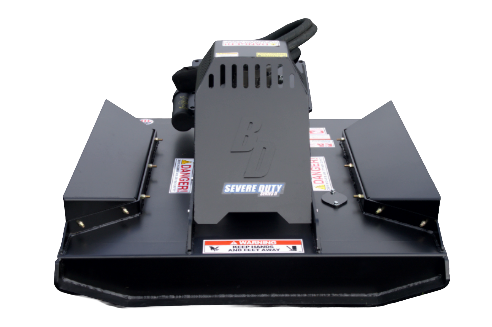

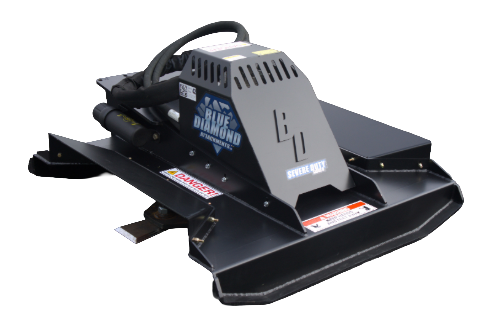

The Blue Diamond® Severe Duty Brush Cutter delivers unmatched cutting power for mini excavators. Designed for machines from 10,000 to 21,000 lbs, it features a 42″ cutting width and tackles material up to 6″ in diameter. The 80cc high-torque piston motor with oil-filled direct drive delivers maximum performance—no case drain required. With reinforced steel construction, three double-sided blades, and deck cutouts for aggressive cutting, this attachment sets the standard for mini excavator brush cutters in land clearing and vegetation management applications.
Product Details
Download Brochure- 42" cutting width - the largest in its class for mini excavators
- 6" diameter cut capacity for heavy brush and small trees
- Designed for 10,000 – 19,000 lb mini excavators
- 16-26 GPM flow range for optimal performance
- 80cc high torque piston motor with oil-filled direct drive.

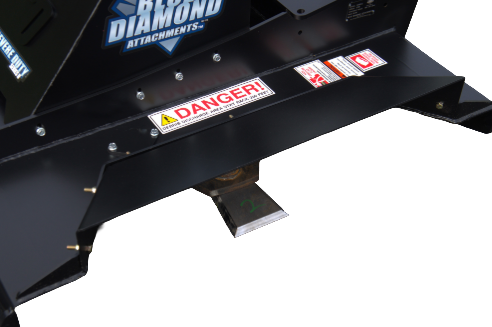

- Three double-sided blades on a 3/4” thick blade carrier
- Deck cutouts expose blades for more aggressive cutting
- 3/16" thick reinforced steel deck for maximum durability
- No case drain required
- Improved wire protection for drive spindle and motor
| Part Number | Cutting Width | Motor | Flow Range (GPM) | Weight |
|---|---|---|---|---|
| Part Number103820-2 | Cutting Width42" | Motor80 CC Piston | Flow Range (GPM)16 - 26 | Weight729 lbs. |
