Mini Skid Steer Attachments

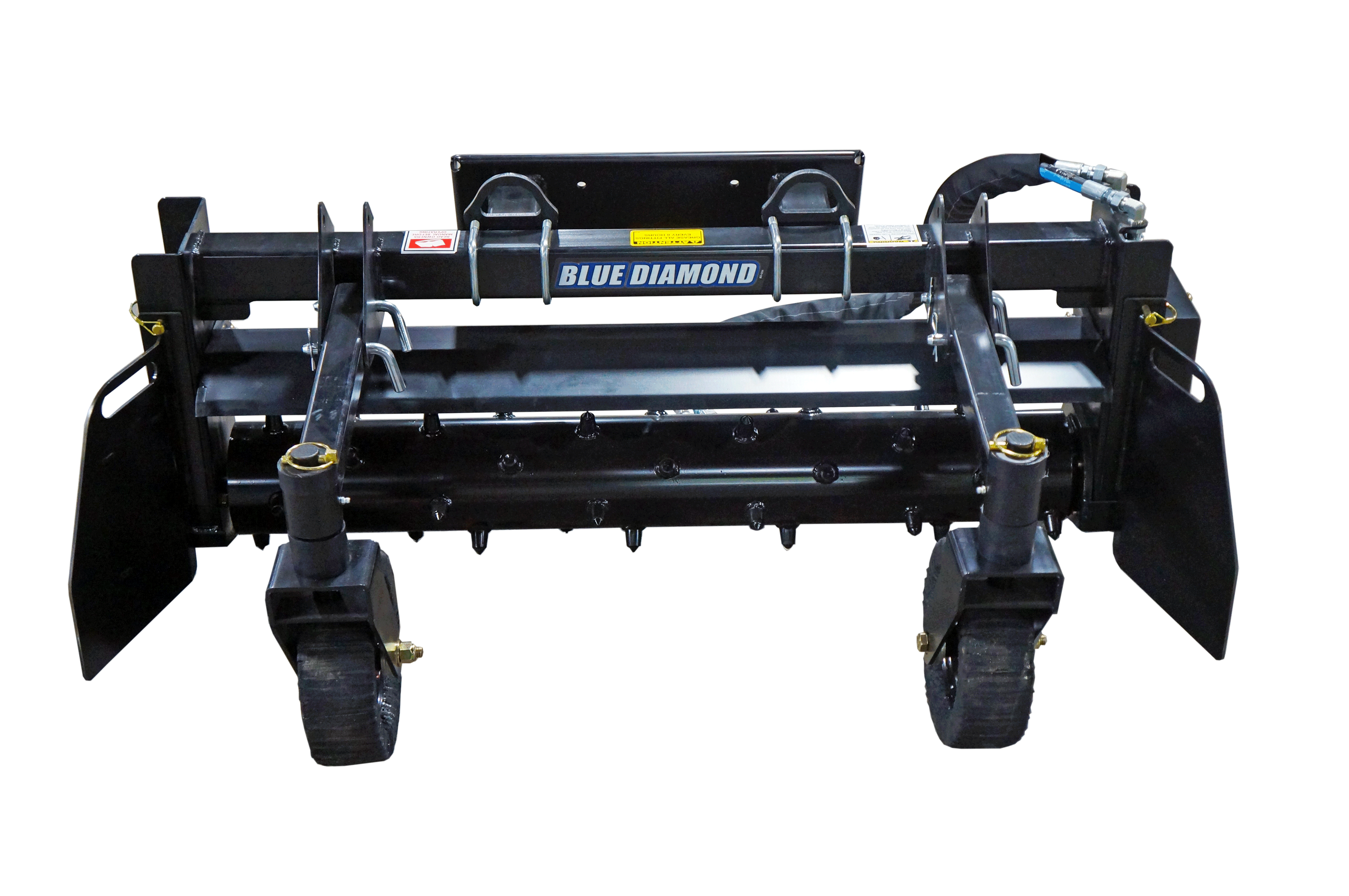

Mini Power Rake - Standard Duty

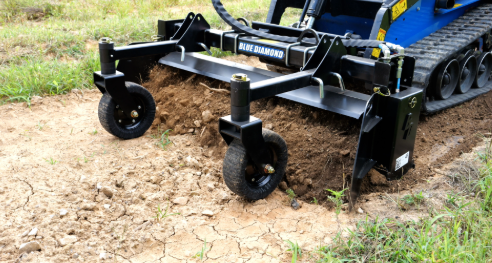

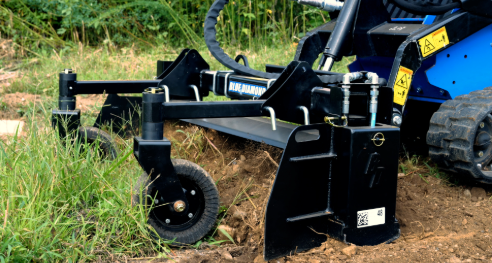

This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full size skid steer machines.

Find a Dealer
Blue Diamond Mini Power Rake Standard Duty Blue Diamond Mini Power Rake Standard Duty Gallery 1 Blue Diamond Mini Power Rake Standard Duty Gallery 2 Blue Diamond Mini Power Rake Standard Duty Gallery 3

Product Details

Download Brochure

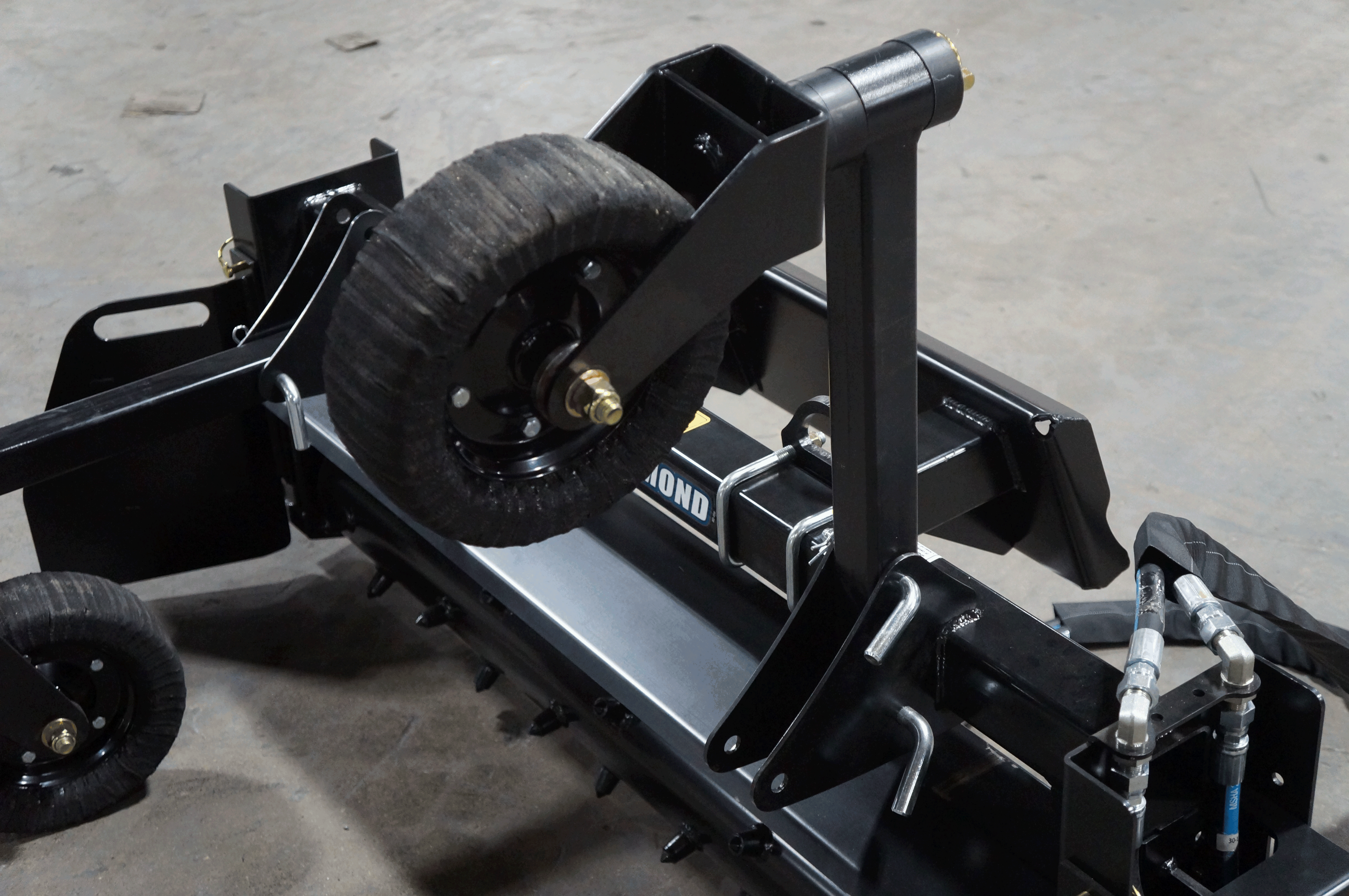

  • Flip up wheels
  • No-flat airless wheels
  • Drum width 48″ and 60″
  • 5/8″ greaseable axles on wheels

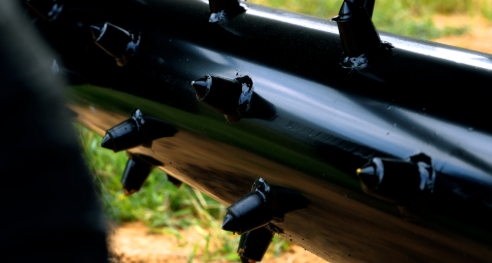

  • 7″ diameter drum with 1.5″ teeth
  • Overall width 12″ more than drum width
  • 1.25″ spindles with adjustable height

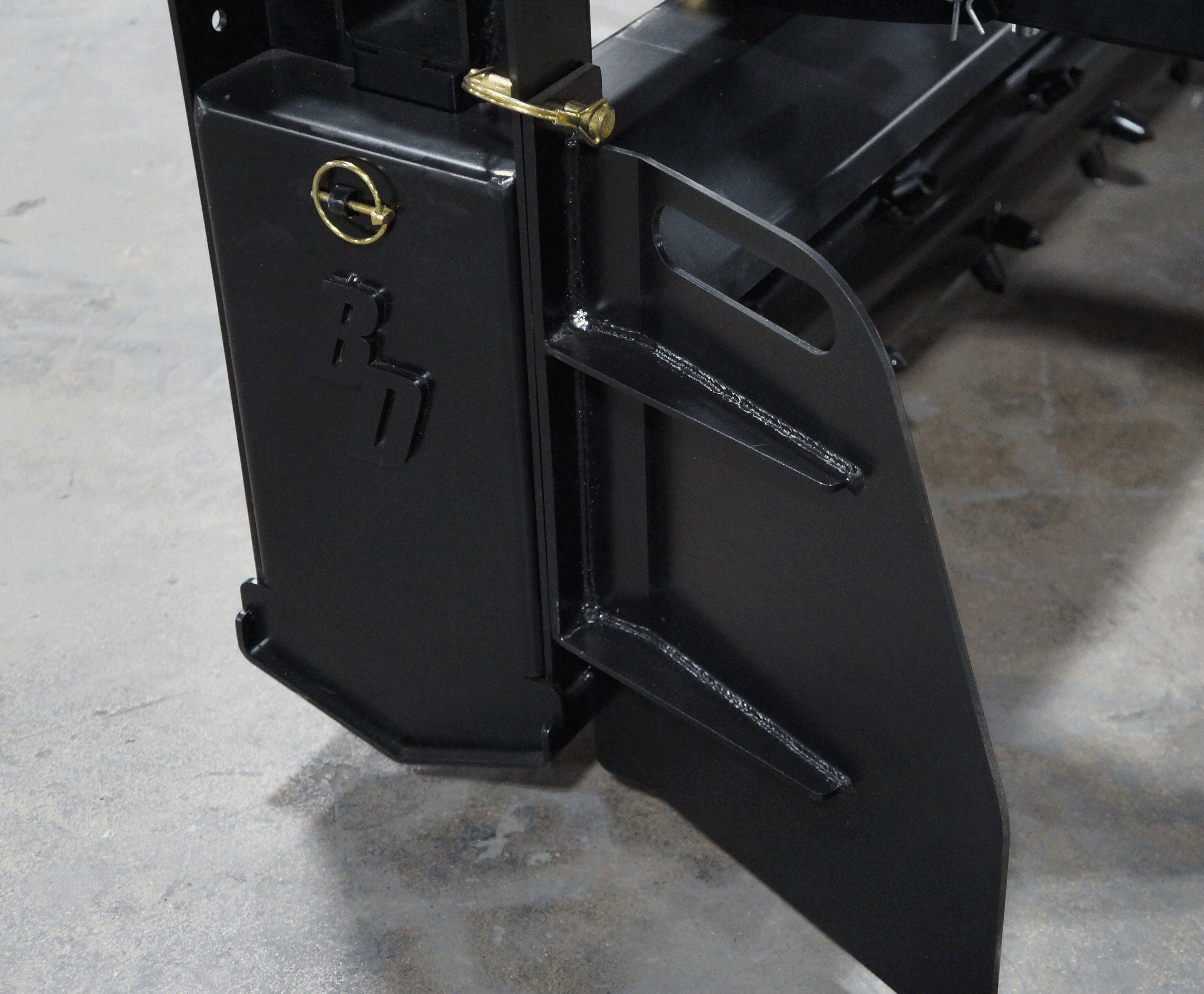

  • Bolt-on mount (can be switched for a different mini or full size skid steer mount)

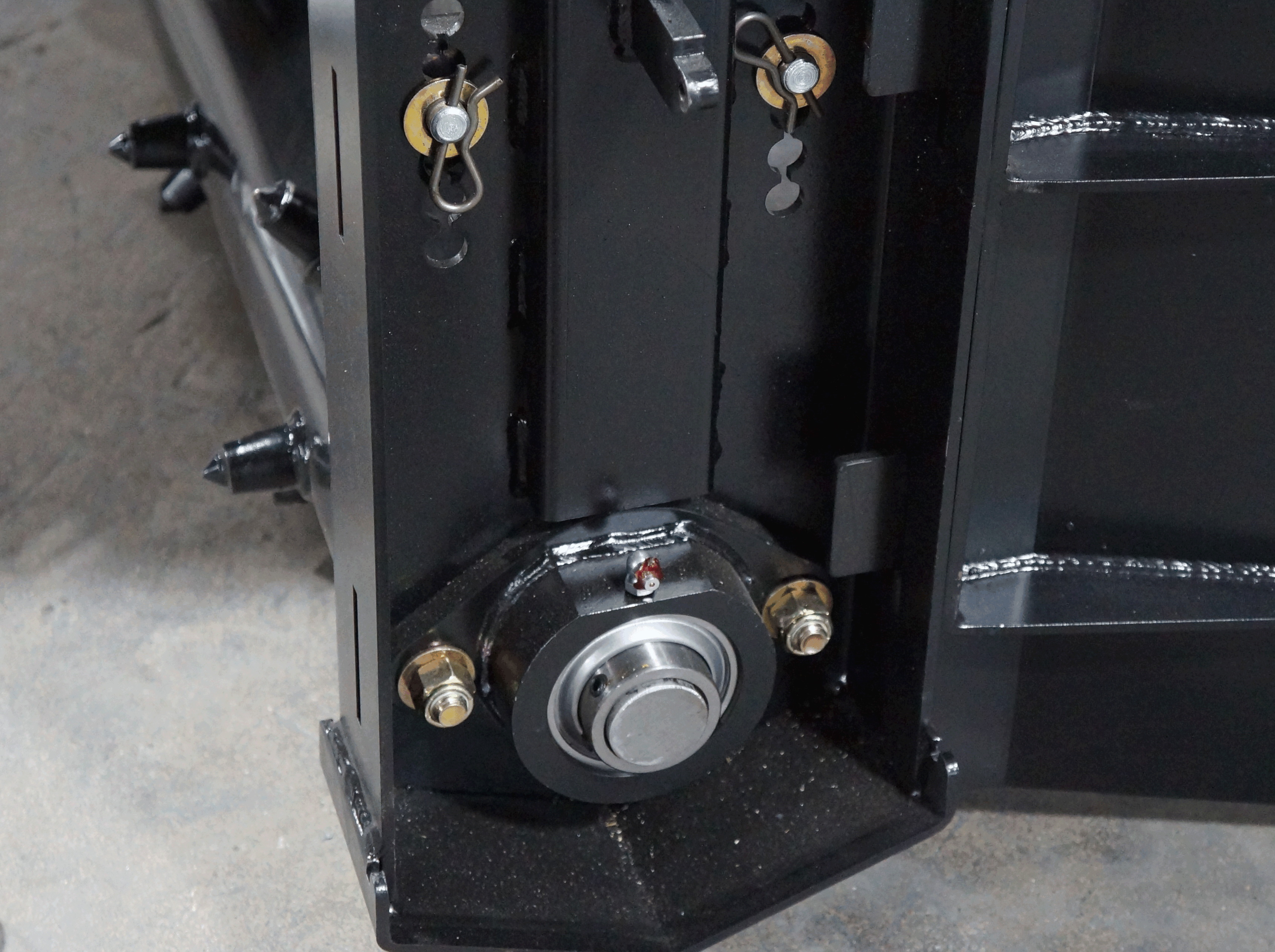

  • Spindles on drum are 1 3/8″ diameter greaseable bearings
  • Fixed carbide teeth
  • Available with manual or hydraulic angle
Part Number* Model Overall Width (Straight) Manual or Hydraulic Angle Weight**
Part Number*332450 Model48" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)60" Manual or Hydraulic Angle— Weight**550 lbs
Part Number*332451 Model48" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)60" Manual or Hydraulic AngleManual Angle Weight**600 lbs
Part Number*332452 Model48" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)60" Manual or Hydraulic AngleHydraulic Angle Weight**625 lbs
Part Number*332453 Model60" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)72" Manual or Hydraulic Angle— Weight**600 lbs
Part Number*332454 Model60" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)72" Manual or Hydraulic AngleManual Angle Weight**650 lbs
Part Number*332455 Model60" w/Fixed Carbide Teeth and Skid Steer Mount Overall Width (Straight)72" Manual or Hydraulic AngleHydraulic Angle Weight**675 lbs
Part Number*232580 ModelHydraulic Angle Kit 96" Wire Harness Extension Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232581 ModelHydraulic 16" Wire Harness, 14-Pin Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232582 ModelHydraulic 16" Wire Harness, 8-Pin Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232583 ModelHydraulic Universal Wire Harness Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232584 ModelHydraulic 12" Wire Harness, 2-Pin to Volt Plug Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232585 ModelHydraulic 12" Wire Harness, 2-Pin to Alligator Clip Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number*232586 ModelHydraulic 12" Wire Harness, 2-Pin to Pig Tail Overall Width (Straight)— Manual or Hydraulic Angle— Weight**1 lb
Part Number* ModelAdd -25 for Mini Universal and add -26 for Bobcat MT. Weight varies on mount. Requires wire harness. Only comes with the fixed carbide teeth (232112). Confirm the location of the electrical connection. Full angled widths are estimated about 10”-12” less. Recommended flow is 10-20 GPM for 48” and 15-20 GPM for 60”. Overall Width (Straight) Manual or Hydraulic Angle Weight**** — Weight varies on mount.
