MINI ROOT GRAPPLE

The Blue Diamond® Mini Series Root Grapple is built to tackle the toughest jobs in confined spaces. Designed for mini skid steers up to 50 HP, it combines lightweight efficiency with industrial-grade strength for demolition, landscaping, and cleanup work.

Built with 5/16" thick steel tines, heavy-duty 1” pivot pins, and protected hydraulic components, this grapple delivers long-term reliability and minimal maintenance in demanding environments.

Find a Dealer

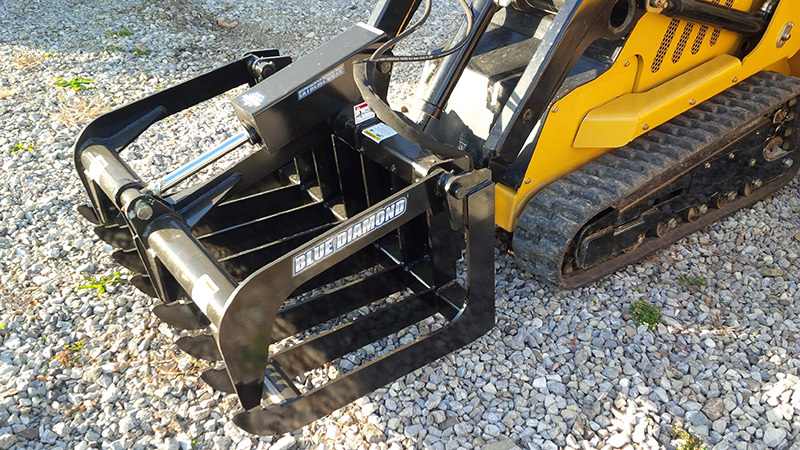

Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 1 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 2 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 3 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 5 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 6 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 7 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 8 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 9 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 10 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 11 Blue Diamond Mini Skid Steer Attachments Mini Series Root Grapple Gallery 12

Product Details

Download Brochure
  • Single or Double Clamp Models – Choose the configuration that fits your workload
  • Available Widths: 36″ – 50″ – Sized for any mini skid steer application
  • 2" Bore x 4-1/2" Stroke Cylinders with 1" OD Pins – High clamping force and long service life
  • 1” Pivot Pins in Bushings – Built for strength and durability under load
  • 5/16" Steel Tine Thickness – Heavy-duty design resists flexing and wear
  • 28" Opening Height – Wide jaw capacity for large debris and root removal
  • Protected Cylinders and Hoses – Prevents damage and extends component life
  • Greasable Pivot Points – Easy maintenance for smooth operation
  • Mini-Universal and Bobcat MT mounts available
Part Number Model Clamp Mount Weight
Part Number106022-25 Model36" Root Grapple ClampSingle Top MountMini Universal Weight284 lbs
Part Number106022-26 Model36" Root Grapple ClampSingle Top MountBobcat MT Weight284 lbs
Part Number106031-25 Model42" Root Grapple ClampSingle Top MountMini Universal Weight291 lbs
Part Number106033-25 Model44" Root Grapple ClampSingle Top MountMini Universal Weight319 lbs
Part Number106033-26 Model44" Root Grapple ClampSingle Top MountBobcat MT Weight319 lbs
Part Number106040-25 Model50" Root Grapple ClampSingle Top MountMini Universal Weight326 lbs
Part Number106040-26 Model50" Root Grapple ClampSingle Top MountBobcat MT Weight326 lbs
Part Number106043-25 Model50" Root Grapple ClampDouble Top MountMini Universal Weight385 lbs
Part Number106043-26 Model50" Root Grapple ClampDouble Top MountBobcat MT Weight385 lbs
