SKID STEER ATTACHMENTS

ROOF TRUSS JIB

The Blue Diamond® Roof Truss Jib is designed to help operators lift and place roof trusses, beams, poles, and other elevated materials with greater reach and precision. Featuring hydraulic and manual extension capabilities, it provides an adjustable height range from 150" to 222" and up to 72" of total extension, making it ideal for construction, framing, and material handling applications.

Built from heavy-duty steel tubing and powered by a 2½" x 48" hydraulic cylinder, the Roof Truss Jib delivers dependable lifting performance with capacities up to 1,200 lbs retracted and 500 lbs fully extended. Complete with hydraulic hoses, couplers, and a universal skid steer mount, it offers a versatile and cost-effective solution for high-reach lifting tasks.

Find a Dealer

Blue Diamond Roof Truss Jib Skid Steer Attachments

Product Details

Download Brochure

Adjustable height from 150" to 222"
Up to 72" total extension
48" hydraulic extension stroke
Manual extension positions at 12" and 24"
Heavy-duty 4" x 4" x 3/8" main boom tubing

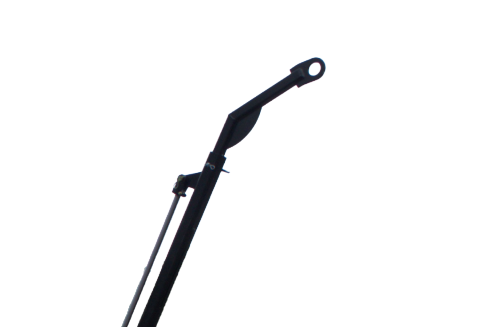

3" x 3" x 3/8" hydraulic extension arm
2" x 2" x 3/16" manual extension arm
2½" x 48" hydraulic cylinder
Up to 220" of additional lifting reach
1,200 lb capacity retracted at 45°
500 lb capacity fully extended at 45°
2.5" hole for chains, hooks, and straps
Hydraulic hoses and couplers included
Universal skid steer mount
Unit weight: 490 lbs

Part Number	Model	Weight
Part Number112105	ModelRoof Truss Jib, Hydraulic Telescopic, 1200 LB Capacity, 220” Long	Weight265 lbs
