Excavator Post Drivers
|
Vibratory Post Driver Series 2 - Excavator
EXCAVATOR ATTACHMENTS

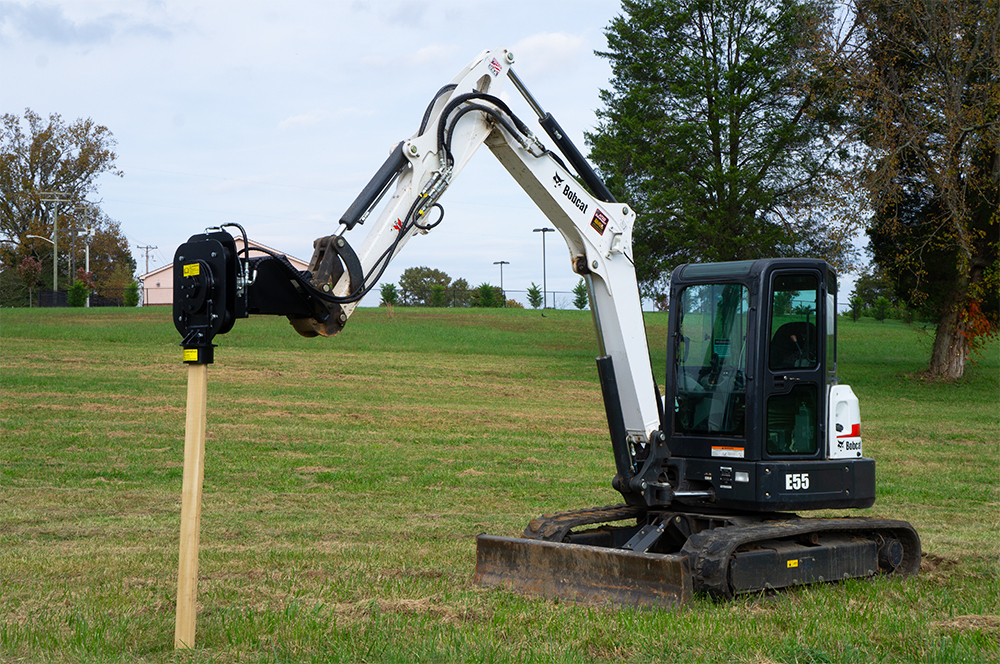

VIBRATORY POST DRIVER SERIES 2
The Blue Diamond® Vibratory Post Driver Series 2 delivers fast, controlled post installation without the repeated impact of a conventional hammer-style driver. Its high-frequency vibration transfers energy through the post and into the ground, helping drive wood, steel and plastic posts efficiently—even in challenging soil conditions.
Built around a durable hydraulic vibration system, the Series 2 features an enclosed heavy-duty steel housing, isolated vibration assembly and interchangeable post adapters for a wide range of fencing and post-installation applications. Choose a standard or optional hydraulic tilt configuration for greater control when setting posts on slopes and uneven terrain.
Product Details
Download Brochure- High-frequency vibratory driving — transfers energy through the post and into the ground for fast, controlled installation.
- Required hydraulic flow: 7–26 GPM — compatible with a wide range of host machines; 11 GPM minimum recommended for full operating performance.
- Heavy-duty enclosed housing — protects the vibration assembly and internal components on demanding jobsites.
- Sealed, oil-filled vibration system — designed for durability and long service life.
- Vibration-isolating mounts — help reduce vibration transferred back to the host machine.
- Multiple post adapters — available for wood, steel, plastic, T-posts and other post styles.
- Optional hydraulic tilt — improves post positioning on slopes and uneven terrain.
- Versatile applications — ideal for fencing, agriculture, landscaping and construction.
- Case drain required
- Multiple mounts - 18 X 19 excavator blank mount standard and 24 X 24 mount kit available.
| Part Number | Model | Mounting Plate | Weight |
|---|---|---|---|
| Part Number300502-EX | ModelVibrating Post Driver | Mounting Plate18 X 19 | Weight387 lbs |
| Part Number300507-EX | ModelVibrating Post Driver w/Tilt | Mounting Plate18 X 19 | Weight525 lbs |
| Part Number | Model | Mounting Plate | Weight |
| Part Number200004-KIT | ModelVibrating Post Driver Series 2 T-Post Kit W/4" Post Cup and Hardware | Mounting Plate | Weight36 lbs |
| Part Number100516-KIT | Model4” Round Post Adapter w/Hardware | Mounting Plate | Weight15 lbs |
| Part Number100521-KIT | Model6” Round Post Adapter w/Hardware | Mounting Plate | Weight17 lbs |
| Part Number100526-KIT | Model9” Round Post Adapter w/Hardware | Mounting Plate | Weight19 lbs |
| Part Number100528-KIT | Model10” Round Post Adapter w/Hardware | Mounting Plate | Weight37 lbs |
| Part Number100531-KIT | Model12” Round Post Adapter w/Hardware | Mounting Plate | Weight50 lbs |
| Part Number100552-KIT | Model12” Square Flat Post Adapter w/Hardware | Mounting Plate | Weight41 lbs |
| Part Number100553-KIT | Model12” Round Flat Post Adapter w/Hardware | Mounting Plate | Weight35 lbs |
| Part Number | Model | Mounting Plate | Weight |
| Part Number | ModelHoses length may require modification by customer. | Mounting Plate | Weight |
| Part Number | ModelTilt kit includes universal wiring harness. | Mounting Plate | Weight |
| Part Number | ModelMachines requiring a 24" × 24" mounting plate must use the 100565 mount kit. | Mounting Plate | Weight |
