Mini Skid Steer Post Drivers
|
Vibratory Post Driver Series 2
MINI SKID STEER ATTACHMENTS

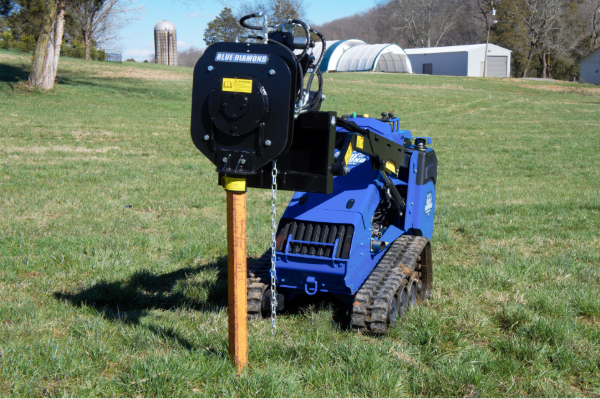

VIBRATORY POST DRIVER SERIES 2
The Blue Diamond® Vibratory Post Driver Series 2 delivers fast, controlled post installation without the repeated impact of a conventional hammer-style driver. Its high-frequency vibration transfers energy through the post and into the ground, helping drive wood, steel and plastic posts efficiently—even in challenging soil conditions.
Built around a durable hydraulic vibration system, the Series 2 features an enclosed heavy-duty steel housing, isolated vibration assembly and interchangeable post adapters for a wide range of fencing and post-installation applications. Choose a standard or optional hydraulic tilt configuration for greater control.
Product Details
Download Brochure- High-frequency vibratory driving — transfers energy through the post and into the ground for fast, controlled installation.
- Required hydraulic flow: 7–26 GPM — compatible with a wide range of host machines; 11 GPM minimum recommended for full operating performance.
- Heavy-duty enclosed housing — protects the vibration assembly and internal components on demanding jobsites.
- Sealed, oil-filled vibration system — designed for durability and long service life.
- Vibration-isolating mounts — help reduce vibration transferred back to the host machine.
- Multiple post adapters — available for wood, steel, plastic, T-posts and other post styles.
- Optional hydraulic tilt — improves post positioning on slopes and uneven terrain.
- Versatile applications — ideal for fencing, agriculture, landscaping and construction.
- Case drain required.
- Mini Universal and Bobcat MT mounts available.
| Part Number | Model | Mount | Weight |
|---|---|---|---|
| Part Number300502-25 | ModelVibrating Post Driver | MountMini Universal | Weight387 lbs |
| Part Number300502-26 | ModelVibrating Post Driver | MountBobcat MT | Weight400 lbs |
| Part Number300507-25 | ModelVibrating Post Driver w/Tilt | MountMini Universal | Weight123 lbs |
| Part Number300507-26 | ModelVibrating Post Driver w/Tilt | MountBobcat MT | Weight125 lbs |
| Part Number | Model | Mount | Weight |
| Part Number100516-KIT | Model4” Round Post Adapter w/Hardware | Mount | Weight15 lbs |
| Part Number100521-KIT | Model6” Round Post Adapter w/Hardware | Mount | Weight17 lbs |
| Part Number100526-KIT | Model9” Round Post Adapter w/Hardware | Mount | Weight19 lbs |
| Part Number100528-KIT | Model10” Round Post Adapter w/Hardware | Mount | Weight37 lbs |
| Part Number100531-KIT | Model12” Round Post Adapter w/Hardware | Mount | Weight50 lbs |
| Part Number100552-KIT | Model12” Square Flat Post Adapter w/Hardware | Mount | Weight41 lbs |
| Part Number100553-KIT | Model12” Round Flat Post Adapter w/Hardware | Mount | Weight50 lbs |
| Part Number200004-KIT | ModelVibrating Post Driver Series 2 T-Post Kit with 4: Post Cup and Hardware | Mount | Weight36 lbs |
| Part Number200575-KIT | ModelPost Driver Rubber Bushings Kit (4-PC) | Mount | Weight12 lbs |
| Part Number | ModelWire harness required for tilt unit only. Host machine must case drain. | Mount | Weight |
