Parts Book
103712
Revision: 000
| Ref | Item | Qty Per | Price | Stock | Qty | |
|---|---|---|---|---|---|---|
| Ref: 2 |
|
Item: | Qty Per: 1 |
Price:
$40.05
|
Stock:
In Stock
|
Qty: |
| Ref: 1 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 3 |
|
Item:

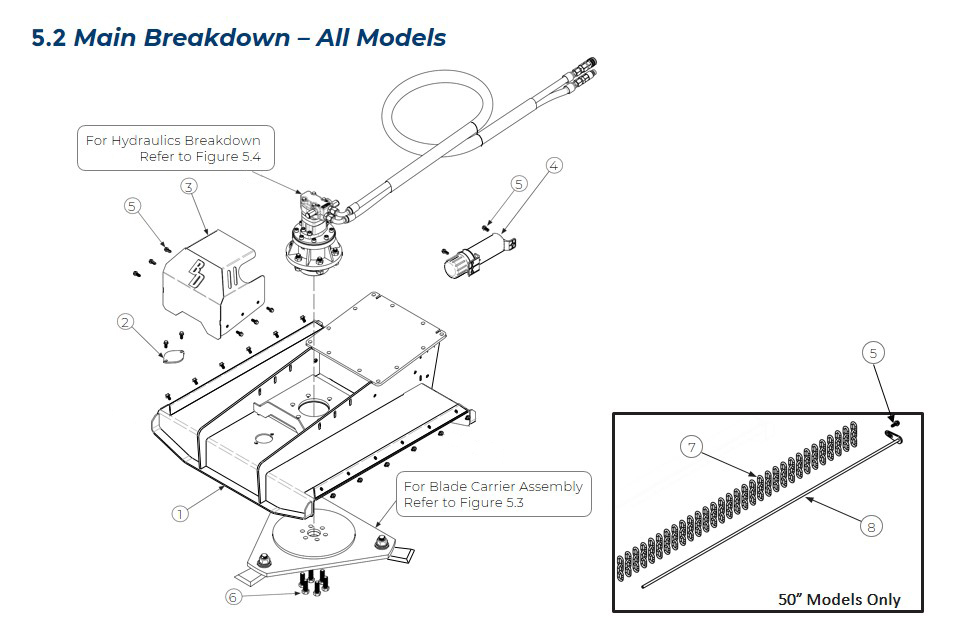

203685 - BRUSH CUTTER MINI EXCAVATOR HEAVY DUTY MOTOR COVER (FITS 36", 42", & 50" MODELS) Units manufactured before 2019 had no motor cover. Modify at your own risk |
Qty Per: 1 |
Price:
$453.22
|
Stock:
Low Stock
|
Qty: |
| Ref: 10 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 4 |
|
Item: | Qty Per: 1 |
Price:
$24.53
|
Stock:
In Stock
|
Qty: |
| Ref: 18 | Item: | Qty Per: 6 | Price: N/A | Stock: Unavailable |
||
| Ref: 5 |
|
Item: | Qty Per: 12 |
Price:
$4.02
|
Stock:
In Stock
|
Qty: |
| Ref: 22 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 6 |
|
Item:
299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2" Units made 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655 |
Qty Per: 6 |
Price:
$15.39
|
Stock:
In Stock
|
Qty: |
| Ref: 30 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 7 |
|
Item: | Qty Per: 62 |
Price:
$20.07
|
Stock:
In Stock
|
Qty: |
| Ref: 34 | Item: | Qty Per: 2 | Price: N/A | Stock: Unavailable |
||
| Ref: 8 |
|
Item: | Qty Per: 2 |
Price:
$130.74
|
Stock:
Low Stock
|
Qty: |
| Ref: 35 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 9 |
|
Item: | Qty Per: 1 |
Price:
$460.75
|
Stock:
In Stock
|
Qty: |
| Ref: 36 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 11 |
|
Item: | Qty Per: 3 |
Price:
$46.32
|
Stock:
In Stock
|
Qty: |
| Ref: 37 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 12 |
|
Item: | Qty Per: 3 |
Price:
$20.81
|
Stock:
In Stock
|
Qty: |
| Ref: 38 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 13 |
|
Item:

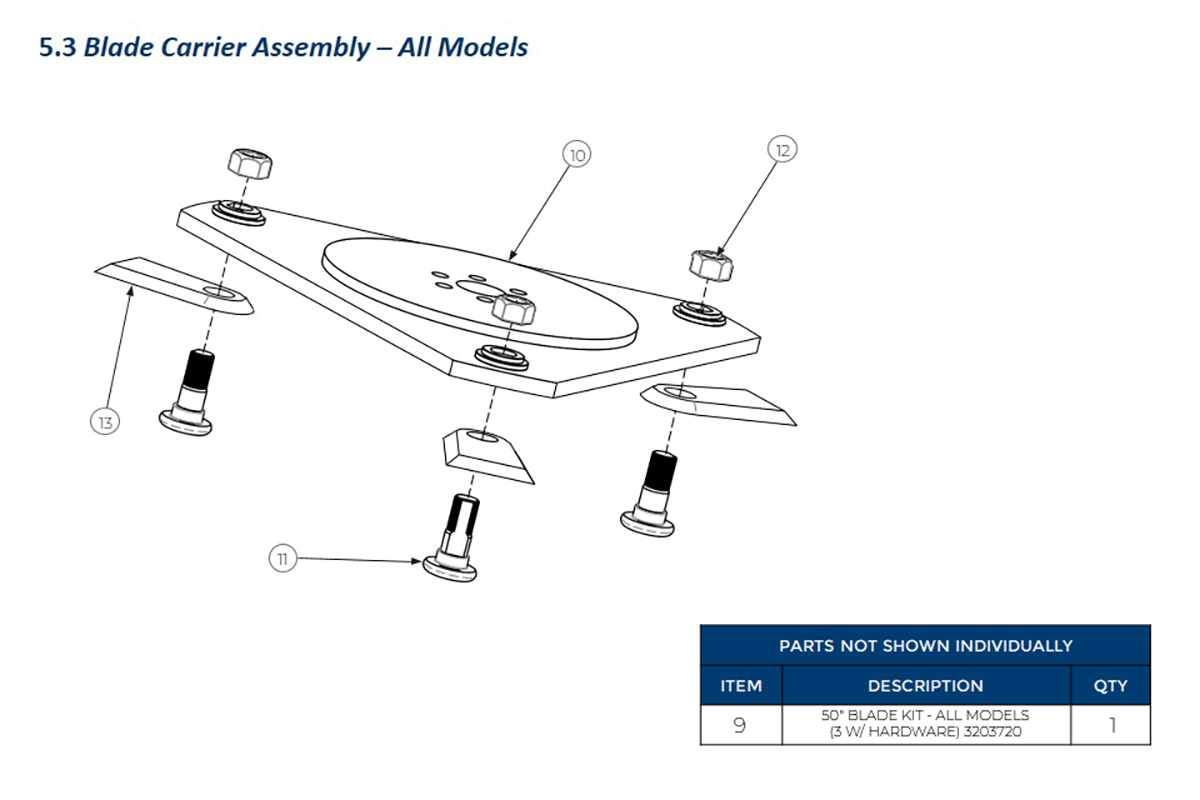

203720 - BRUSH CUTTER, MINI-EX, 50", BLADE For full kit, use 203720-KIT |
Qty Per: 3 |
Price:
$120.29
|
Stock:
In Stock
|
Qty: |
| Ref: 39 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 14 |
|
Item:

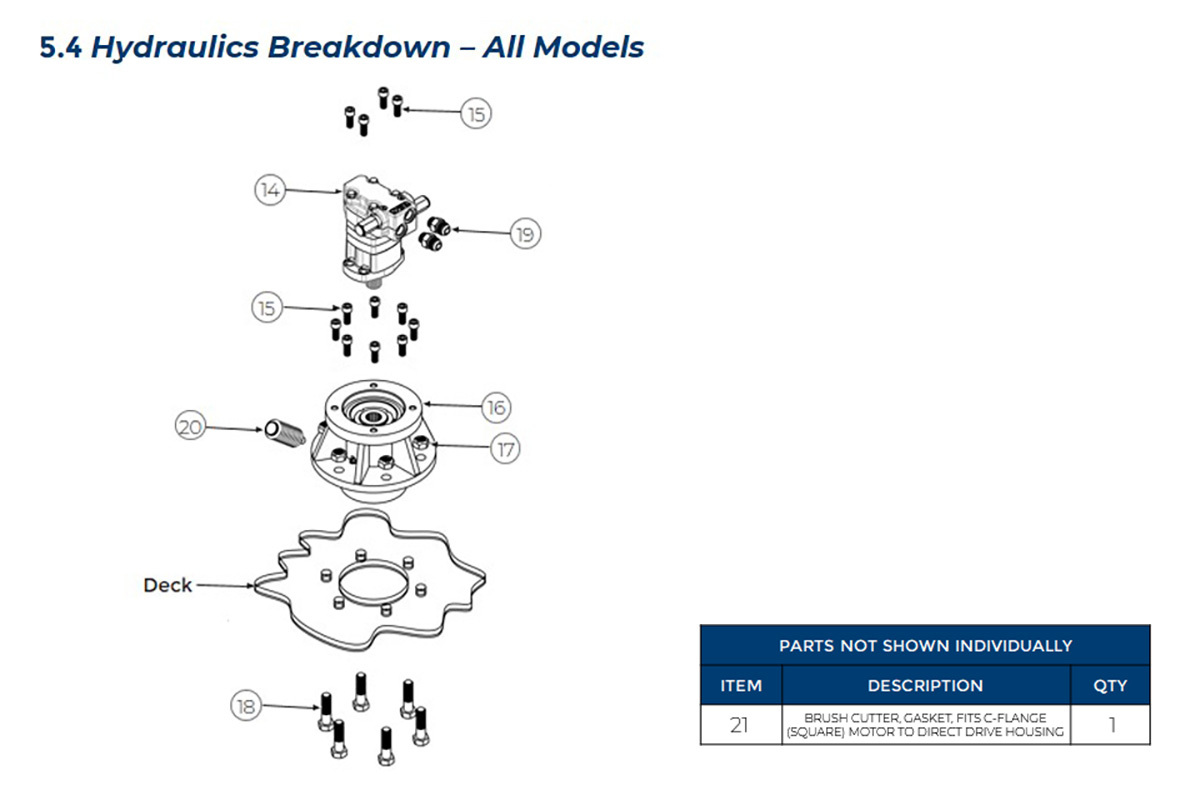

203763 - BRUSH CUTTER, MOTOR, 100CC C-FLANGE, WITH CROSSPORT RELIEF VALVE 2018 and older units with magneto (oval) motor flange use 203710 |
Qty Per: 1 |
Price:
$1,748.00
|
Stock:
In Stock
|
Qty: |
| Ref: 40 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 15 |
|
Item:
299433 - BOLT GRADE 8 HEX HEAD 1/2"-13 X 2" Units manufactured 2017 and older use 203167 |
Qty Per: 4 |
Price:
$7.27
|
Stock:
In Stock
|
Qty: |
| Ref: 41 | Item: | Qty Per: 2 | Price: N/A | Stock: Unavailable |
||
| Ref: 16 |
|
Item:
203629 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, SMALL 2.36" SPINDLE Rev 002 use 203622, Units made prior to 2019, use 203073. If your unit has a magneto motor (oval flange), you will also need to replace the motor. |
Qty Per: 1 |
Price:
$1,991.00
|
Stock:
In Stock
|
Qty: |
| Ref: 42 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 17 |
|
Item: | Qty Per: 6 |
Price:
$3.26
|
Stock:
In Stock
|
Qty: |
| Ref: 43 | Item: | Qty Per: 2 | Price: N/A | Stock: Unavailable |
||
| Ref: 19 |
|
Item: | Qty Per: 4 |
Price:
$11.63
|
Stock:
In Stock
|
Qty: |
| Ref: 20 |
|
Item: | Qty Per: 1 |
Price:
$61.09
|
Stock:
In Stock
|
Qty: |
| Ref: 21 |
|
Item:
203775 - BRUSH CUTTER, GASKET, FITS C-FLANGE (SQUARE) MOTOR TO DIRECT DRIVE HOUSING Units manufactured before 2018 with oval motor flange use 203152, 203150, 203151 |
Qty Per: 1 |
Price:
$41.51
|
Stock:
Limited Stock - Call for Availability
|
Qty: |
| Ref: 23 |
|
Item:

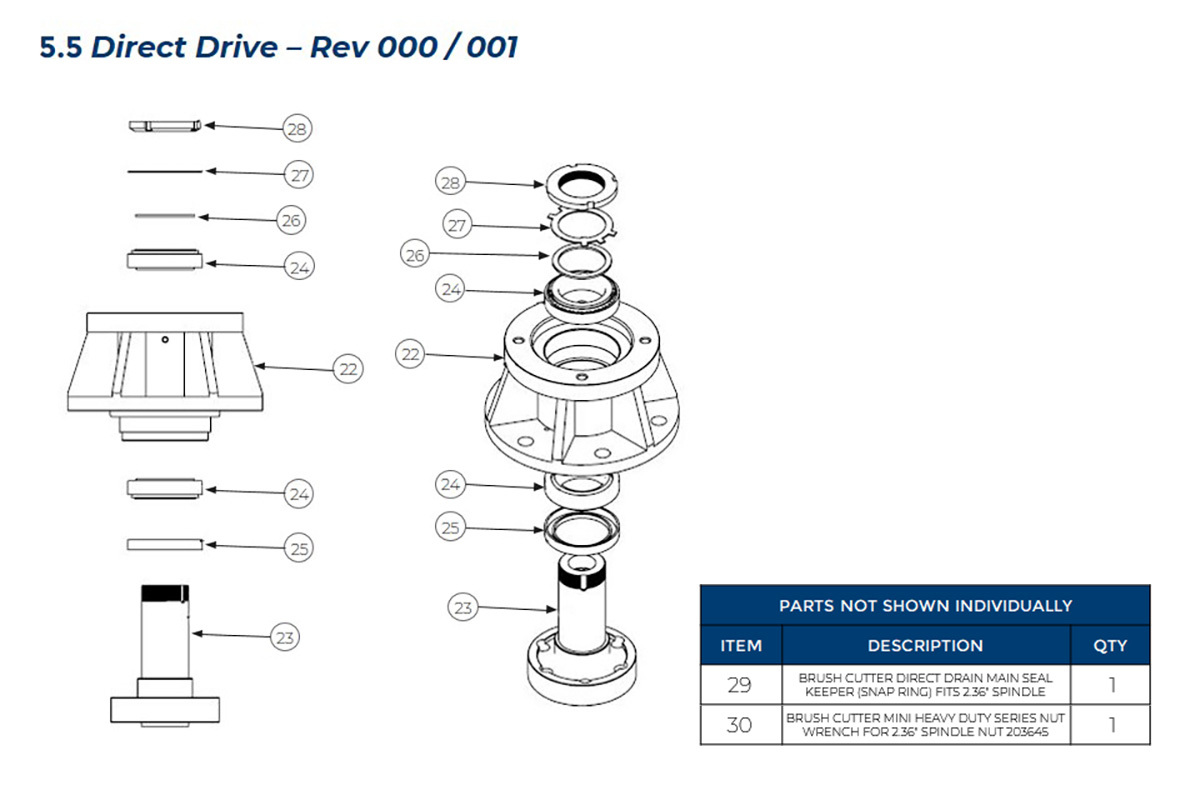

203632 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY, 2.36" DIAMETER Units made between 2014 & 2019 with large tapered spindle, use 203068. 10 bolt straight spindle units made before 2014 use 203064 |
Qty Per: 1 |
Price:
$1,126.00
|
Stock:
Low Stock
|
Qty: |
| Ref: 24 |
|
Item:
203635 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE, FITS 2.36" SPINDLE Units made between 2014 & 2019 with large tapered spindle, use 203074 & 203075. 10 bolt straight spindle units made before 2014 use 203075 (2x) |
Qty Per: 2 |
Price:
$133.85
|
Stock:
In Stock
|
Qty: |
| Ref: 25 |
|
Item:
203638 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, FITS 2.36" SPINDLE Units made between 2014 & 2019 with large tapered spindle, use 203086. 10 bolt straight spindle units made before 2014, use 203085 |
Qty Per: 1 |
Price:
$73.51
|
Stock:
In Stock
|
Qty: |
| Ref: 26 |
|
Item:
203640 - BRUSH CUTTER DIRECT DRIVE WASHER, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203100 |
Qty Per: 1 |
Price:
$8.10
|
Stock:
In Stock
|
Qty: |
| Ref: 27 |
|
Item:
203642 - BRUSH CUTTER DIRECT DRIVE LOCK WASHER, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203095 |
Qty Per: 1 |
Price:
$8.10
|
Stock:
In Stock
|
Qty: |
| Ref: 28 |
|
Item:
203645 - BRUSH CUTTER DIRECT DRIVE NUT, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203100 & 203105 |
Qty Per: 1 |
Price:
$34.63
|
Stock:
In Stock
|
Qty: |
| Ref: 29 |
|
Item:
203639 - BRUSH CUTTER DIRECT DRAIN MAIN SEAL KEEPER (SNAP RING) FITS 2.36" SPINDLE Units made between 2014 & 2019 with large tapered spindle, use 203087 |
Qty Per: 1 |
Price:
$10.60
|
Stock:
In Stock
|
Qty: |
| Ref: 31 |
|
Item: | Qty Per: 1 |
Price:
$668.27
|
Stock:
Low Stock
|
Qty: |
| Ref: 32 |
|
Item: | Qty Per: 1 |
Price:
$77.80
|
Stock:
In Stock
|
Qty: |
| Ref: 33 |
|
Item: | Qty Per: 1 |
Price:
$92.97
|
Stock:
In Stock
|
Qty: |
