Parts Book
103725-25
Revision: 000
| Ref | Item | Qty Per | Price | Stock | Qty | |
|---|---|---|---|---|---|---|

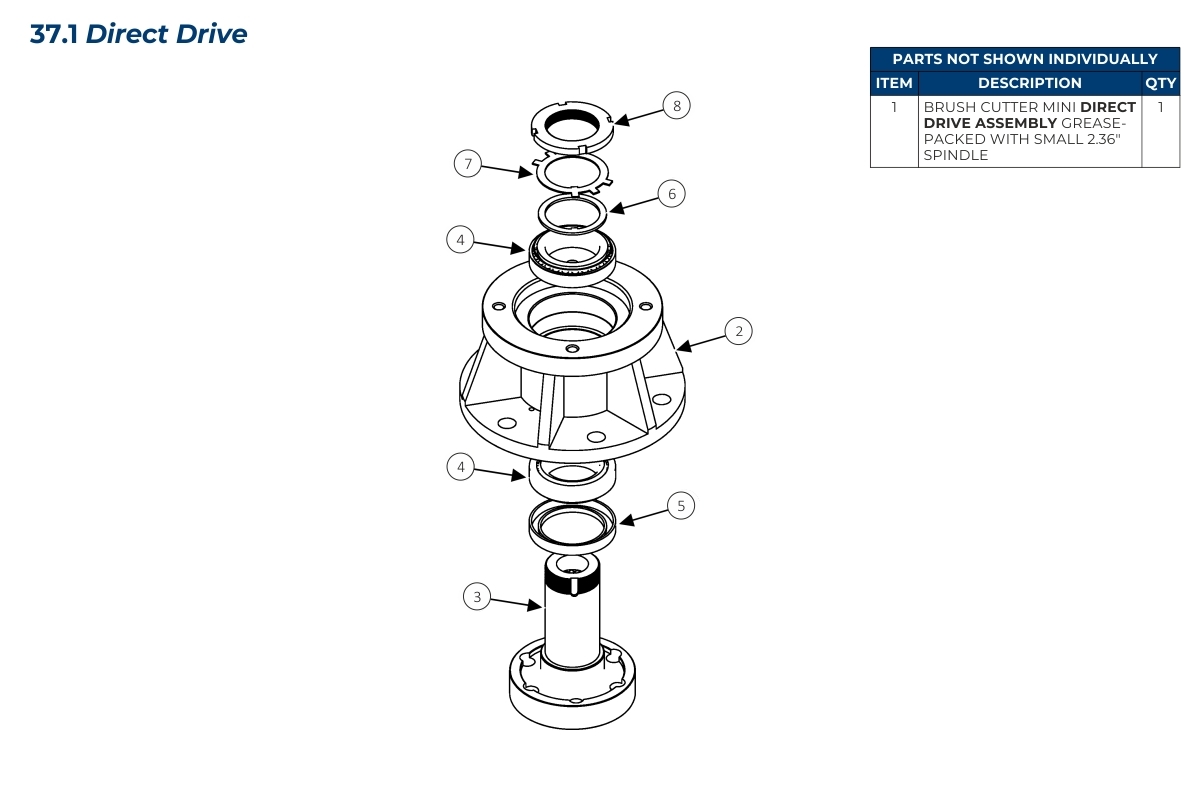

| Ref: 1 |
|
Item:
203629 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, SMALL 2.36" SPINDLE Includes Items 2 to 8 Units made prior to 2017-2019, use 203073. If your unit was built 2017 and olrder and has a magneto motor (oval flange), you will also need to replace the motor. |
Qty Per: 1 |
Price:
$1,991.00
|
Stock:
In Stock
|
Qty: |
| Ref: 2 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 3 |
|
Item:
203632 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY, 2.36" DIAMETER Units made between 2014 & 2019 with large tapered spindle, use 203068. 10 bolt straight spindle units made before 2014 use 203064 |
Qty Per: 1 |
Price:
$1,126.00
|
Stock:
Low Stock
|
Qty: |
| Ref: 9 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 4 |
|
Item:
203635 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE, FITS 2.36" SPINDLE Units made between 2014 & 2019 with large tapered spindle, use 203074 & 203075. 10 bolt straight spindle units made before 2014 use 203075 (2x) |
Qty Per: 2 |
Price:
$133.85
|
Stock:
In Stock
|
Qty: |
| Ref: 17 | Item: | Qty Per: 4 | Price: N/A | Stock: Unavailable |
||
| Ref: 5 |
|
Item:
203638 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, FITS 2.36" SPINDLE Units made between 2014 & 2019 with large tapered spindle, use 203086. 10 bolt straight spindle units made before 2014, use 203085 |
Qty Per: 1 |
Price:
$73.51
|
Stock:
In Stock
|
Qty: |
| Ref: 19 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 6 |
|
Item:
203640 - BRUSH CUTTER DIRECT DRIVE WASHER, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203100 |
Qty Per: 1 |
Price:
$8.10
|
Stock:
In Stock
|
Qty: |
| Ref: 29 | Item: | Qty Per: 4 | Price: N/A | Stock: Unavailable |
||
| Ref: 7 |
|
Item:
203642 - BRUSH CUTTER DIRECT DRIVE LOCK WASHER, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203095 |
Qty Per: 1 |
Price:
$8.10
|
Stock:
In Stock
|
Qty: |
| Ref: 30 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 8 |
|
Item:
203645 - BRUSH CUTTER DIRECT DRIVE NUT, FITS 2.36" SPINDLE Units made before 2019 with 10 bolts to the blade carrier, use 203100 & 203105 |
Qty Per: 1 |
Price:
$34.63
|
Stock:
In Stock
|
Qty: |
| Ref: 31 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 10 |
|
Item: | Qty Per: 6 |
Price:
$4.02
|
Stock:
In Stock
|
Qty: |
| Ref: 32 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 11 |
|
Item: | Qty Per: 1 |
Price:
$40.05
|
Stock:
In Stock
|
Qty: |
| Ref: 33 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 12 |
|
Item:
203678 - BRUSH CUTTER 42" MINI 6-BOLT BLADE CARRIER For units made prior to 2019 with 10-bolt blade carrier hole pattern, use 203626 (3/4" spindle bolts) or 203625 (1/2" spindle bolts) |
Qty Per: 1 |
Price:
$826.84
|
Stock:
Low Stock
|
Qty: |
| Ref: 34 | Item: | Qty Per: 3 | Price: N/A | Stock: Unavailable |
||
| Ref: 13 |
|
Item: | Qty Per: 3 |
Price:
$46.32
|
Stock:
In Stock
|
Qty: |
| Ref: 35 | Item: | Qty Per: 1 | Price: N/A | Stock: Unavailable |
||
| Ref: 14 |
|
Item:
203670 - BRUSH CUTTER, MINI-EX BLADE FOR 42" (FITS 3 BLADE STYLE CARRIER) For full kit, use 203620-KIT |
Qty Per: 3 |
Price:
$110.85
|
Stock:
In Stock
|
Qty: |
| Ref: 36 | Item: | Qty Per: 2 | Price: N/A | Stock: Unavailable |
||
| Ref: 15 |
|
Item:
299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2" Units made 2016-2018 use 10. 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655 |
Qty Per: 6 |
Price:
$15.39
|
Stock:
In Stock
|
Qty: |
| Ref: 16 |
|
Item: | Qty Per: 3 |
Price:
$20.81
|
Stock:
In Stock
|
Qty: |
| Ref: 18 |
|
Item: | Qty Per: 46 |
Price:
$20.07
|
Stock:
In Stock
|
Qty: |
| Ref: 20 |
|
Item:
203760 - BRUSH CUTTER, MOTOR, 80CC C-FLANGE, WITH CROSSPORT RELIEF VALVE (203770 BLOCK) Rev 001 & 002 use 203790. 2018 and older units with magneto (oval) motor use 203715 |
Qty Per: 1 |
Price:
$1,757.00
|
Stock:
In Stock
|
Qty: |
| Ref: 21 |
|
Item: | Qty Per: 1 |
Price:
$452.39
|
Stock:
In Stock
|
Qty: |
| Ref: 22 |
|
Item: | Qty Per: 2 |
Price:
$11.63
|
Stock:
In Stock
|
Qty: |
| Ref: 23 |
|
Item: | Qty Per: 1 |
Price:
$885.90
|
Stock:
In Stock
|
Qty: |
| Ref: 24 |
|
Item: | Qty Per: 2 |
Price:
$185.86
|
Stock:
In Stock
|
Qty: |
| Ref: 25 |
|
Item:
203916 - BRUSH CUTTER, SMALL CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE Units manufactured before 2014 with integrated relief valves do not have replacement seals available |
Qty Per: 2 |
Price:
$13.81
|
Stock:
In Stock
|
Qty: |
| Ref: 26 |
|
Item:
203917 - BRUSH CUTTER, LARGE CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE Units manufactured before 2014 with integrated relief valves do not have replacement seals available |
Qty Per: 2 |
Price:
$18.02
|
Stock:
In Stock
|
Qty: |
| Ref: 27 |
|
Item:
203919 - BRUSH CUTTER SPLIT TEFLON CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE Units manufactured before 2014 with integrated relief valves do not have replacement seals available |
Qty Per: 2 |
Price:
$1.41
|
Stock:
In Stock
|
Qty: |
| Ref: 28 |
|
Item:
203908 - BRUSH CUTTER, RELIEF BLOCK, WHITE O-RING For units manufactured before 4/17/2024 only (203760 or 203715 motor) |
Qty Per: 2 |
Price:
$23.18
|
Stock:
In Stock
|
Qty: |
