Parts Book

103735-35

Revision: 000
Ref Item Qty Per Price Stock Qty
Ref: 1 Item:

203629 - BRUSH CUTTER, DIRECT DRIVE ASSEMBLY, SMALL 2.36" SPINDLE

Includes Items 2 to 8 Units made prior to 2017-2019, use 203073. If your unit was built 2017 and olrder and has a magneto motor (oval flange), you will also need to replace the motor.

Qty Per: 1 Price:
$1,991.00
Stock:
In Stock
Qty:
Ref: 2 Item:

203630 - BRUSH CUTTER, DIRECT DRIVE, HOUSING ONLY

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 3 Item:

203632 - BRUSH CUTTER DIRECT DRIVE SPINDLE ONLY, 2.36" DIAMETER

Units made between 2014 & 2019 with large tapered spindle, use 203068. 10 bolt straight spindle units made before 2014 use 203064

Qty Per: 1 Price:
$1,126.00
Stock:
Low Stock
Qty:
Ref: 9 Item:

— - BRUSH CUTTER, MINI SKID STEER, CLOSED FRONT 50" DECK WELDMENT 80CC 13-20 GPM AVANT MOUNT

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 4 Item:

203635 - BRUSH CUTTER DIRECT DRIVE LOWER BEARING & RACE, FITS 2.36" SPINDLE

Units made between 2014 & 2019 with large tapered spindle, use 203074 & 203075. 10 bolt straight spindle units made before 2014 use 203075 (2x)

Qty Per: 2 Price:
$133.85
Stock:
In Stock
Qty:
Ref: 12 Item:

203723 - BRUSH CUTTER 50" MINI 6-BOLT BLADE CARRIER

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 5 Item:

203638 - BRUSH CUTTER DIRECT DRIVE MAIN SEAL, FITS 2.36" SPINDLE

Units made between 2014 & 2019 with large tapered spindle, use 203086. 10 bolt straight spindle units made before 2014, use 203085

Qty Per: 1 Price:
$73.51
Stock:
In Stock
Qty:
Ref: 17 Item:

— - CHAIN ROD LOCK

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 6 Item:

203640 - BRUSH CUTTER DIRECT DRIVE WASHER, FITS 2.36" SPINDLE

Units made before 2019 with 10 bolts to the blade carrier, use 203100

Qty Per: 1 Price:
$8.10
Stock:
In Stock
Qty:

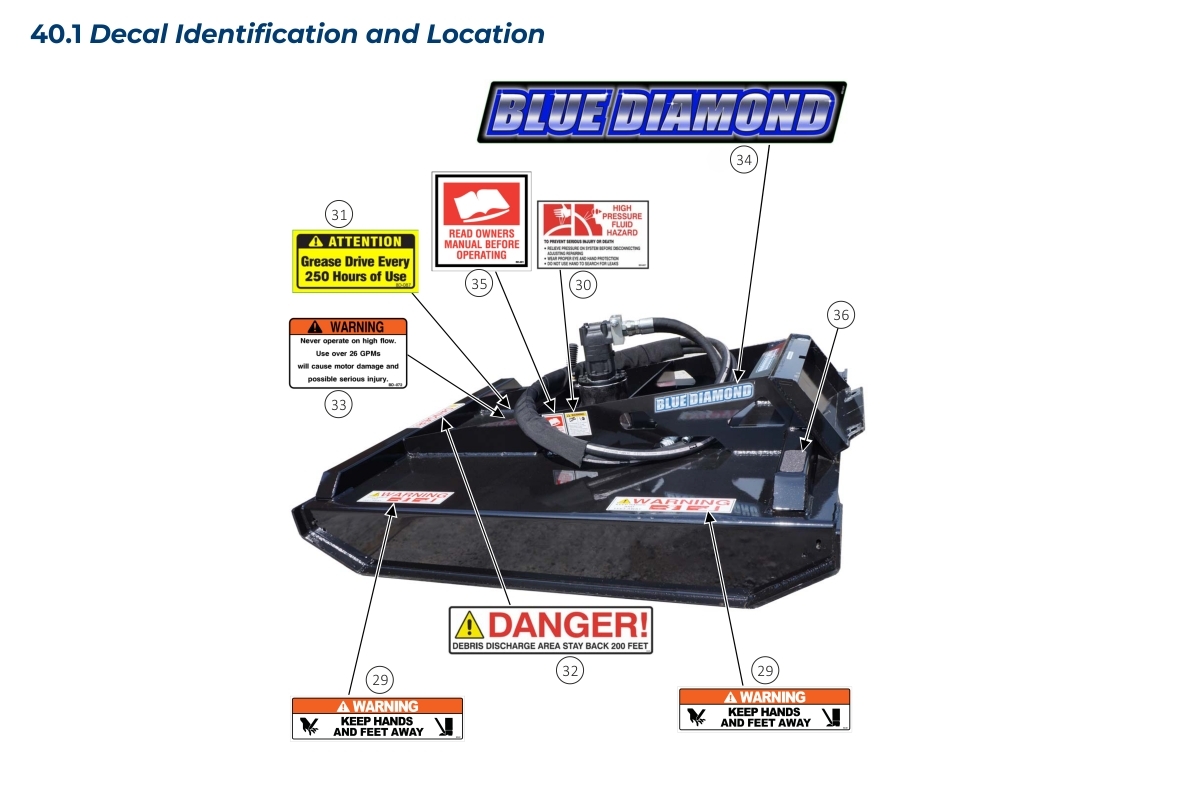

Ref: 29 Item:

BD-081 - DECAL, WARNING Keep Hands and Feet Away 3"x12"

 Qty Per: 4 Price: N/A Stock:
Unavailable
Ref: 7 Item:

203642 - BRUSH CUTTER DIRECT DRIVE LOCK WASHER, FITS 2.36" SPINDLE

Units made before 2019 with 10 bolts to the blade carrier, use 203095

Qty Per: 1 Price:
$8.10
Stock:
In Stock
Qty:
Ref: 30 Item:

BD-007 - DECAL, HIGH PRESSURE FLUID HAZARD 3.0 X 4.75

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 8 Item:

203645 - BRUSH CUTTER DIRECT DRIVE NUT, FITS 2.36" SPINDLE

Units made before 2019 with 10 bolts to the blade carrier, use 203100 & 203105

Qty Per: 1 Price:
$34.63
Stock:
In Stock
Qty:
Ref: 31 Item:

BD-087 - DECAL - ATTENTION GREASE DRIVE EVERY 250 HOURS OF USE

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 10 Item:

203006 - BRUSH CUTTER BOLT FOR DEFLECTOR, INSPECTION COVER, CHAIN RETAINER, MOTOR COVER

 Qty Per: 6 Price:
$4.02
Stock:
In Stock
Qty:
Ref: 32 Item:

BD-055 - DECAL, DANGER DEBRIS DISCHARGE AREA STAY BACK 200 FEET 3.0 X 11.9062

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 11 Item:

203008 - BRUSH CUTTER INSPECTION COVER

 Qty Per: 1 Price:
$40.05
Stock:
In Stock
Qty:
Ref: 33 Item:

BD-072 - DECAL, WARNING - USE OVER 26 GPMs; 2.5 X 4.0

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 13 Item:

203035 - BRUSH CUTTER BLADE BOLT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$46.32
Stock:
In Stock
Qty:
Ref: 34 Item:

BD-057 - DECAL, BLUE DIAMOND 2.9' X 17.364' (LRG)

 Qty Per: 3 Price: N/A Stock:
Unavailable
Ref: 14 Item:

203720 - BRUSH CUTTER, MINI-EX, 50", BLADE

For full kit, use 203620-KIT

Qty Per: 3 Price:
$120.29
Stock:
In Stock
Qty:
Ref: 35 Item:

BD-001 - DECAL, READ OWNERS MANUAL 3x3

 Qty Per: 1 Price: N/A Stock:
Unavailable
Ref: 15 Item:

299454 - BOLT GRADE 8 HEX HEAD 3/4"-10 X 2"

Units made 2016-2018 use 10. 2016 & earlier with 1/2" blade carrier bolts use 203062 and 299655

Qty Per: 6 Price:
$15.39
Stock:
In Stock
Qty:
Ref: 36 Item:

— - GRIP TAPE

 Qty Per: 2 Price: N/A Stock:
Unavailable
Ref: 16 Item:

203030 - BRUSH CUTTER BLADE NUT FITS ALL SKID STEER MINI SKID MINI EX MODELS

 Qty Per: 3 Price:
$20.81
Stock:
In Stock
Qty:
Ref: 18 Item:

203600 - BRUSH CUTTER MINI-EX/MINI SKID STEER 3 LINK DISCHARGE CHAIN (36" req pc, 42" req 54, 50" requires )

 Qty Per: 46 Price:
$20.07
Stock:
In Stock
Qty:
Ref: 19 Item:

203695 - BRUSH CUTTER, MINI-EX, 50", CHAIN RETAINER BAR

 Qty Per: 1 Price:
$130.74
Stock:
Low Stock
Qty:
Ref: 20 Item:

203760 - BRUSH CUTTER, MOTOR, 80CC C-FLANGE, WITH CROSSPORT RELIEF VALVE (203770 BLOCK)

Rev 001 & 002 use 203790. 2018 and older units with magneto (oval) motor use 203715

Qty Per: 1 Price:
$1,757.00
Stock:
In Stock
Qty:
Ref: 21 Item:

203720-KIT - 50" BLADE KIT - ALL 3-BLADE MODELS (3 W/ HARDWARE) 3203720

 Qty Per: 1 Price:
$460.75
Stock:
In Stock
Qty:
Ref: 22 Item:

295010-M12JIC-M12ORB - HYDRAULIC STRAIGHT FITTING MALE #12 JIC X MALE #12 ORING BOSS

 Qty Per: 2 Price:
$11.63
Stock:
In Stock
Qty:
Ref: 23 Item:

203770 - BRUSH CUTTER, CROSS PORT RELIEF VALVE BLOCK, FITS STANDARD FLOW MOTORS

 Qty Per: 1 Price:
$885.90
Stock:
In Stock
Qty:
Ref: 24 Item:

203136-1 - BRUSH CUTTER VALVE CARTRIDGE FOR RELIEF BLOCK VALVE ON ALL SS & EXCAVATOR HEAVY & EXTREME DUTY STANDARD FLOW BRUSH CUTTER MOTORS

 Qty Per: 2 Price:
$185.86
Stock:
In Stock
Qty:
Ref: 25 Item:

203916 - BRUSH CUTTER, SMALL CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$13.81
Stock:
In Stock
Qty:
Ref: 26 Item:

203917 - BRUSH CUTTER, LARGE CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$18.02
Stock:
In Stock
Qty:
Ref: 27 Item:

203919 - BRUSH CUTTER SPLIT TEFLON CARTRIDGE O-RING FOR STANDARD FLOW RELIEF VALVE

Units manufactured before 2014 with integrated relief valves do not have replacement seals available

Qty Per: 2 Price:
$1.41
Stock:
In Stock
Qty:
Ref: 28 Item:

203908 - BRUSH CUTTER, RELIEF BLOCK, WHITE O-RING

For units manufactured before 4/17/2024 only (203760 or 203715 motor)

Qty Per: 2 Price:
$23.18
Stock:
In Stock
Qty:
